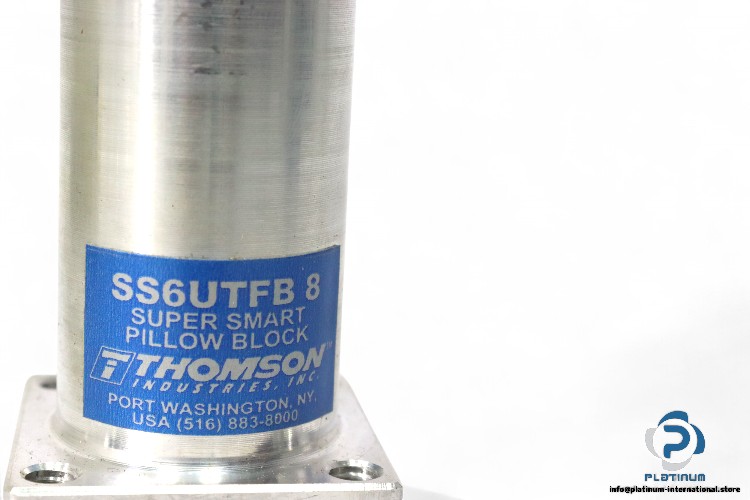

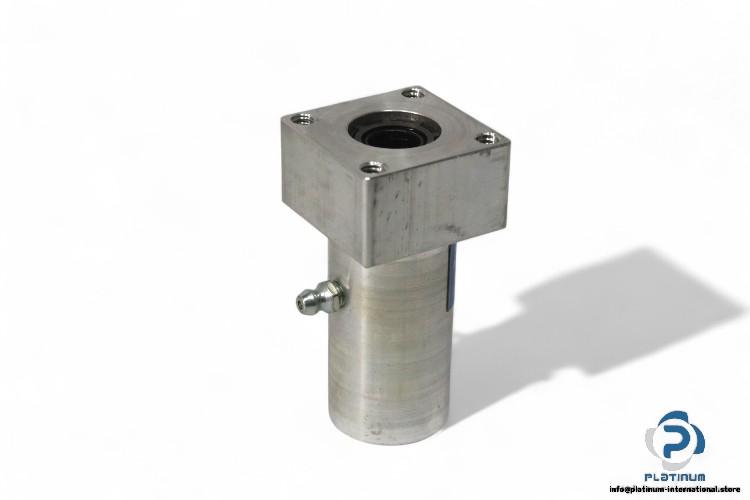

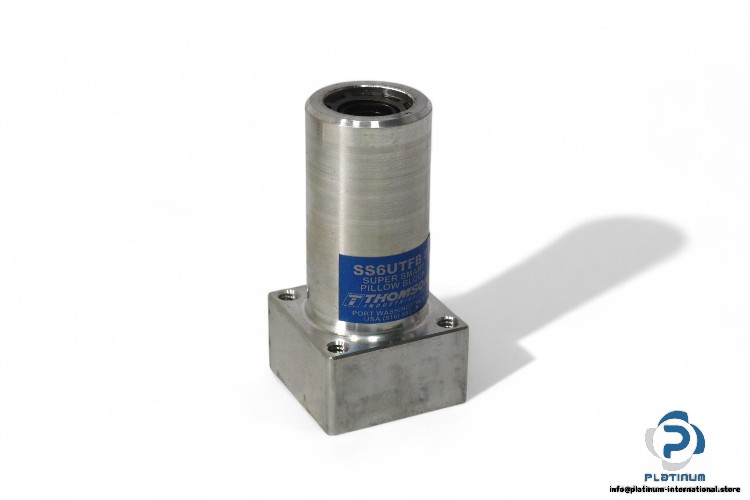

Thomson SS6UTFB 8 Linear Ball Bushing

Name: THOMSON SS6UTFB 8 LINEAR BALL BUSHING
SKU: 1057518
Availability: LimitedAvailability

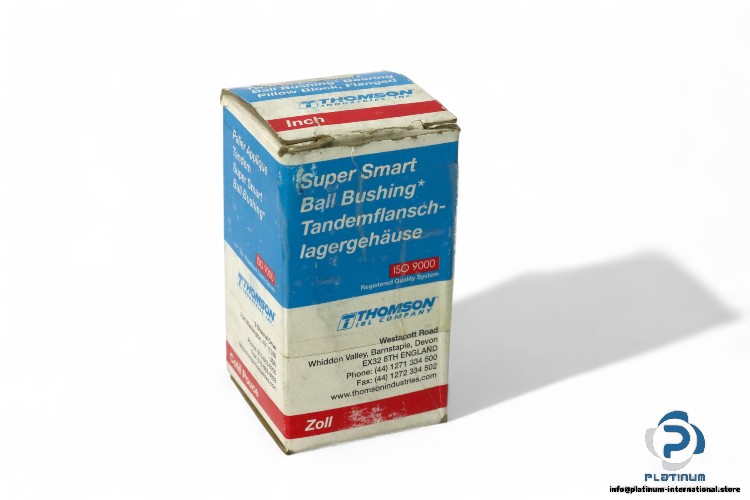

thomson-SS6UTFB-8-linear-ball-bushing-(new)-carton

thomson-SS6UTFB-8-linear-ball-bushing-(new)-carton-1

thomson-SS6UTFB-8-linear-ball-bushing-(new)-carton-2

thomson-SS6UTFB-8-linear-ball-bushing-(new)-carton-3

thomson-SS6UTFB-8-linear-ball-bushing-(new)-carton-4

New

In stock2 unitsReady to ship

Type: LINEAR BALL BUSHING (SUPER SMART) Model: SS6UTFB 8

Manufacturer:

Thomson

Manufacturer

THOMSON

SKU

1057518

Category

Shaft Guiding & Linear Ball Bushings

Condition

New

12.70 Ball bearings Bushings Guiding Linear mm Motion shaft Thomson

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: Thomson
Type: LINEAR BALL BUSHING (SUPER SMART)
Model: SS6UTFB 8

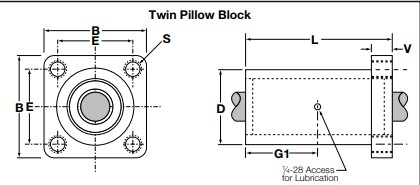

Type: Flanged Twin Pillow Block
Dimensions:
Shaft diameter: 12.70 mm (0.500 in)
Outer diameter D: 31.75 mm (1.250 in)
Length: 81.28 mm (3.200 in)
B: 41.40 mm (1.630 in)
V: 22.86 mm (0.900 in)
G1: 37.59 mm (1.480 in)
S: 6.35 mm (0.250 in)
Dynamic Load Capacity: 530 lbf (2,357.56 N)
