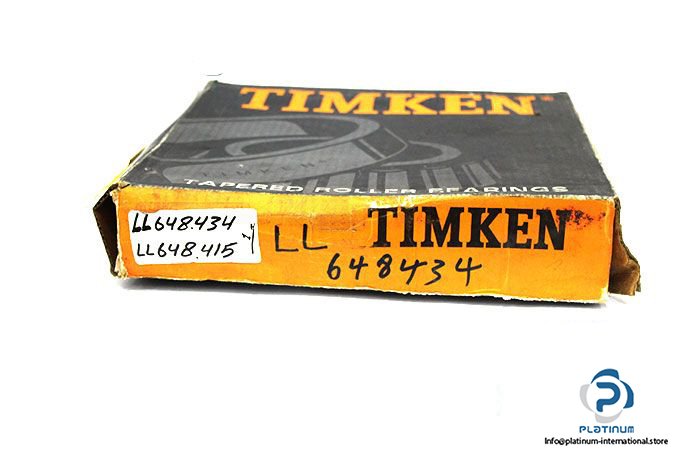

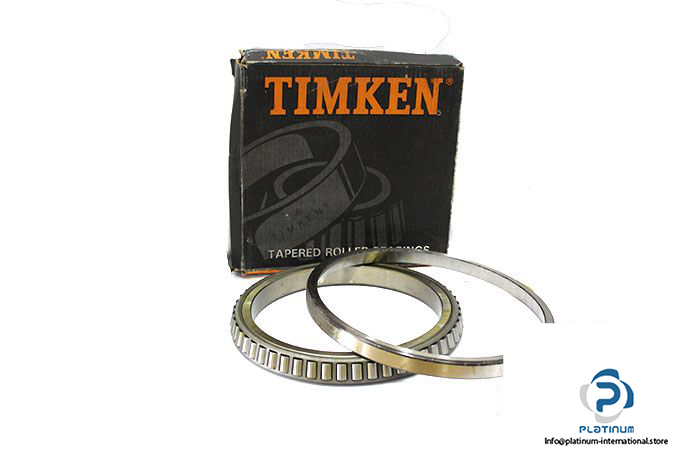

Timken LL648434 – LL648415 Tapered Roller Bearing
Manufacturer: Timken
Type: Tapered Roller Bearing
Part No: LL648434 – LL648415

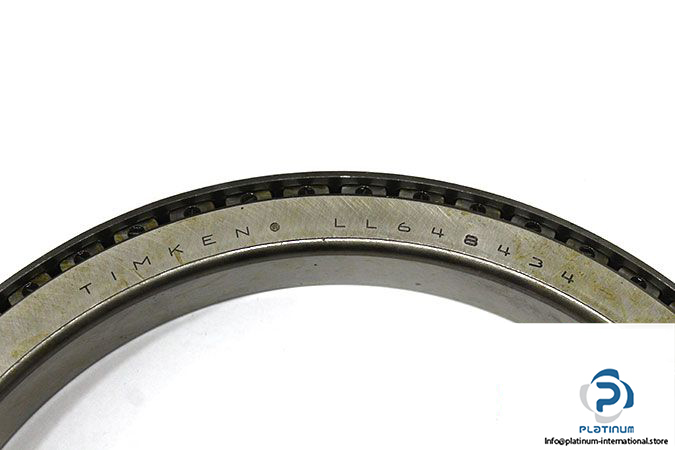

Cone: LL648434

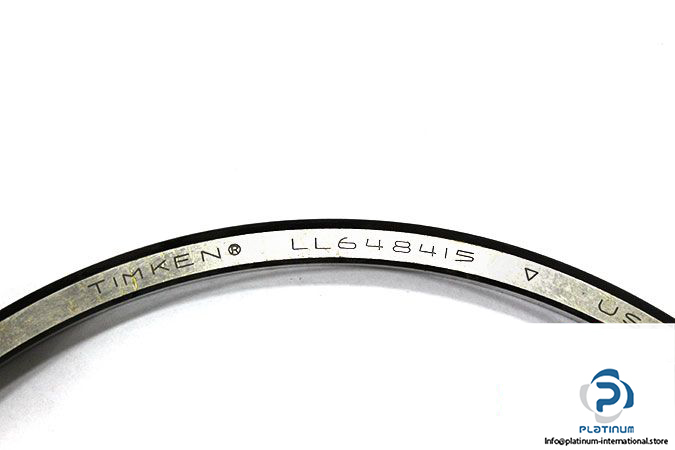

Cup: LL648415
Design Units: Imperial
Bore Diameter: 243.68 mm; 9.59 inch
Outer diameter: 315.91 mm; 12.43 inch
Width: 31.75 mm; 1.25 inch
C90 – Dynamic Radial Rating (90 million revolutions)4: 70000 N
C1 – Dynamic Radial Rating (1 million revolutions)5: 270000 N
C0 – Static Radial Rating: 561000 N
Ca90 – Dynamic Thrust Rating (90 million revolutions)6: 51500 N
Cage Type: Stamped Steel
Weight: 6.1 kg
