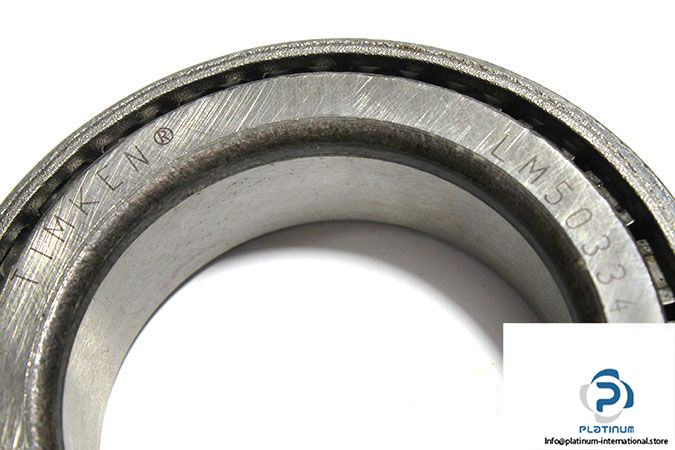

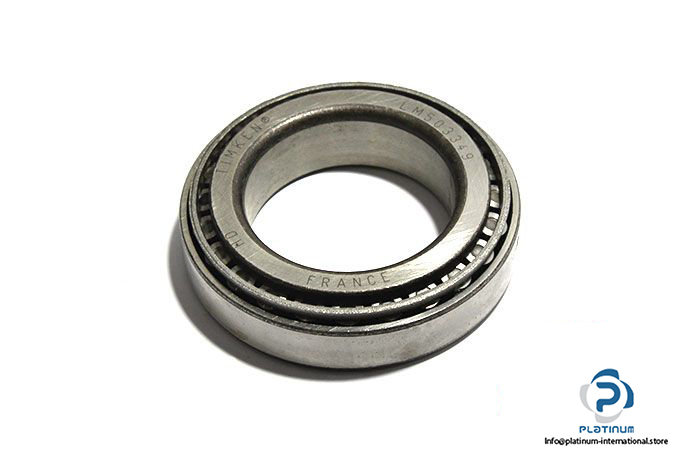

Timken LM503349-LM503310 Tapered Roller Bearing
Manufacturer: TIMKEN
Type: Tapered Roller Bearing
Model: LM503349 – LM503310
Cone Part Number: LM503349
Cup Part Number: LM503310
Design Unit: Inch

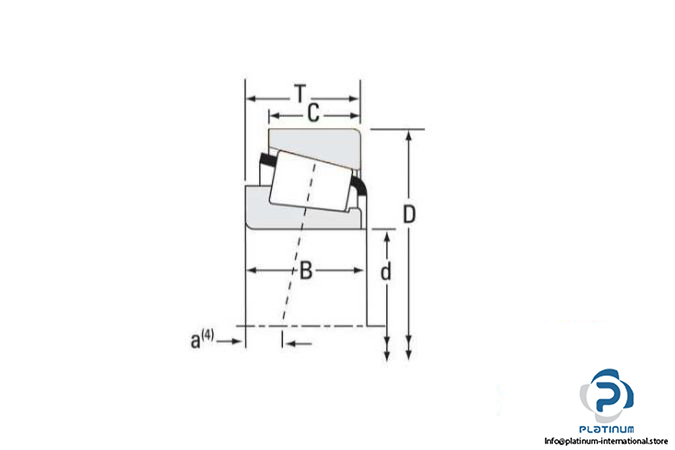

Bore Diameter d: 45.98 mm; 1.81 inch
Outer diameter D: 74.97 mm; 2.95 inch
Width T: 18 mm; 0.70 inch
C90 – Dynamic Radial Rating (90 million revolutions): 17500 N
C1 – Dynamic Radial Rating (1 million revolutions): 67400 N
C0 – Static Radial Rating: 75400 N
Ca90 – Dynamic Thrust Rating (90 million revolutions): 12000 N
Cage Material: Stamped Steel
Weight: 0.30 kg
