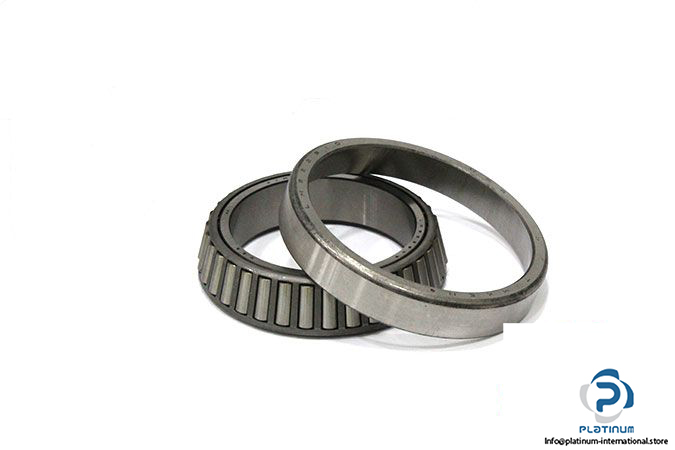

Timken LM522549 – LM522510 Tapered Roller Bearing
Manufacturer: Timken
Type: Tapered Roller Bearing
Part No: LM522549 – LM522510

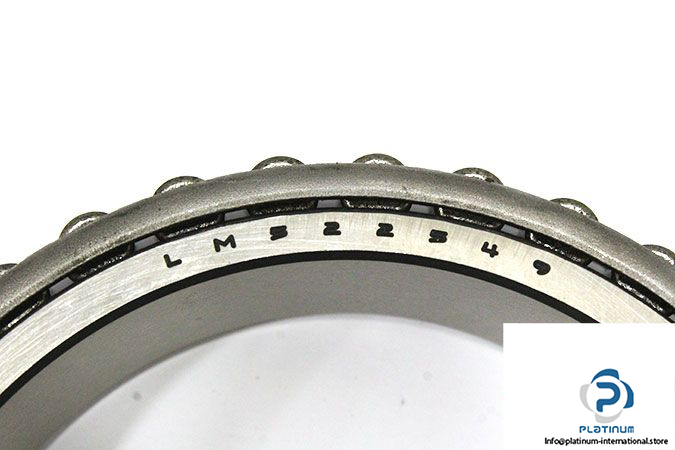

Cone: LM522549

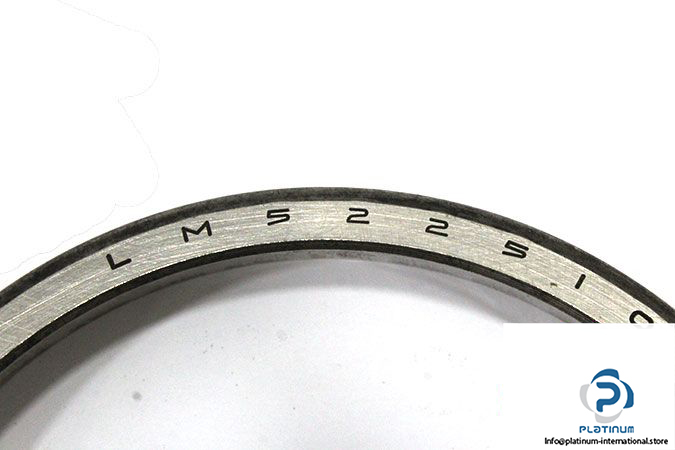

Cup: LM522510
Design Units: Imperial
Bore Diameter: 109.98 mm; 4.33 inch
Outer diameter: 159.98 mm; 6.29 inch
Width: 34.92 mm; 1.37 inch
C90 – Dynamic Radial Rating (90 million revolutions)4: 60100 N
C1 – Dynamic Radial Rating (1 million revolutions)5: 232000 N
C0 – Static Radial Rating: 357000 N
Ca90 – Dynamic Thrust Rating (90 million revolutions)6: 41400 N
Cage Type: Stamped Steel
Weight: 2.26 kg
