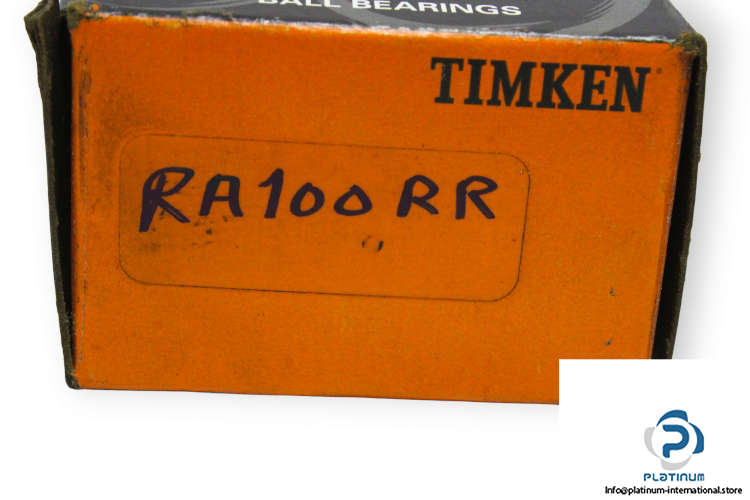

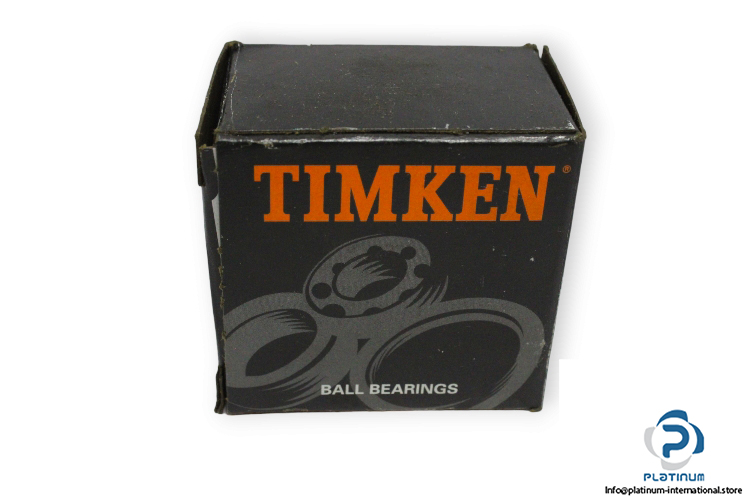

Timken RA100RR Eccentric Locking Collar Ball Bearings

Manufacturer: Timken
Type: Eccentric Locking Collar Ball Bearings
Model: RA 100RR

Shaft Size d: 1 in
Outside Diameter: 52 mm
Inner Ring Width B: 21.44 mm
Outside Ring Width: 15 mm
Radius r: 0.6 mm
Center of Bearing from End S: 7.49 mm
Number of Set Screws: 2
Angle between Set Screws: 90 ⁰
Dimension d1: 38.1 mm
Dimension B1: 31 mm
Dimension B2: 13.5 mm
Static Load Rating: 7800 N
Dynamic Load Rating: 15500 N
Material: Bearing Steel
Bore Type: Cylindrical bore
Seal Type: Molded Shroud
