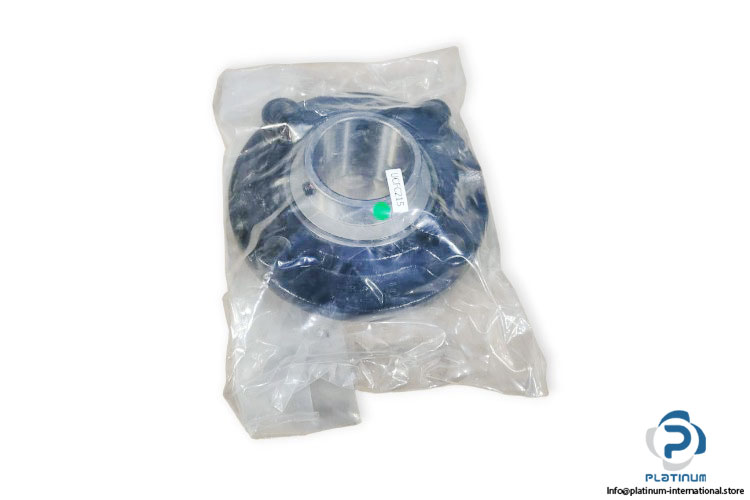

Timken Ucfc 215 Round Flange Ball Bearing Unit

Manufacturer: TIMKEN
Type: Round flange ball bearing
Model: UCFC 215

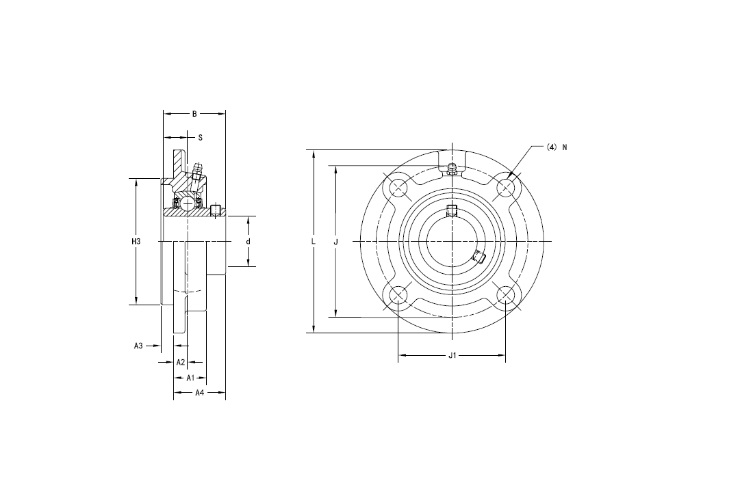

Dimensions
Bore Diameter d: 75 mm
Total Height L: 220 mm
Pilot Outside Diameter H3: 160 mm
Bolt Circle Diameter J:184 mm
Bolt Hole Spacing J1: 130.1 mm
Bolt Hole Size N: 19 mm
Flange Width A1: 40 mm
Center of Bearing from Housing End A2: 18 mm
Pilot Width A3: 16 mm
Inner Ring Width B: 77.8 mm
Center of Bearing from Bearing End S: 33.3 mm
Dimension A4: 62.5 mm
Dynamic Load Rating: 67400 N
Static Load Rating:  48300 N
Locking Style: Set Screw Locking
