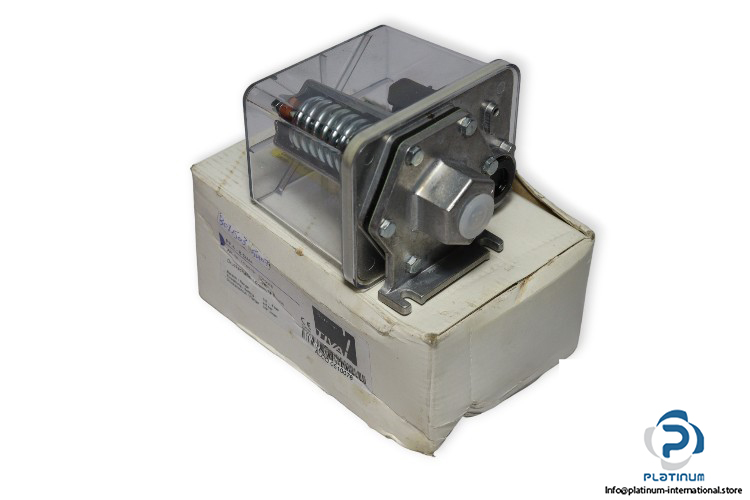

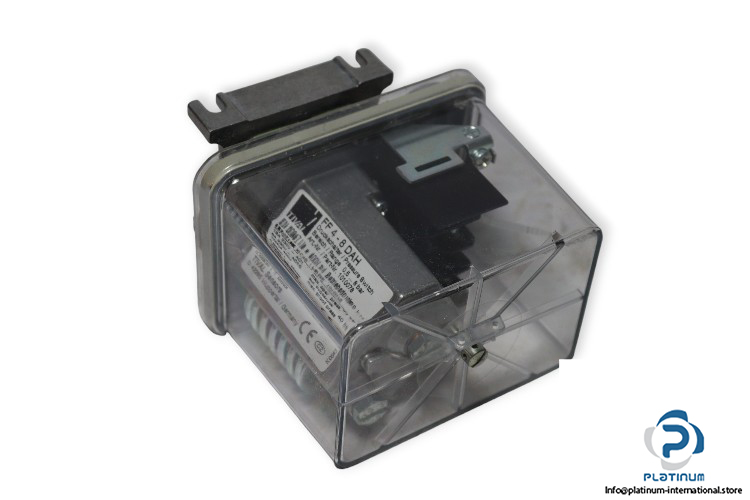

Tival FF4-8 DAH Pressure Switch
New
Available on request
90,00$
Manufacturer:
TIVAL Sensors
Type:
Pressure switch
Model:
FF 4-8 DAH
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

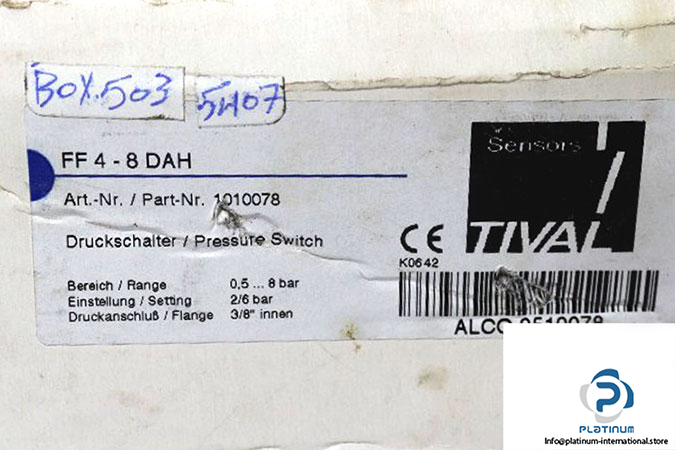

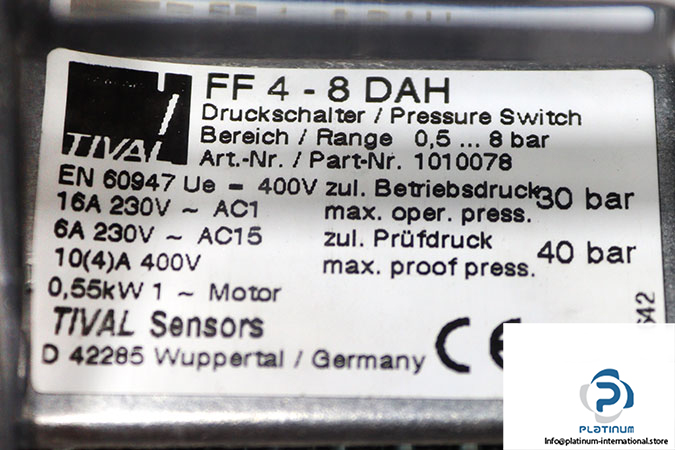

Manufacturer: TIVAL Sensors
Type: Pressure switch
Model: FF 4-8 DAH
Part No.: 1010078
Pressure range: 0.5 … 8 bar
Setting Pressure: 2/6 bar
Max Operating pressure: 30 bar
Max Proof pressure: 40 bar
Rated operating current at AC1 230V: 16A
Rated operating current at AC1 400V: 10A
Rated operating current at AC15 230V: 6A
Permissible motor power 1: 0,55 kW
Ambient temperature range: -20 …. +70°C
Connection Port: G3/8
