Tramec EP 120/1C 10 T/T AE19 P06 Planetary Gearbox
Used
In stock1 unitReady to ship
444,44$
Planetary Gearbox
Tramec EP 120/1C planetary gearbox with 10:1 ratio, 100 Nm torque capacity, AE19 input flange, and precision ground gearing for industrial drive applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Tramec EP 120/1C Planetary Gearbox
The Tramec EP 120/1C is a precision planetary gearbox designed for high torque transmission, compact installation, and reliable performance in industrial drive systems.
Manufacturer: Tramec
Type: Planetary Gearbox
Series: EP

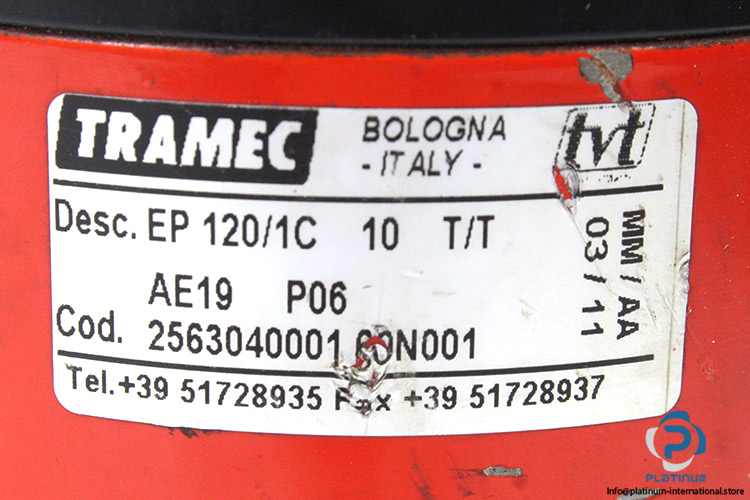

Model: EP 120/1C 10 T/T AE19 P06
Code: 2563040001 N001
Material
| Size | 120 with 1 reduction stage |
| Nominal Gear Ratio [i] | 10:1 |
| Rated Nominal Torque | 100 Nm |
| Number of Stages | 1 |
| Shaft Diameter | 25 mm |
| Hollow Shaft Diameter | 18 mm |
| Speed n1nom | 3000 rpm |
| Speed n1max | 4000 rpm |
| Output Shaft Type | Type T (Input and Output) |
| Input Flange Type | AE19 |
| Housing | Special nitride steel for high strength and reliability |
| Flanges | Aluminum input and output flanges |
| Gears | Casehardened and tempered alloy steel with ground toothing |
| Bearings | High-quality bearings for long service life and quiet operation |
