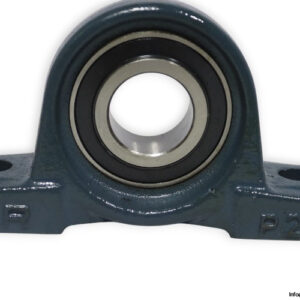

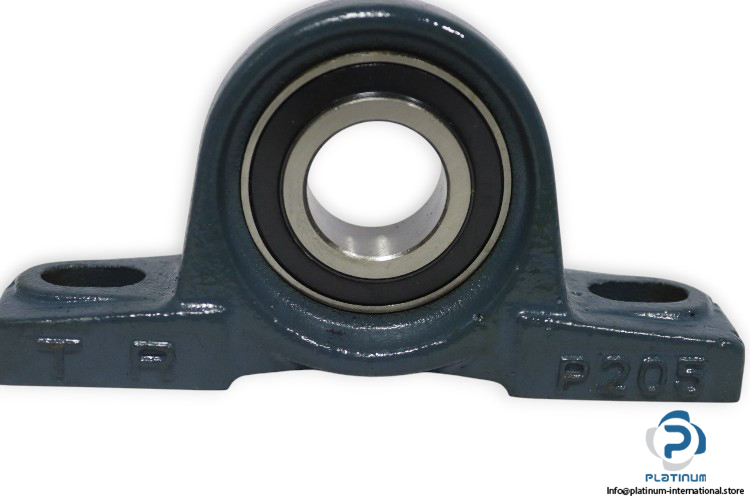

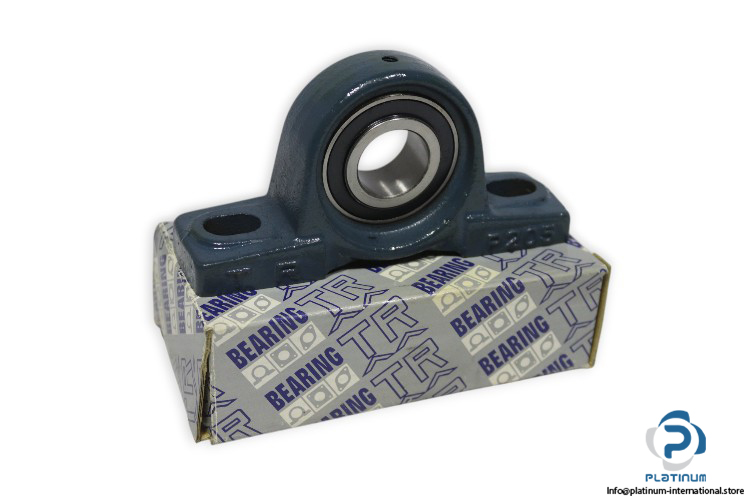

Trans Link UKP 205 Pillow Block Ball Bearing Unit

Trans Link Pillow Block Ball Bearing Unit UKP 205

Manufacturer: Trans Link

Type: Pillow Block Ball Bearing Unit

Model: UKP 205

Housing: P 205

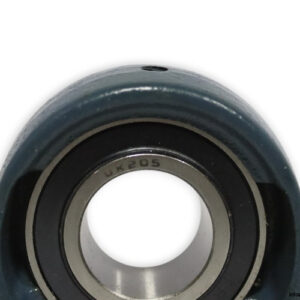

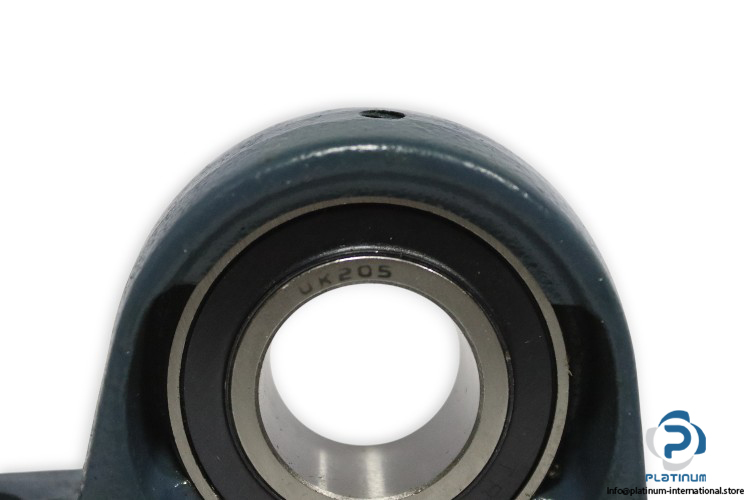

Bearing: UK 205

The Trans Link Pillow Block Ball Bearing Unit UKP 205 is an efficient and durable solution for various mechanical and industrial applications. Engineered with a two-bolt base and a sturdy cast iron housing, this unit ensures secure mounting and stable operation. Designed for use in demanding environments, it provides exceptional reliability and smooth performance.

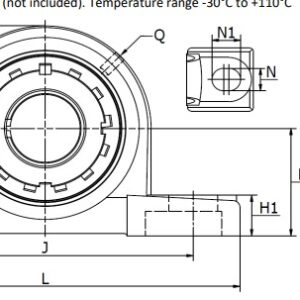

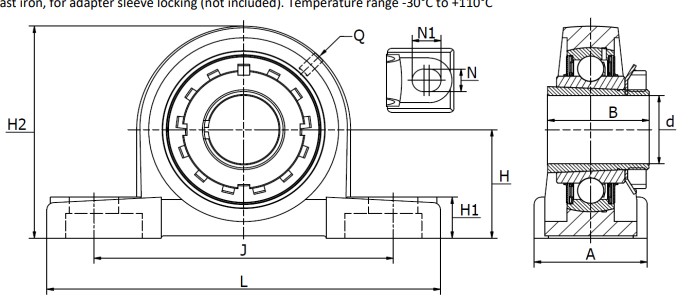

Technical Specifications:

• Shaft Diameter (d): 20 mm
• Overall Length (L): 140 mm
• Base Width (A): 38 mm
• Overall Height (H2): 70 mm
• Width of Inner Ring (B): 35 mm
• Height (H): 36.5 mm
• Distance of Attachment Bolts (J): 105 mm
• Material, Housing: Cast Iron
• Mounting: Two-Bolt Base

This bearing unit is designed for reliable operation under heavy loads, offering a secure fit and smooth functionality in various applications.
