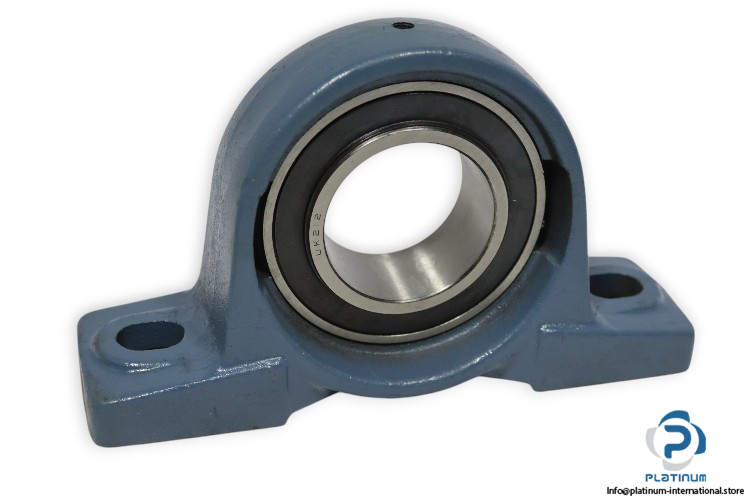

Trans Link UKP 212 Pillow Block Ball Bearing Unit
Trans Link Pillow Block Ball Bearing Unit UKP 212 €“ Reliable 55 mm shaft bearing unit with cast iron housing and two-bolt base mounting for industrial applications.
Trans Link Pillow Block Ball Bearing Unit UKP 212
Manufacturer: Trans Link
Type: Pillow Block Ball Bearing Unit
Model: UKP 212
Housing: P 212

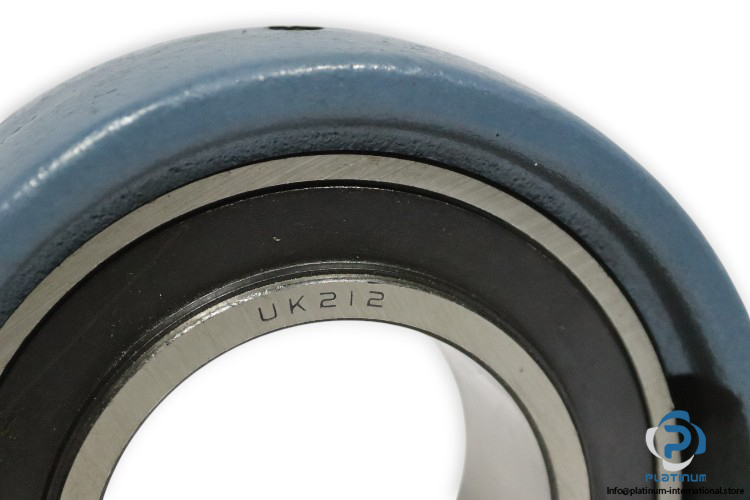

Bearing: UK 212
The Trans Link Pillow Block Ball Bearing Unit UKP 212 is a robust and versatile solution for various industrial applications. Its durable cast iron housing and high-quality bearing ensure reliable performance and a long operational life. The two-bolt base mounting design makes it easy to install while maintaining stability during operation.

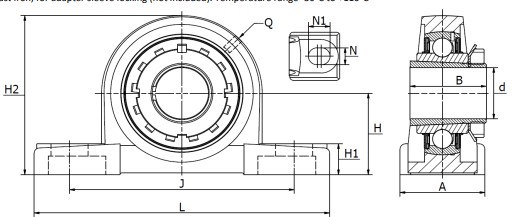

Technical Specifications:
- Shaft Diameter (d): 55 mm
- Overall Length (L): 241 mm
- Base Width (A): 70 mm
- Overall Height (H2): 138 mm
- Width of Inner Ring (B): 62 mm
- Height (H): 69.8 mm
- Distance of Attachment Bolts (J): 184 mm
- Material, Housing: Cast Iron
- Mounting: Two-Bolt Base
This pillow block bearing unit is designed for heavy-duty applications, providing secure mounting, smooth operation, and ease of maintenance.
