Trans Link UKT 215 Take UP Ball Bearing Unit
Trans Link Take-Up Ball Bearing Unit UKT 215 €“ Durable bearing unit with 65 mm shaft diameter and take-up housing for industrial applications, providing secure placement and smooth operation.

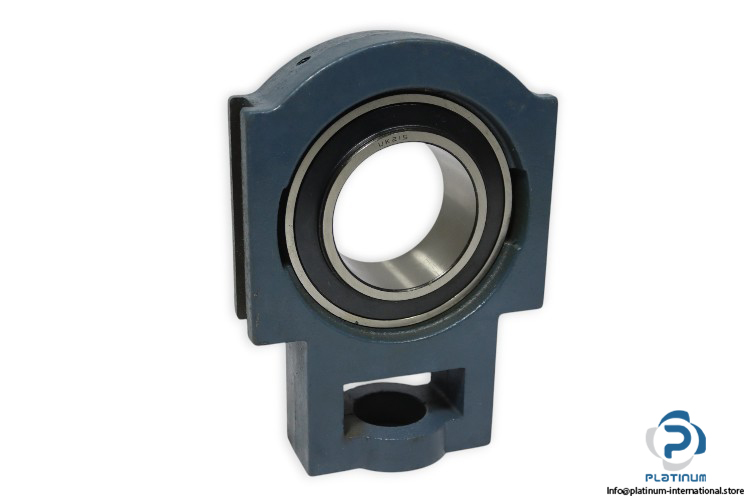

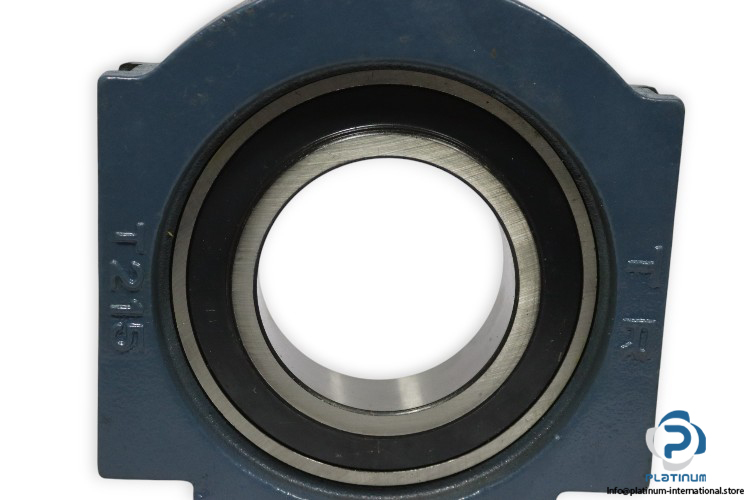

Trans Link Take-Up Ball Bearing Unit UKT 215
Manufacturer: Trans Link
Type: Take-Up Ball Bearing Unit
Model: UKT 215
Housing No.: T215

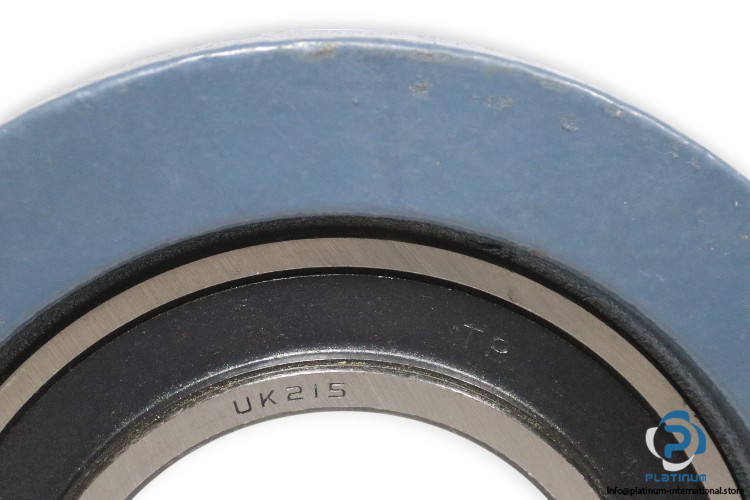

Bearing No.: UK215
The Trans Link Take-Up Ball Bearing Unit UKT 215 is designed for use in demanding industrial applications, providing exceptional durability and performance. This unit features a take-up housing type, ensuring reliable placement and secure fitting in a variety of mechanical systems. With a 65 mm shaft diameter, the bearing unit offers robust support for heavy loads while maintaining smooth and efficient operation over time.

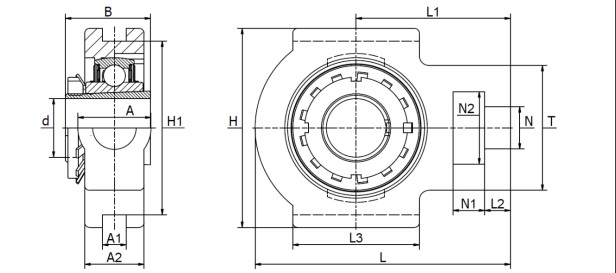

Technical Specifications:
- Shaft Diameter (d): 65 mm
- Width of Inner Ring (Bi): 73 mm
- Overall Height: 167 mm
- Overall Length: 232 mm
- A: 70 mm
- A2: 48 mm
- L1: 140 mm
- L3: 121 mm
- Housing Type: Take-Up
This bearing unit ensures secure installation and long-lasting performance in various mechanical systems. Its take-up housing design provides stability and easy maintenance, making it an ideal choice for heavy-duty industrial applications.
