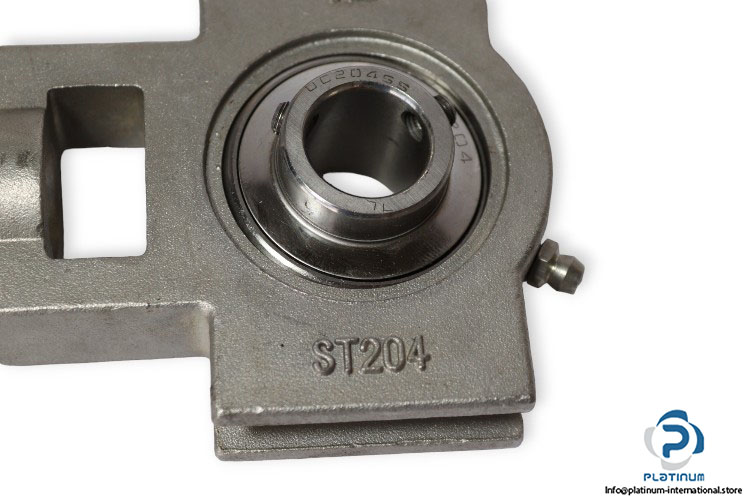

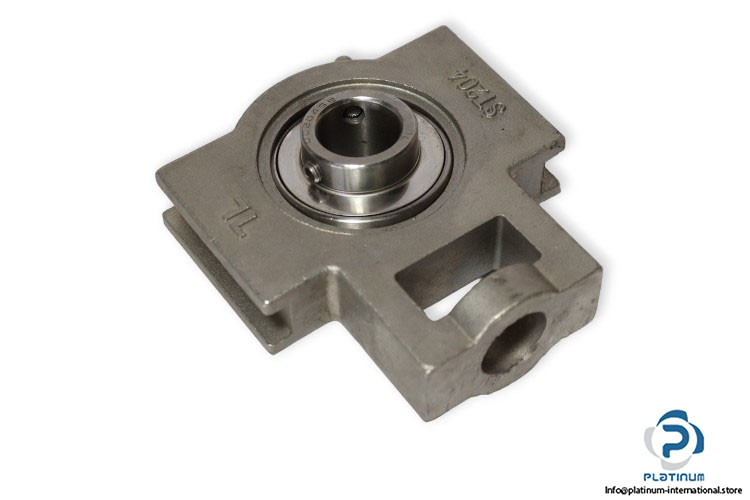

Translink SUCST204 Stainless Steel Take UP Ball Bearing Unit
Manufacturer: TRANSLINK Type: Stainless steel take up ball bearing unit Model: SUCST 204 Housing No.: ST204 Bearing No.: SUC204 SS
Manufacturer: TRANSLINK
Type: Stainless steel take up ball bearing unit
Model: SUCST 204
Housing No.: ST204
Bearing No.: SUC204 SS

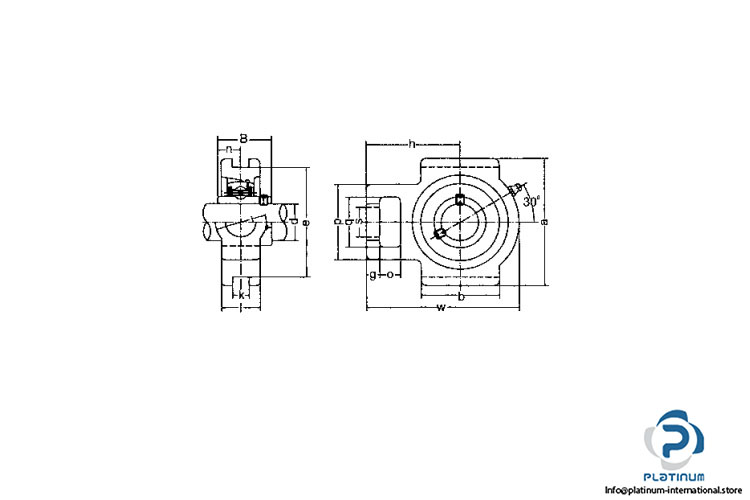

Dimensions
Bore Diameter d: 20 mm
Length of attachment slot O: 16 mm
Overall length a: 89 mm
Distance from attachment end face to center line of spherical seat diameter h: 61 mm
Height of attachment end P: 51 mm
Height of attachment slot q: 32 mm
Overall height w: 97 mm
Base width B: 31 mm
Length of piloting groove b: 51 mm
Distance Between Attachment Bolts e: 76 mm
Housing type: Take-up
Material, housing: Stainless Steel
Retaining feature, inner ring: Set screws
