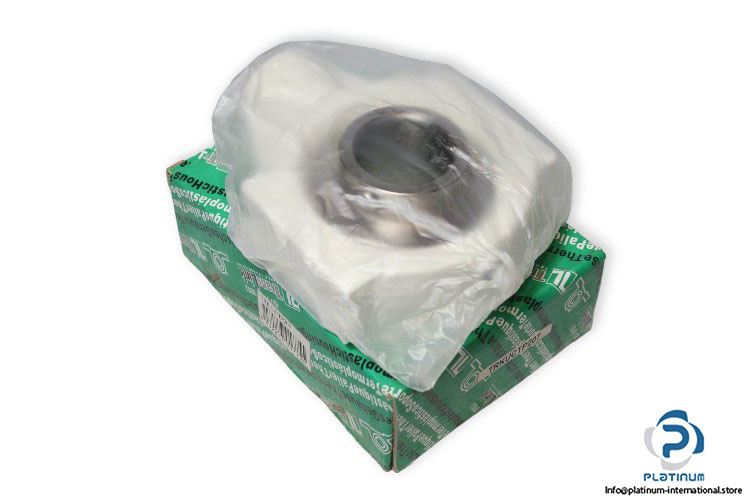

Translink TRK UCTP207 Plastic Take UP Ball Bearing Unit

Manufacture: Translink
Type: Plastic take up ball bearing unit

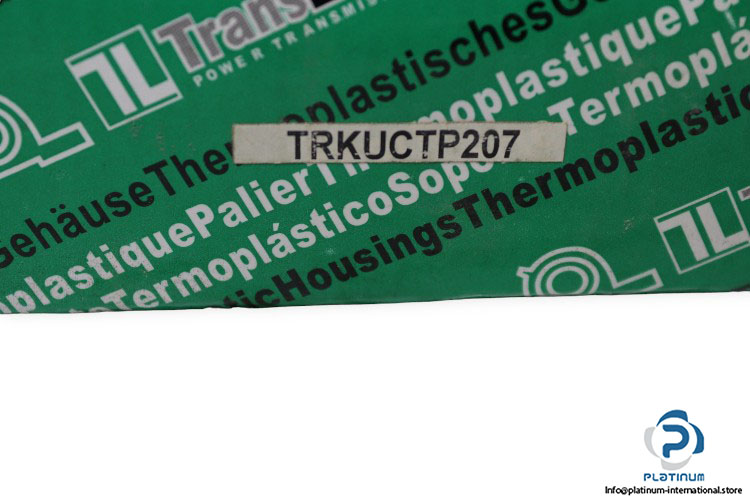

Model: TRKUCTP207
Housing No.: TP207
Bearing No.: SSUC207

Shaft diameter: 35 mm

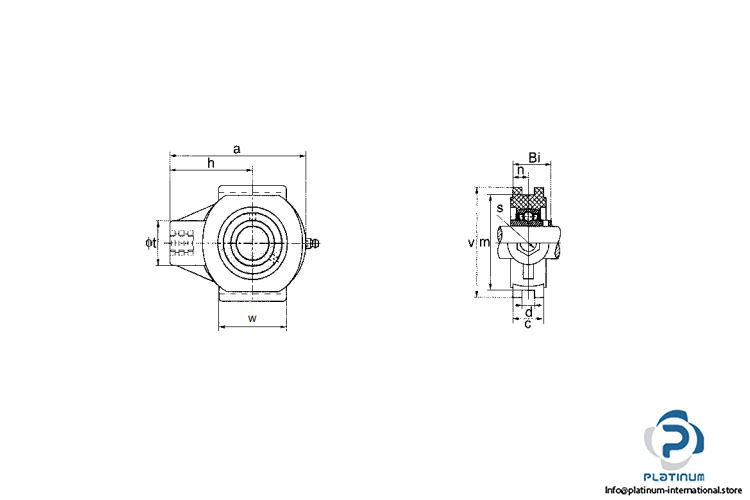

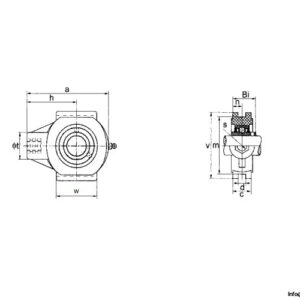

Housing length a: 125 mm
C: 34.5 mm
Width of location slot d: 12 mm
Distance from attachment end face to center line of spherical seat diameter h: 76 mm
Distance between location slots m: 89 mm
Housing height / width t: 40 mm
Housing length, width or diameter v: 102 mm
Length of guidance slot/face w: 63 mm
Width of Inner Ring Bi: 42.9 mm
Distance front side/bearing centre n: 17.5 mm
Housing type: Take-up
Housing Color: White
Material, housing: Plastic
Material, bearing: Stainless Steel
