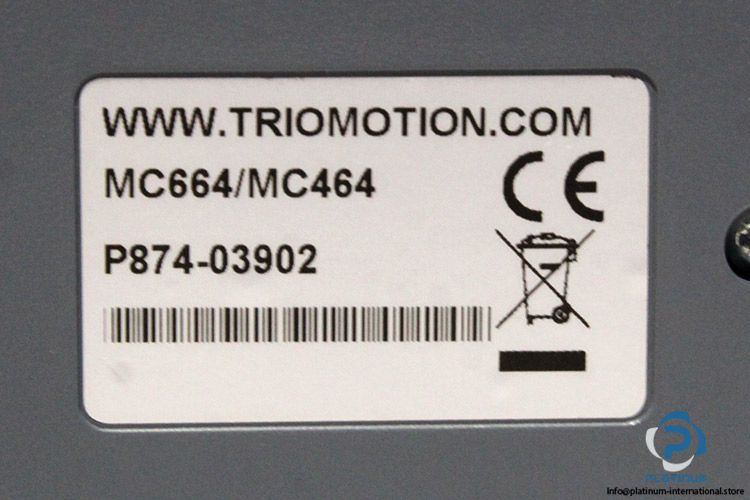

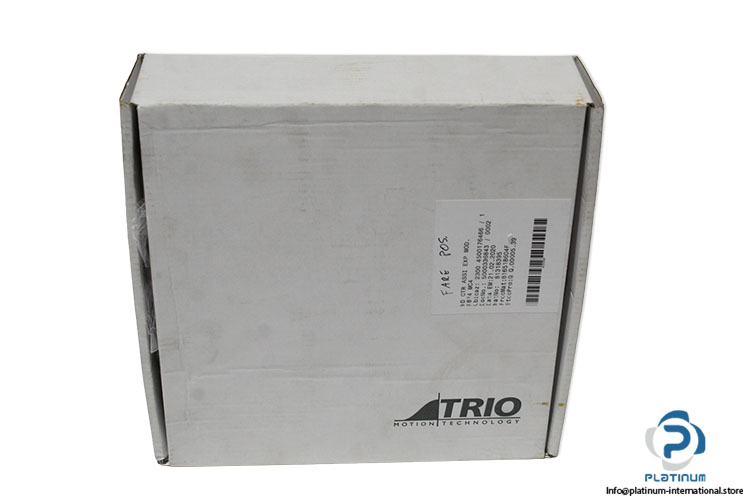

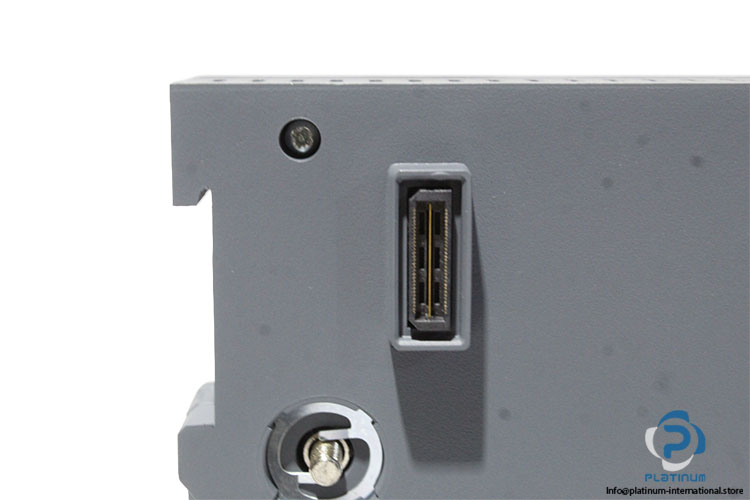

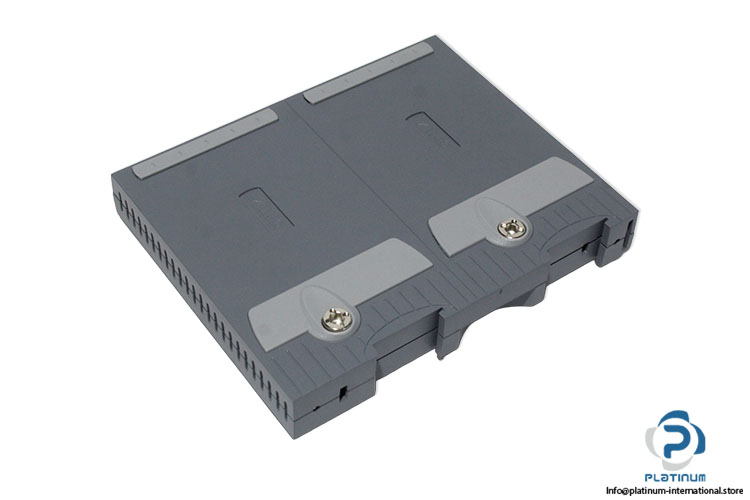

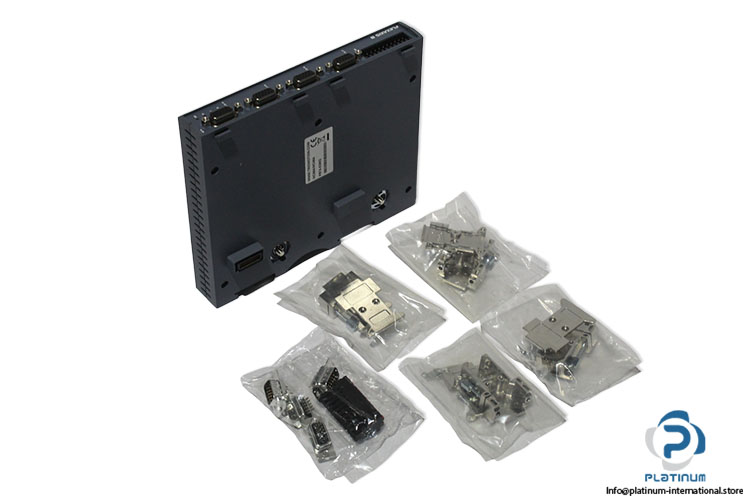

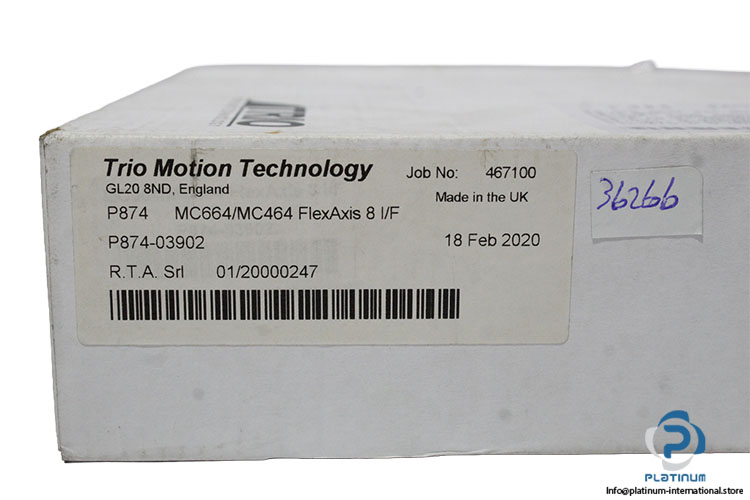

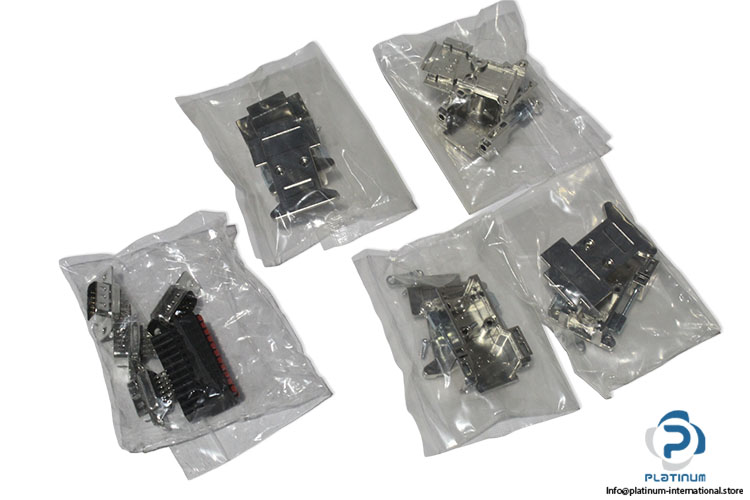

Trio P874-03902 Interface Module
New
In stock1 unitReady to ship
Interface Expansion Module TRIO MC664/MC464 interface expansion module featuring FlexAxis communication, support for up to 8 axes, 24 V DC input, and compatibility with Trio Motion MC4 and MC6 series controllers for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | P874-03902 |
| Code | 01/20000247 |
| Interface Type | FlexAxis Communication Interface |
| No. of axis | 8 axes (P874) version |
| Input Power | 24 V DC (18 to 29 V DC at 625mA typical) |
| Max Interfaces per MC664 | 3 |
| Max Axes on MC664 | 24 |

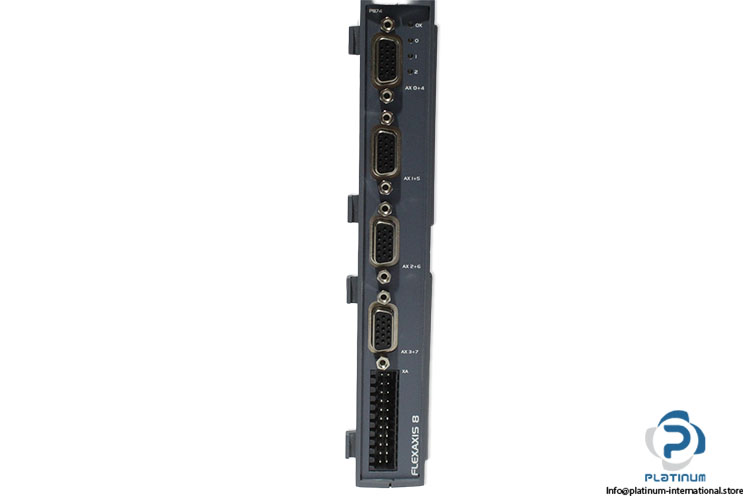

| Connectors | Encoder: 15pin HD D-type |
| Discrete Wiring | Removable terminal block |
| Bus to MC664 | 32 Bit |
| Registration Inputs | Flexible registration on all axes |
| Position based registration | 4 x 24V inputs |
| Bi-direction registration input/position switch output | 4 x 24V |
| No of 16 bit DAC Outputs | 8 |
| Application | For use with Stepper, Analogue Servo and Piezo Motors with support available for SSI/Endat/Tamagawa Absolute encoders |
| Function | Industrial Communication Interface Expansion |
| Compatibility | Trio Motion MC4 / MC6 Series Controllers |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1099630 |
| Weight | 0,7 |
