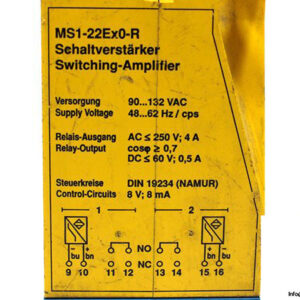

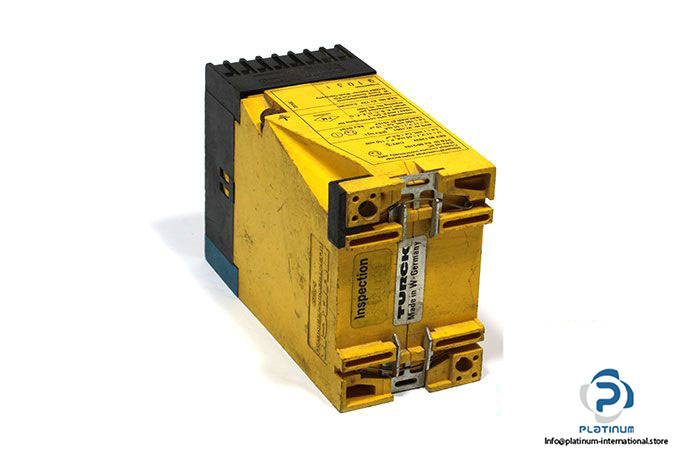

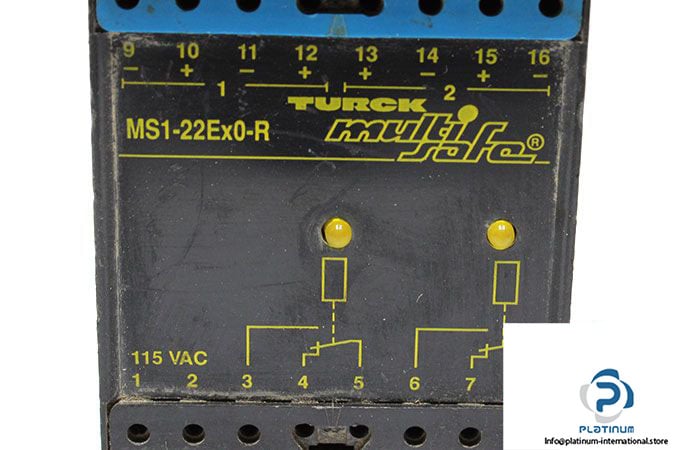

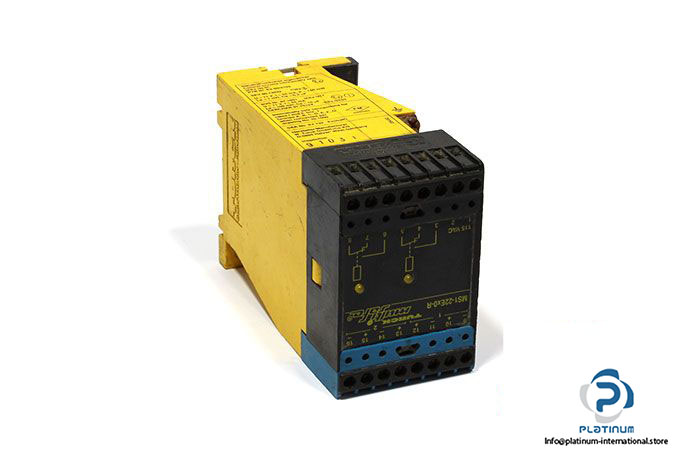

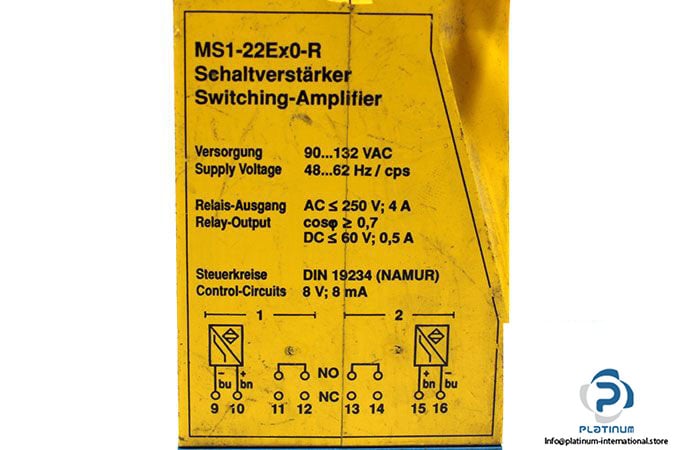

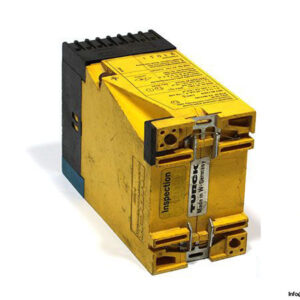

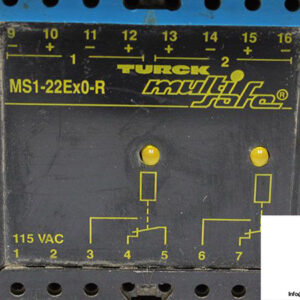

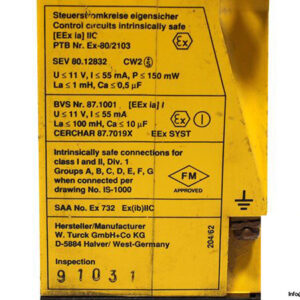

TURCK MS1-22Ex0-R ISOLATING SWITCHING AMPLIFIER

Manufacturer: TURCK

Type: ISOLATING SWITCHING AMPLIFIER

Model: MS1-22Ex0-R

Supply Voltage: 90 … 132 V AC

Frequency: 48 … 62 Hz

Input Voltage: 8 V

Input Current: 8 mA

Output Circuits: 2 relay outputs

Contacts: 2 Single Pole Double Through

Housing: 50 mm wide, Polycarbonate/ABS

Mounting: mounting or snap-on clamps for top-hat rail (DIN 50022)

Connection: 2 x 8 self-lifting pressure plates

Degree of Protection: IP20

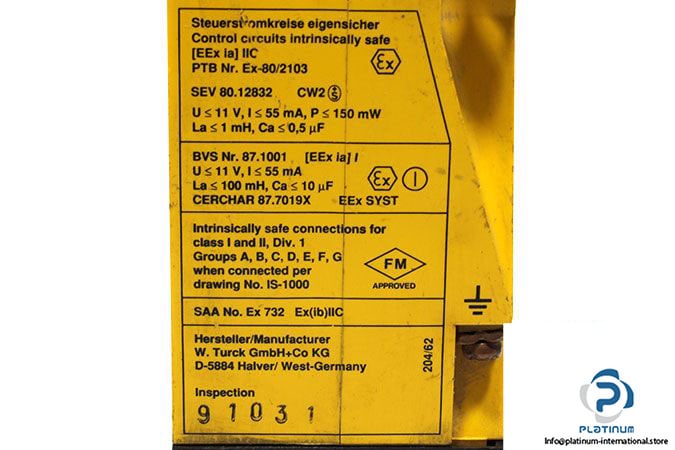

Type of Protection: Explosion protection

Operating Temperature: -25 … +60 °C

Dimensions: 50 x 76 x 112 mm
