UCF204 Plastic Four-Bolt Square Flange Unit

Name: UCF204 PLASTIC FOUR-BOLT SQUARE FLANGE UNIT
SKU: 1030195
Availability: LimitedAvailability

UCF204-plastic-four-bolt-square-flange-unit-(new)

UCF204-plastic-four-bolt-square-flange-unit-(new)-1

UCF204-plastic-four-bolt-square-flange-unit-(new)-2

UCF204-plastic-four-bolt-square-flange-unit-(new)-3

New

In stock45 unitsReady to ship

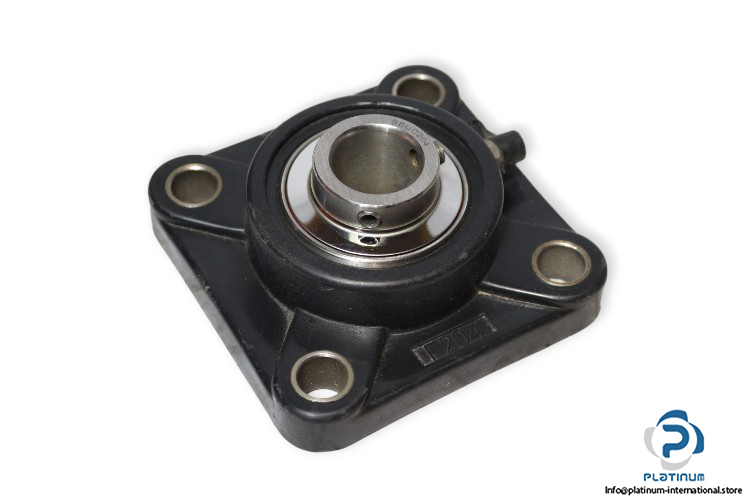

Type: plastic Four-Bolt Square Flange Unit Model: UCF 204 Housing No.: F204 Bearing No.: SSUC204

SKU

1030195

Category

Plummer Block Housing Units

Condition

New

bearing Block Four-Bolt Plastic Square UCFP204 Unit

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Type: plastic Four-Bolt Square Flange Unit
Model: UCF 204

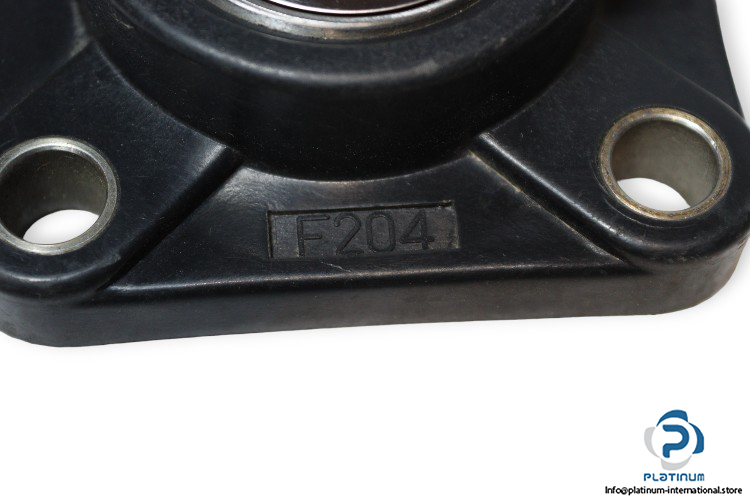

Housing No.: F204

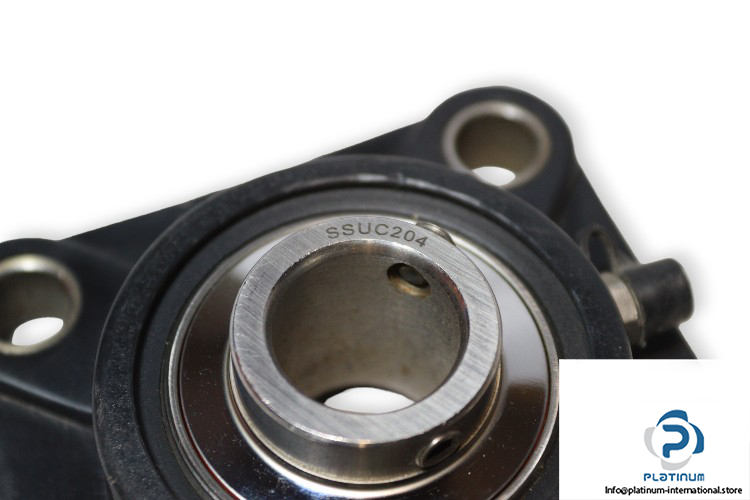

Bearing No.: SSUC204

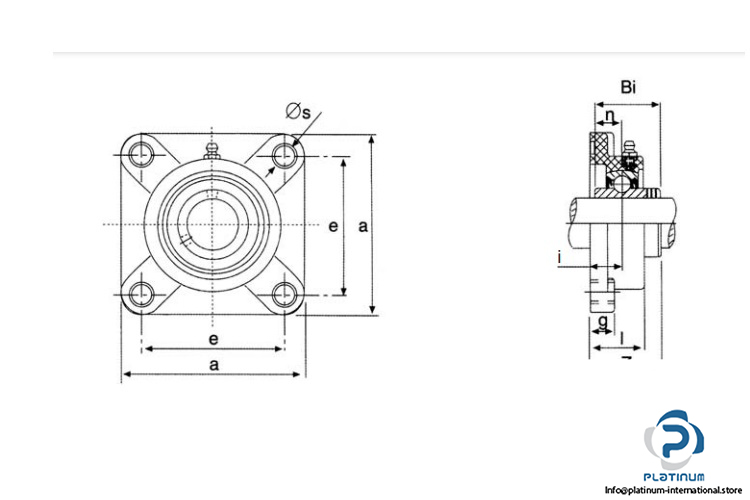

Dimensions
Bore Diameter d: 20 mm
Overall length a: 86 mm
i: 18 mm
Housing foot height / flange height g: 13.4 mm
Width of housing I: 27.8 mm
Distance Between Attachment Bolts e: 63.5 mm
Mounting hole diameter s: 11 mm
Overall width z: 36.3 mm
Mounting: Four-Bolt Flange
Housing Color: Black
Material, bearing: Stainless Steel
Material, housing: Plastic
