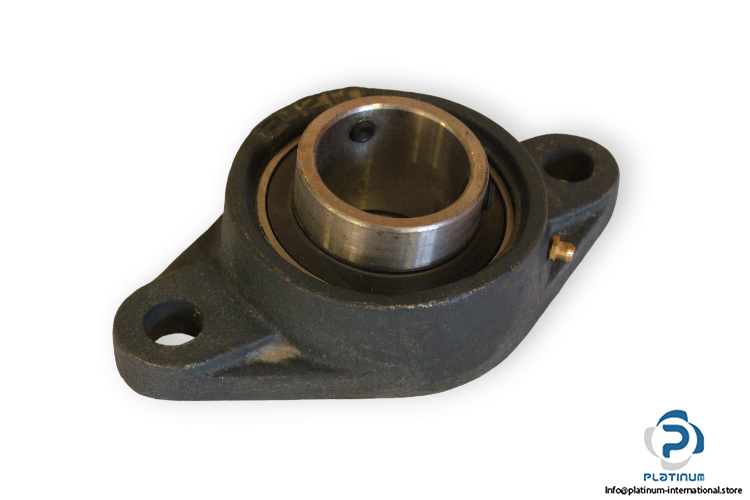

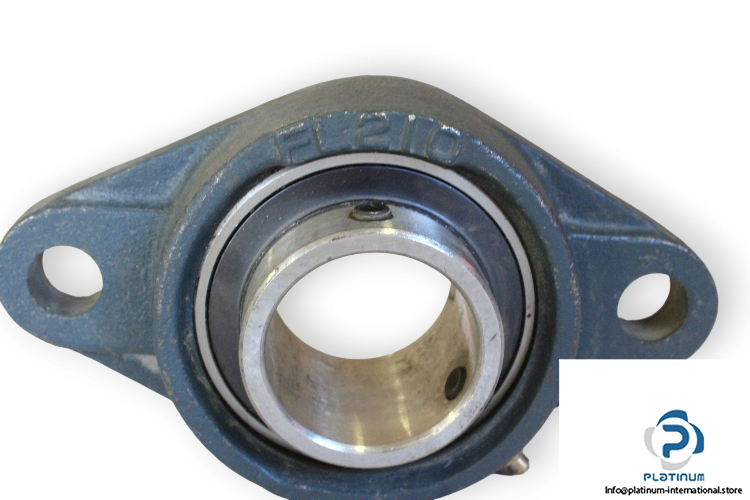

Ucfl 210 Oval Flange Ball Bearing Unit
Type: Oval flange ball bearing unit
Model: UCFL 210
Dimensions
Bore Diameter d: 50 mm
Overall Length L: 115 mm
Width of inner ring B: 51.6 mm
Overall Height H: 197 mm
Distance Between Attachment Bolts J: 157 mm
Overall unit width A0: 54.6 mm
Diameter of attachment bolt hole N: 19 mm
Mounting: Oval Flange
