UCFL204-PBT TWO-Bolt Flanged Unit

Type: TWO-BOLT FLANGED UNITS SETSCREW LOCKING

Series: UCFL

Part No.: UCFLP 204

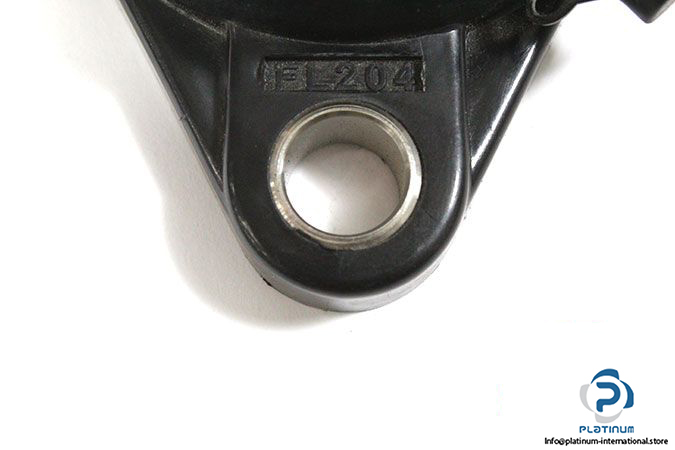

Housing No.: FL204

Bearing No.: UC204



Application: The plastic pillow blocks are manufactured in accordance with FDA standards and are therefore suitable for food and pharmaceutical industries

Features:

• plastic pillow block bearings are chemically resistant
• lightweight and run quietly and smoothly in applications where metallic ball bearings will not perform

Housing Material: Plastic

Bearing Material: Stainless Steel

Bore type: Round

Mounting: Two-Bolt Flange

Locking device: Set Screw

Bore Diameter: 20 mm

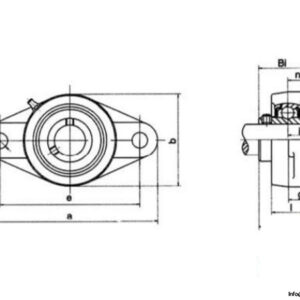

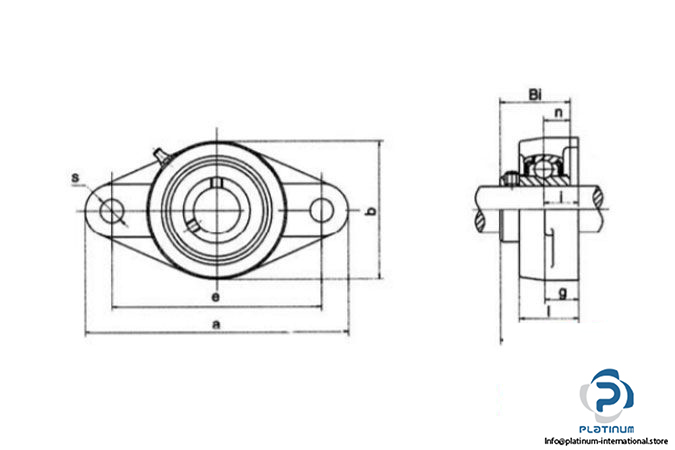

Overall length ( a ): 113 mm

Overall Width ( e ): 90 mm

Overall Height: 33.7 mm

thread size ( s ): 12 mm

Weight: 0.24 kg
