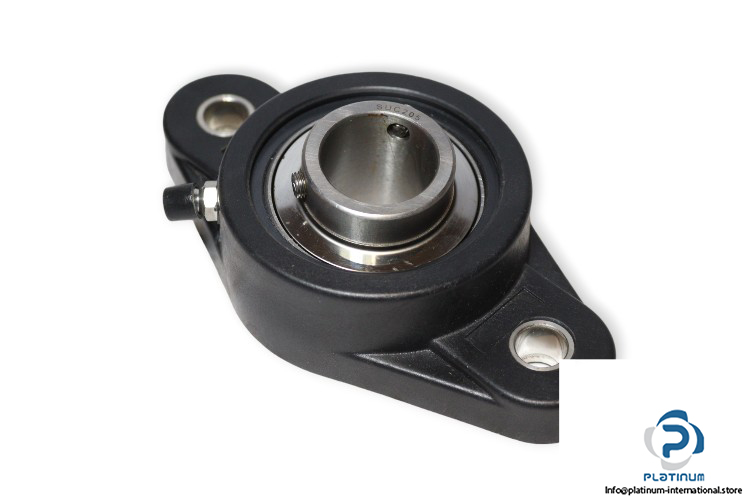

UCFL205 Plastic Oval Flange Housing Unit
Type: plastic Oval Flange Housing Unit
Model: UCFL 205

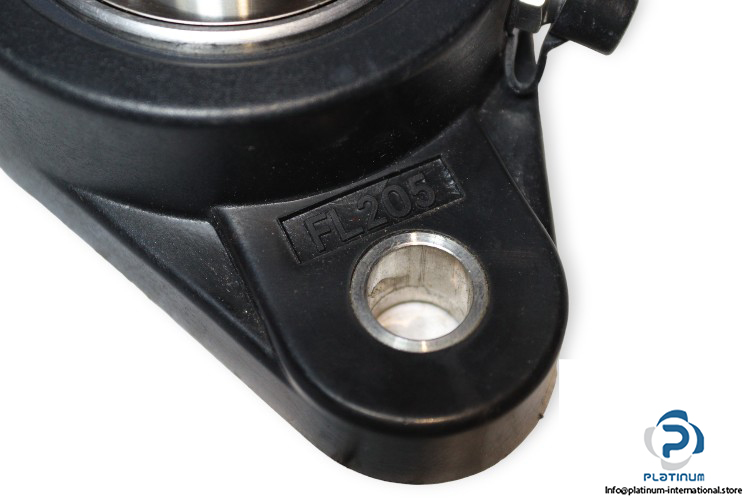

Housing No.: FL205

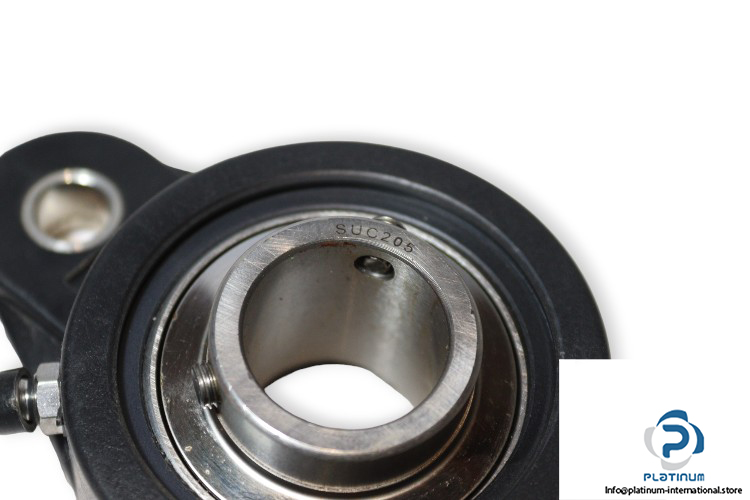

Bearing No.: SUC205

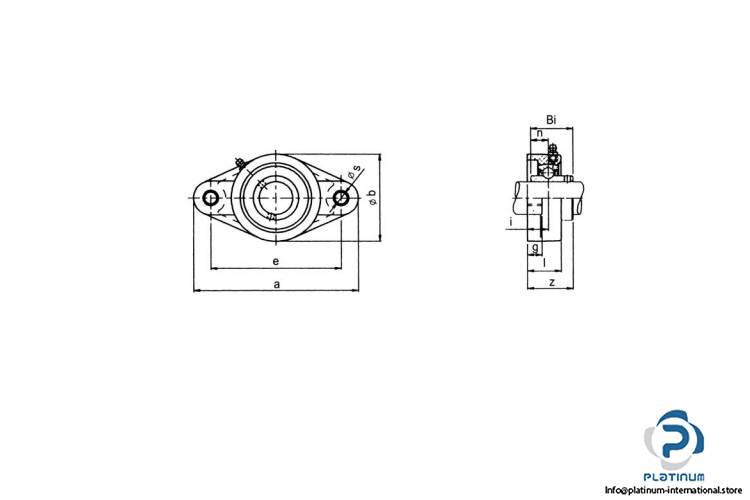

Dimensions
Bore Diameter d: 25 mm
Overall Length b: 69.5 mm
Overall Height a: 131 mm
Distance mounting surface to bearing center i: 17
Distance Between Attachment Bolts e: 99 mm
Diameter of attachment bolt hole s: 11 mm
Overall Width z: 36.7 mm
Mounting: Oval flange
Housing Color: Black
Material, housing: Plastic
