Univer KD1000630320MX ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
UNIVER KD1000630320MX ISO Cylinder is a high-precision pneumatic actuator for industrial applications. Featuring a 63 mm bore, 320 mm stroke, and double-acting operation, it ensures efficient motion control. Designed with a square frame and male piston rod end, it supports high-pressure performance up to 10 bar.3/8320mm63mmActuatorAirAutomationboreCompressedconnectionControlcyliCylinderdouble-actingGhigh-precisionIndustrialISOKD1000630320MXMotionPneumaticSquareStrokeUniver
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

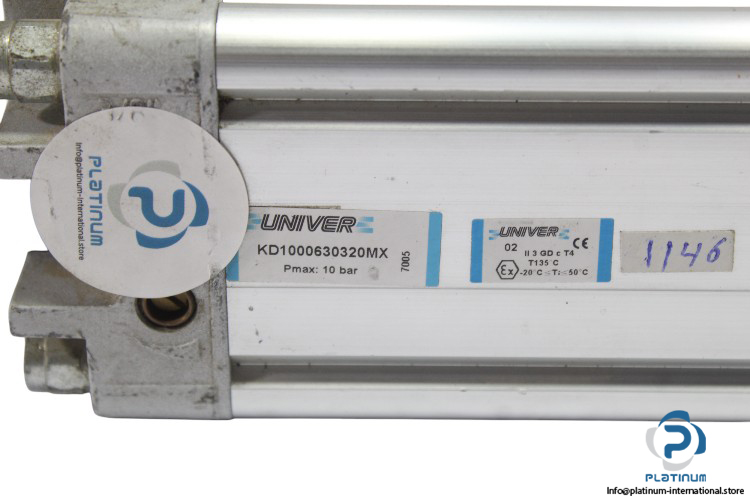

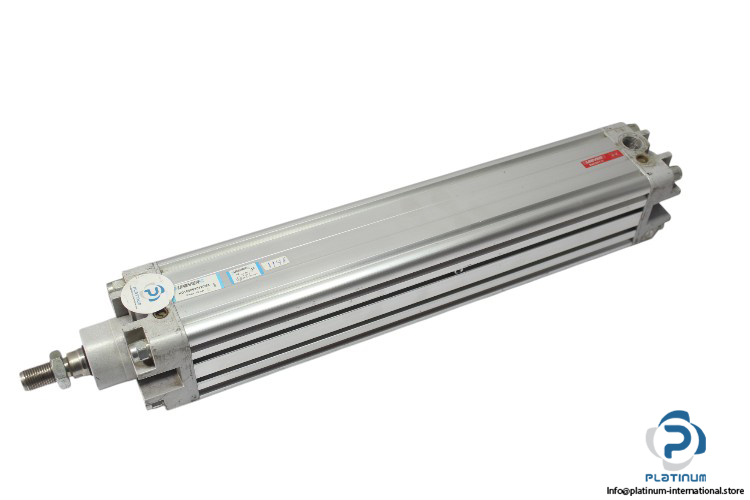

UNIVER KD1000630320MX ISO Cylinder
The UNIVER KD1000630320MX ISO Cylinder is a high-performance pneumatic actuator designed for precision and efficiency in industrial applications. Built for durability, this double-acting cylinder provides reliable motion control in automated systems.
Manufacturer: UNIVER
Type: ISO Cylinder
Model: KD1000630320MX
| Media | Compressed Air |
| Bore Diameter | 63 mm |
| Stroke | 320 mm |
| Bore x Stroke | 63 x 320 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 78 x 475 mm |
| Pneumatic Connection | G 3/8 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
