Univer M1500160250M Pneumatic Cylinder
Used
In stock1 unitReady to ship
49,99$
“ 16 mm bore and 250 mm stroke, double-acting with adjustable cushioning. Made with stainless steel and brass, suitable for up to 10 bar and -20 to 80 °C.
1016250ActingAdjustableAutomationbarborebrassCCushioningCylinderDoubleIndustrialM1500160250MmmNBRPistonPneumaticPneumaticsSealstainlessSteelStrokeUniver
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

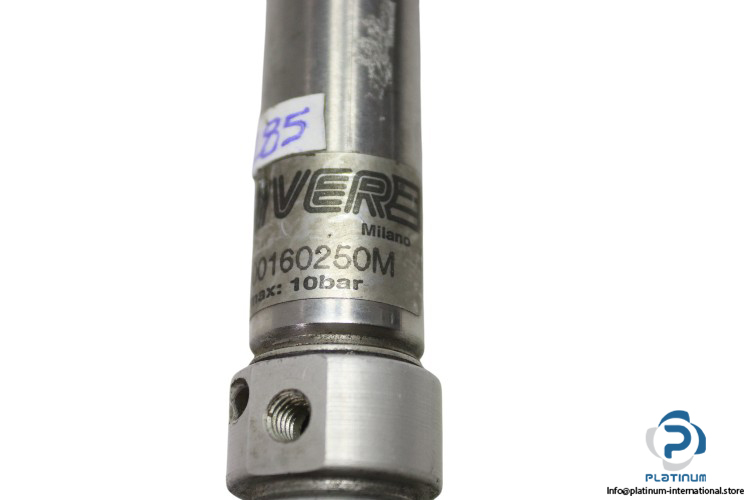

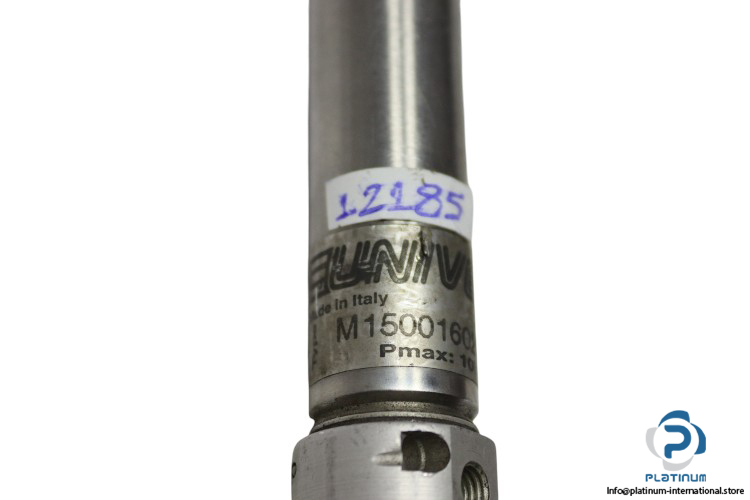

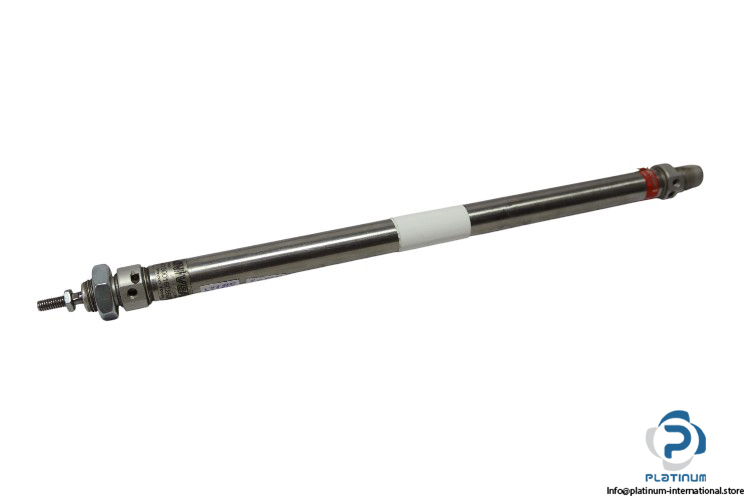

Univer M1500160250M Pneumatic Cylinder
The Univer M1500160250M is a compact and durable pneumatic cylinder engineered for industrial automation. It features double-acting functionality with adjustable cushioning and a long stroke, offering consistent performance under high-pressure conditions using filtered air with or without lubrication.
Manufacturer: Univer
Type: Pneumatic Cylinder
Model: M1500160250M
Material:
| Bore Diameter | 16 mm |
| Stroke Length | 250 mm |
| Fluid | Filtered air, with or without lubrication |
| Max. Operating Pressure | 10 bar |
| Mode of Operation | Double Acting |
| Cushioning | Adjustable in both sides |
| End-Caps | Anodized Aluminum |
| Barrel | Stainless Steel |
| Piston | Brass |
| Piston Rod | Stainless Steel |
| Piston Seal | NBR |
| Pneumatic Connection | 5 mm |
| Temperature Range | -20 to 80 °C |
