URB 30232A Tapered Roller Bearing
Used
In stock1 unitReady to ship
Tapered Roller Bearing
URB 30232 A single-row tapered roller bearing with 160 mm bore and 290 mm outer diameter. High load capacity, low friction, and long service life for industrial and mechanical applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

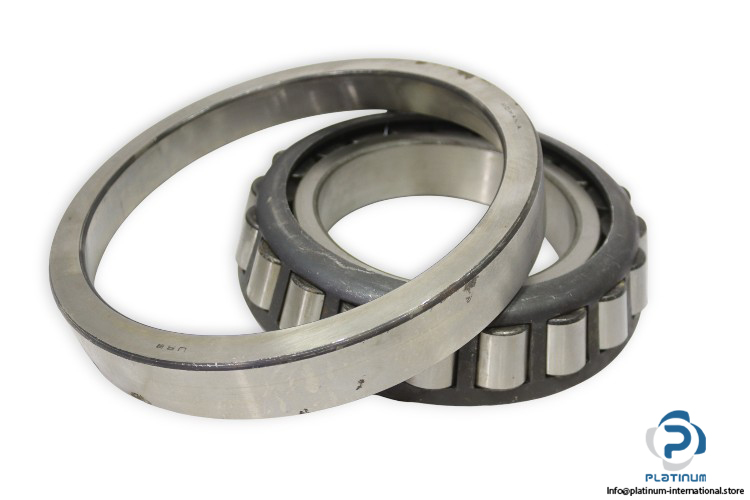

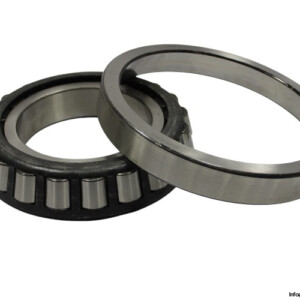

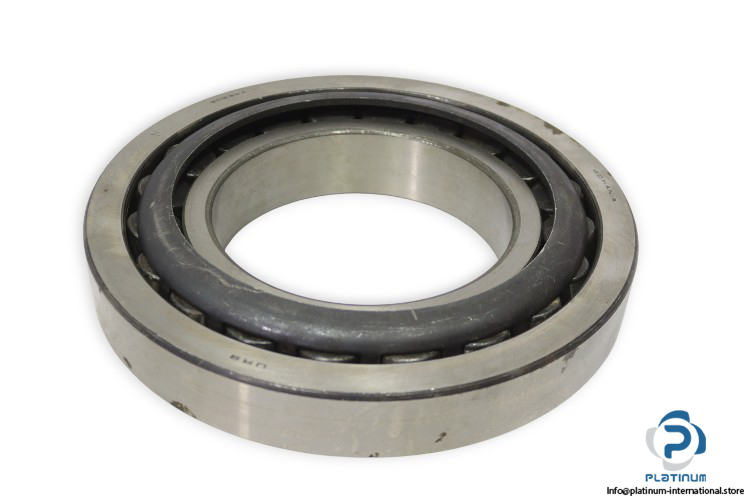

URB 30232 A Tapered Roller Bearing
The URB 30232 A is a high-precision single-row tapered roller bearing designed for heavy-duty industrial applications. It offers outstanding load-carrying capacity, minimal friction, and extended service life, ensuring consistent performance under demanding conditions.

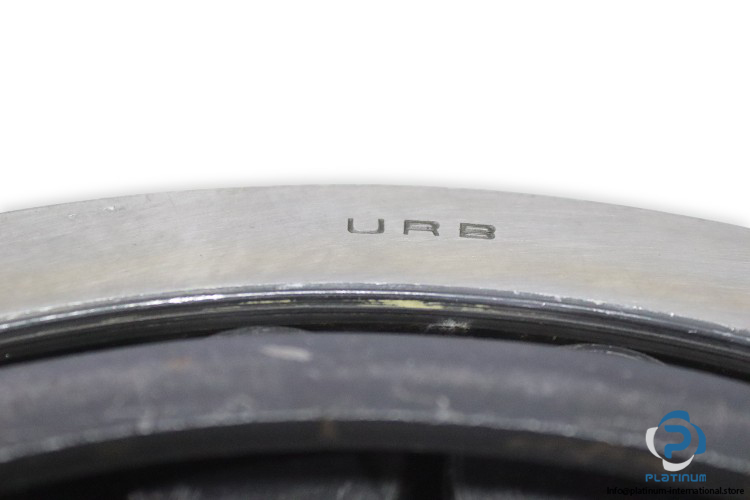

Manufacturer: URB
Type: Tapered Roller Bearing, Single Row

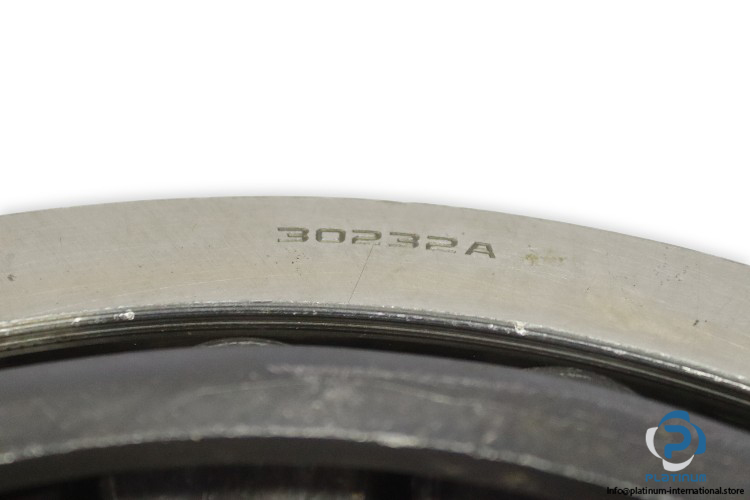

Model: 30232 A
ISO Series: 4GB
Load Ratings and Speed
Ideal for industrial machinery, gearboxes, and heavy mechanical drives, this bearing provides exceptional strength and smooth operation. Designed for reliability and long service life, it ensures minimal downtime and reduced maintenance costs.

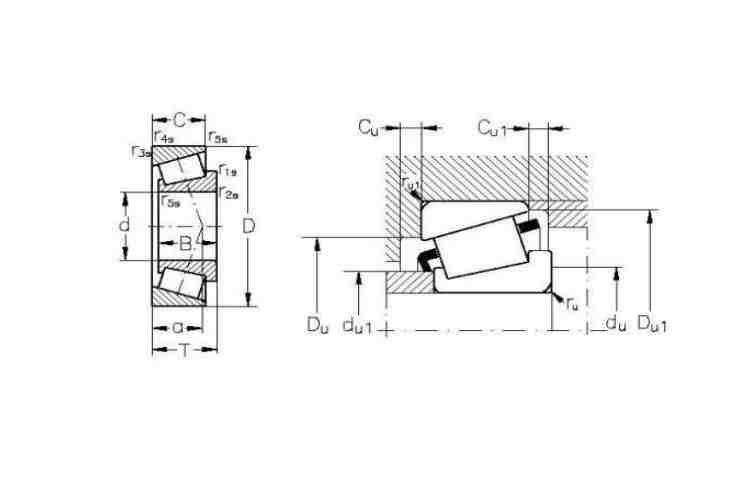

| Bore Diameter (d) | 160 mm |
| Outside Diameter (D) | 290 mm |
| Width (B) | 48 mm |
| C | 40 mm |
| T | 52 mm |
| r1s,2s | min 4 mm |
| r3s,4s | min 3 mm |
| r5 | min 1 mm |
| a | 54 mm |
| Basic Dynamic Load Rating (Cr) | 520 kN |
| Basic Static Load Rating (C0r) | 710 kN |
| Speed Limit (Grease) | 1100 rpm |
| Speed Limit (Oil) | 1600 rpm |
| Recommendation | Pair the URB 30232 A with high-quality lubrication systems and precision housing units to achieve superior alignment accuracy, extended bearing life, and quieter machine operation. |
