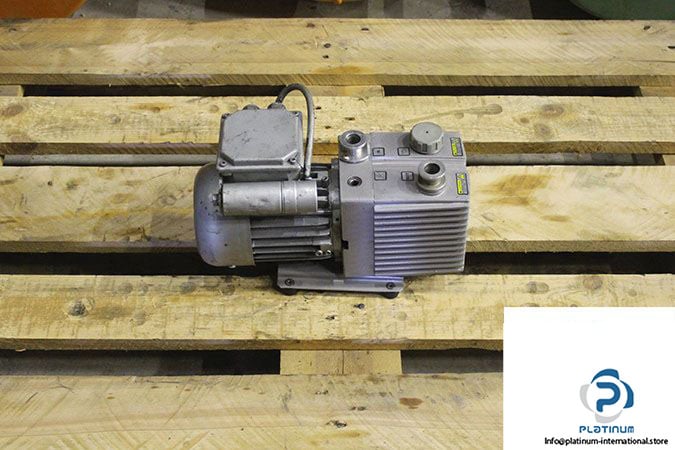

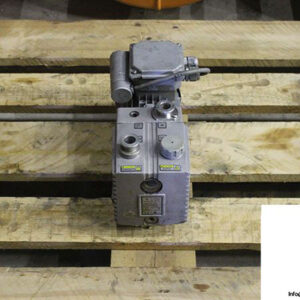

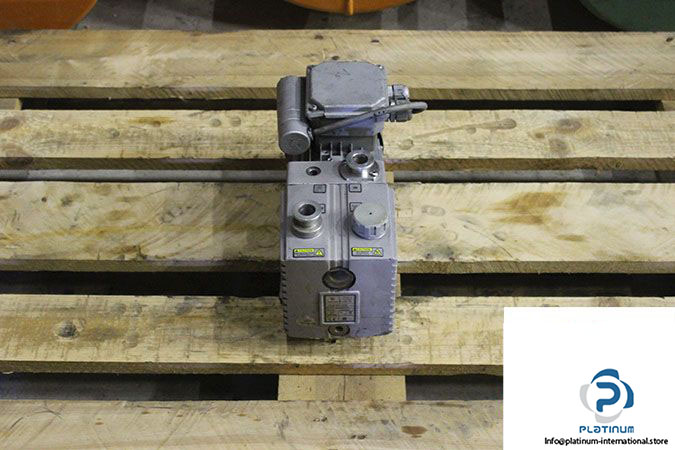

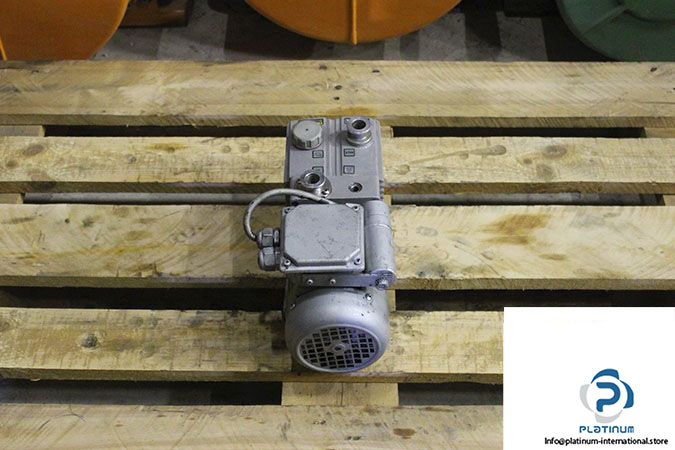

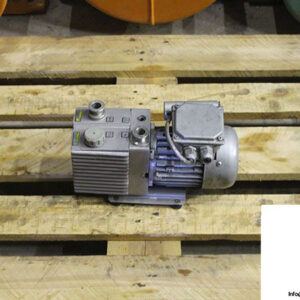

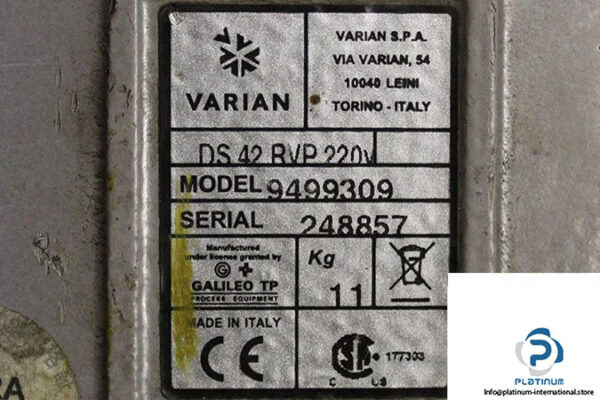

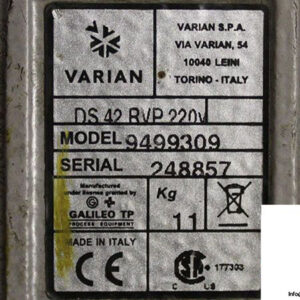

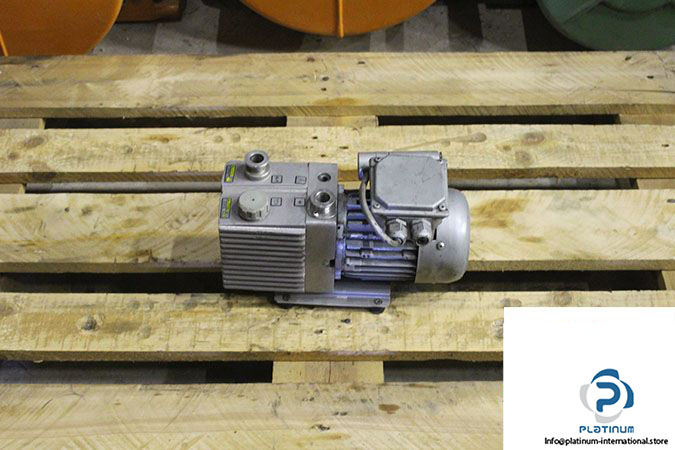

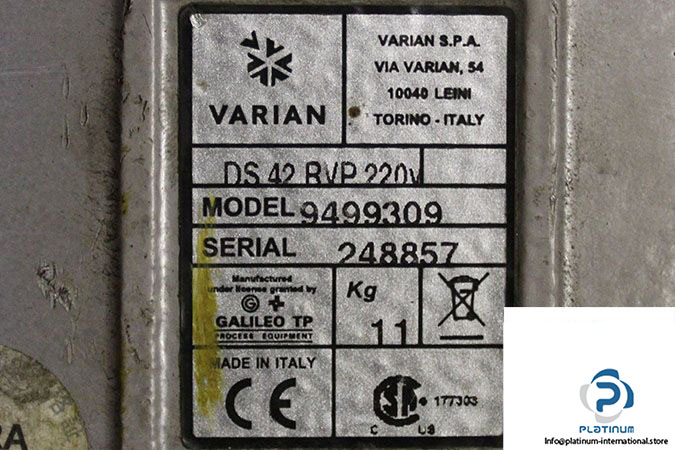

Varian DS 42 Dual Stage Rotary Vane Vacuum Pump

Manufacturer: Agilent Technologies / Varian

Type: Dual Stage Rotary Vane Vacuum Pump

Model: DS42

Nominal Voltage [V]: 220-240

Max. Current [A]: 1.8/2.7

Ultimate Partial Pressure [mbar]: 10^-4

Ultimate Total Pressure [mbar]: 4 x 10^-3

Free Air Displacement [l/min]: 38/45.5

Frequency [Hz]: 50/60

Pumping Speed at 50Hz  [m³/h]: 1.8

Pumping Speed at 60Hz [cfm]: 1.2

Water Vapor Tolerance [mbar]: 15

Water Vapor Capacity [g/h]: 60

Oil Capacity Min/Max [l]: 0.6

Motor Rating 1ph [kW]: 0.4

Nominal Rotation Speed [rpm]: 3480/2280

Inlet Flange [DN]: 16

Exhaust Flange [DN]: 16

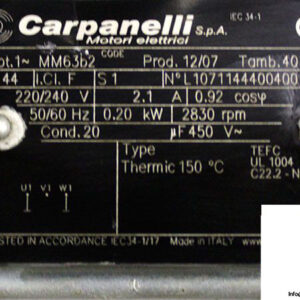

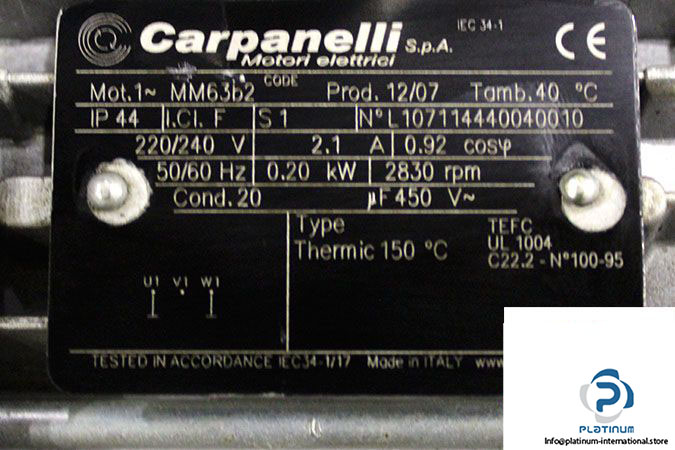

Attachment: Carpanelli MM63B2 Single Phase E-Motor

Manufacturer: Carpanelli

Type: Single Phase E-Motor

Model: MM63B2

Rated Voltage [V]: 220/240

Rated Current [A]: 2.1

Power Factor [%]: 0.92

Rated Power [kW]: 0.2

Rated Speed [rpm]: 2830

Protection Class [IP]: 44

Duty: S1 Cont.

Frequency [Hz]: 50/60

Ambient Temperature [°C]: 40

Insulation Class: F

Weight [kg]: 11.1
