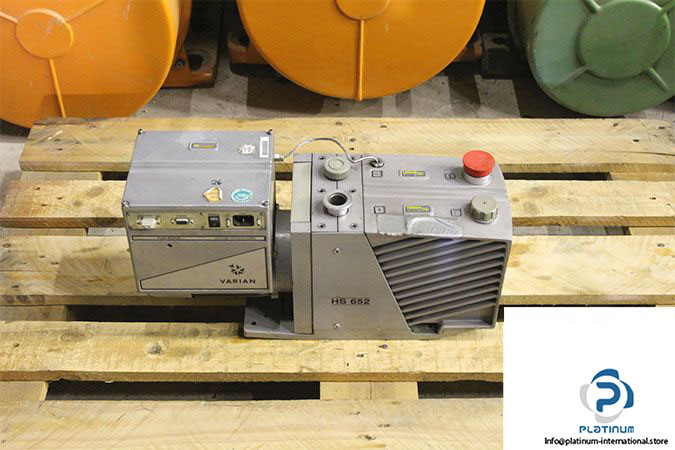

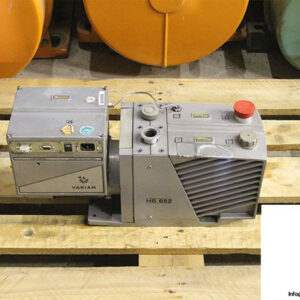

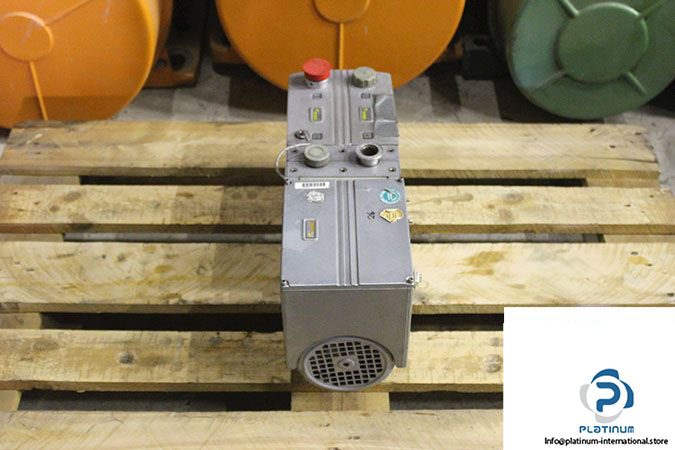

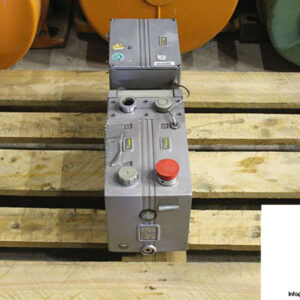

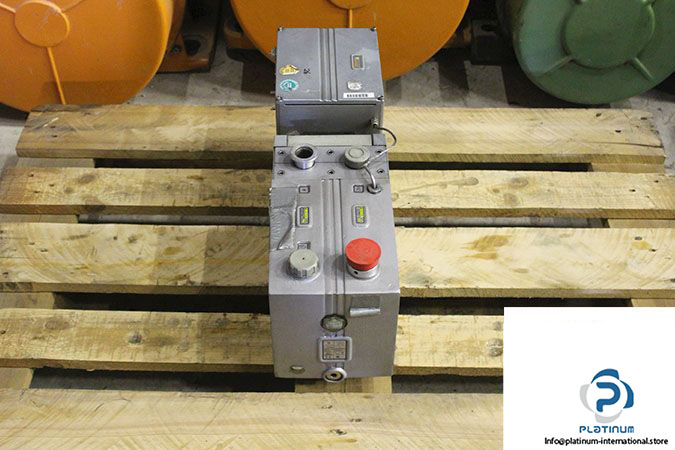

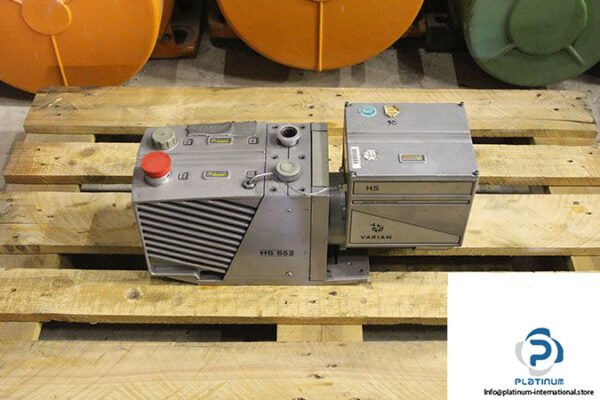

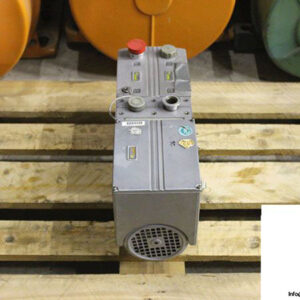

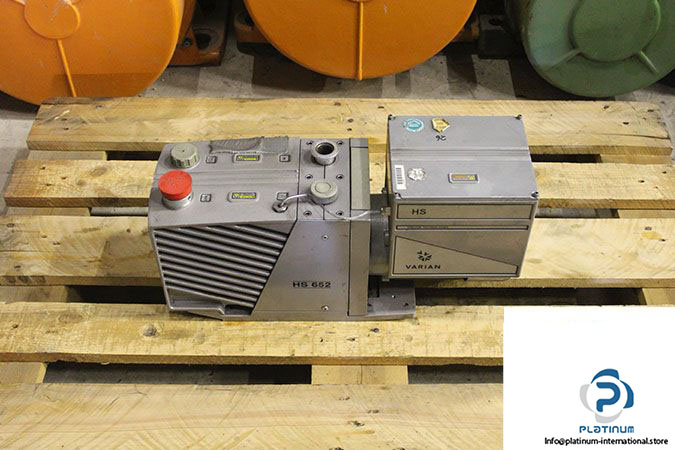

Varian HS 652 Dual Stage Rotary Vane Vacuum Pump
Manufacturer: Agilent Technologies / Varian
Type: Dual Stage Rotary Vane Vacuum Pump

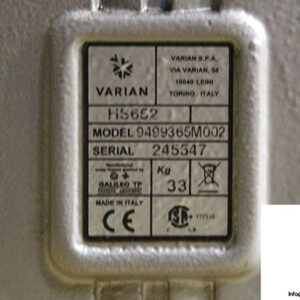

Model: HS652

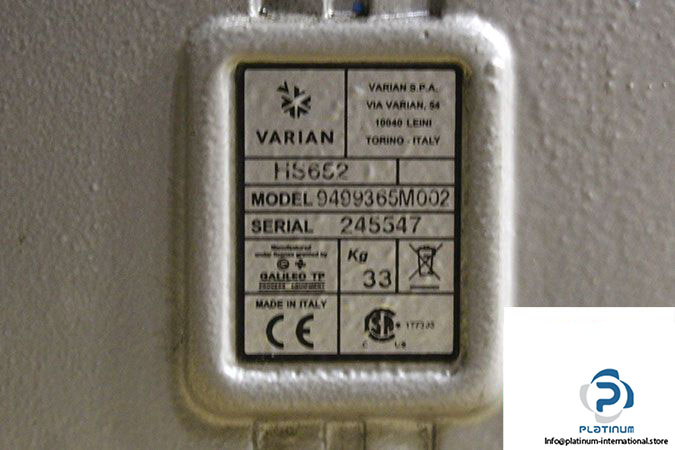

Part Nr.: 9499365M002
Ultimate Partial Pressure [mbar]: 10-4
Ultimate Total Pressure [mbar]: 2 x 10-3
Free Air Displacement [l/min]: 672/672
Frequency [Hz]: 50/60
Pumping Speed at 50Hz [m3/h]: 32
Pumping Speed at 60Hz [m3/h]: 19
Water Vapor Tolerance [mbar]: 30
Water Vapor Capacity [g/h]: 550
Oil Capacity Min/Max [l]: 0.5/1
Motor Rating 3ph [kW]: 0.5/0.5
Nominal Rotation Speed [rpm]: 2000/2000

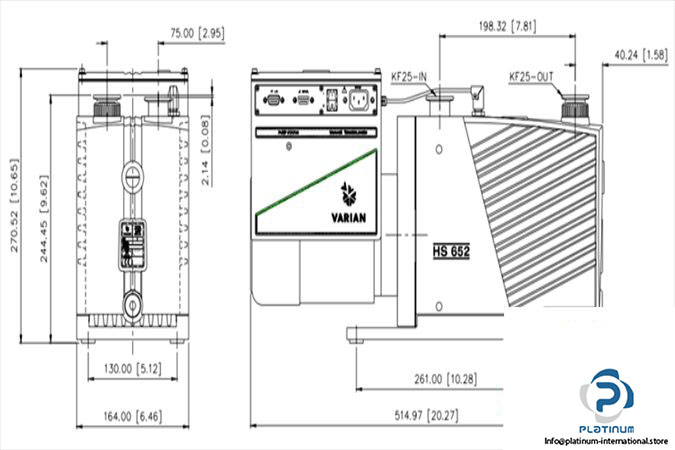

Inlet Flange [DN]: 25
Exhaust Flange [DN]: 25

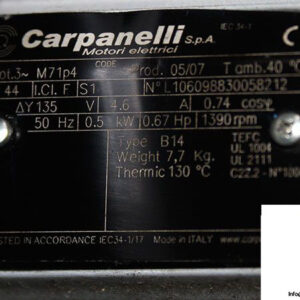

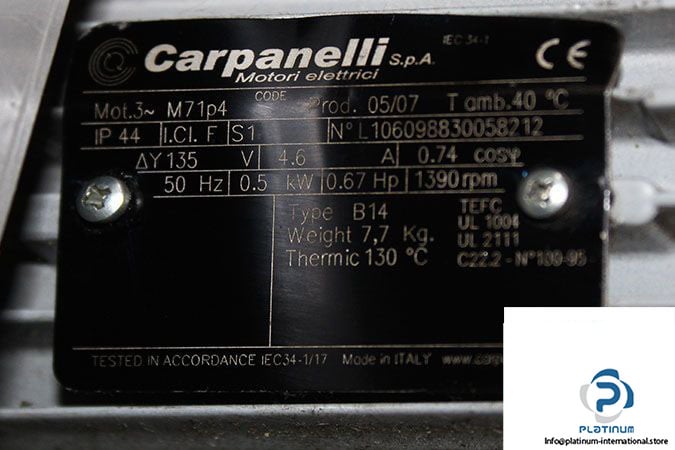

Attachment: Carpanelli M71p4 Three Phase E-Motor
Manufacturer: Carpanelli
Type: Single Phase E-Motor
Model: M71p4
Rated Voltage [V]: 135
Rated Current [A]: 4.6
Power Factor [%]: 0.74
Rated Power [kW]: 0.5
Rated Speed [rpm]: 1390
Protection Class [IP]: 44
Duty: S1 Cont.
Frequency [Hz]: 50
Ambient Temperature [°C]: 40
Insulation Class: F
Weight [kg]: 33.2
