VEB 50/ 100 Electro Hydraulic Thruster
Used
In stock1 unitReady to ship
Electro Hydraulic Thruster
VEB 50/100 electro hydraulic thruster with 100 mm stroke, 500 N holding force, and 3-phase AC motor for continuous industrial operation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

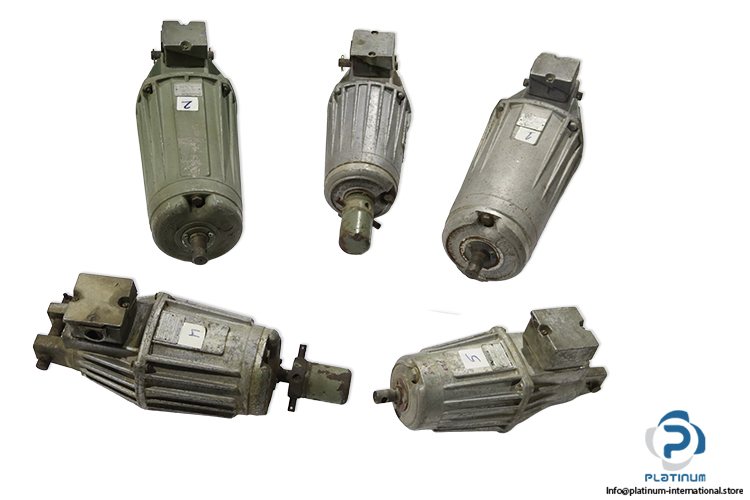

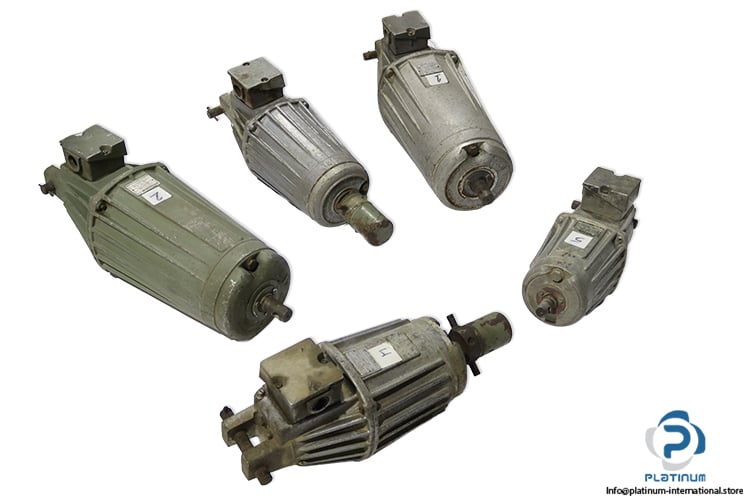

VEB 50/100 Electro Hydraulic Thruster
The VEB 50/100 is an electro hydraulic thruster engineered for controlled linear motion and reliable force generation in industrial systems. It delivers consistent performance with a defined stroke length and is designed for continuous-duty operation under demanding conditions.
Manufacturer: VEB
Type: Electro Hydraulic Thruster
Model: 50 / 100

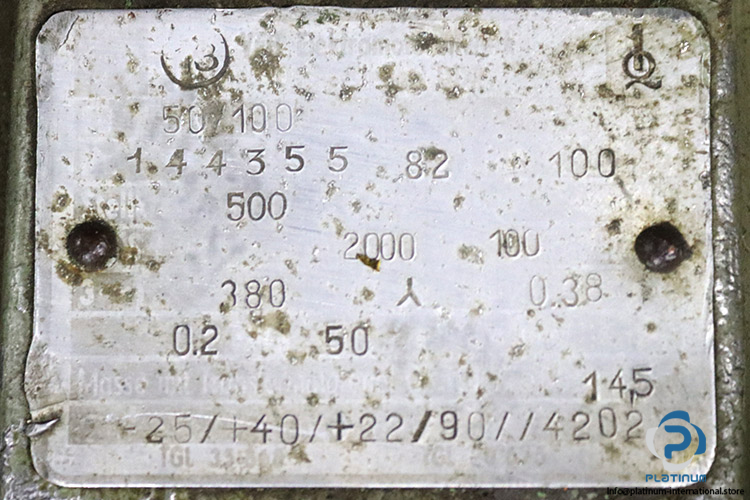

Part No.: 144355 82
Configuration Code: -25 / +40 / +22 / 90 // 4202
Duty Cycle:
Up to 2000 cycles/hour
100% ED
| Stroke | 100 mm |
| Holding Force (Stellkraft) | 500 N |
| Motor Type | 3-Phase AC |
| Rated Voltage | 380 V AC |
| Rated Current | 0.38 A |
| Power | 0.20 kW |
| Frequency | 50 Hz |
| Operating Temperature Range | -25 °C to +40 °C |
