VEB EB 50/100 C50 RS I EXS/0T3 Electro Hydraulic Thruster
Used
In stock1 unitReady to ship
Electro Hydraulic Thruster
VEB electro-hydraulic thruster with 100 mm stroke, 500 N force, and 100% duty cycle, designed for industrial braking and control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
VEB EB 50/100 C50 RS I EXS/0T3 Electro Hydraulic Thruster
The VEB EB 50/100 C50 RS I EXS/0T3 is an electro-hydraulic thruster engineered for precise and reliable actuation in industrial braking and control systems. It is designed for continuous-duty operation with stable force output and consistent stroke performance under demanding conditions.

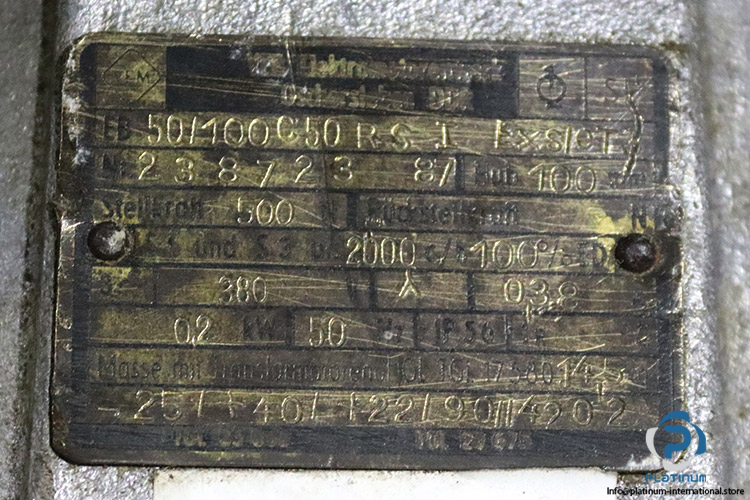

Manufacturer: VEB
Type: Electro Hydraulic Thruster
Model: EB 50/100 C50 RS I EXS/0T3
Part No.: 238723 87
Configuration Code: -25/+40/+22/90//4202
Operating Temperature Range:
| Stroke | 100 mm |
| Force | 500 N |
| Switching Frequency (S3 Operation) | 2000 cycles/hour |
| ED | 100% |
| Standard | TGL 17 580 |
| Motor Type | 3 Phase, Star Connection |
| Voltage | 380 V |
| Current | 0.38 A |
| Power | 0.2 kW |
| Frequency | 50 Hz |
| Protection Class | IP56 |
| Minimum Ambient Temperature | -25 °C |
| Maximum Ambient Temperature | +40 °C |
