Vega Vegator 121 Single Channel Controller
Used
In stock2 unitsReady to ship
88,88$
SINGLE CHANNEL CONTROLLER
VEGA VEGATOR 121 single channel controller with 24 / 230 V AC or 24 / 65 V DC supply, 8 VA power consumption, explosion protection, CO contact, and IP20 protection class.121230v24vACAutomationchannelControllerdcExplosionIndustrialIP20monitoringProcessProtectionSingleVegaVegator
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

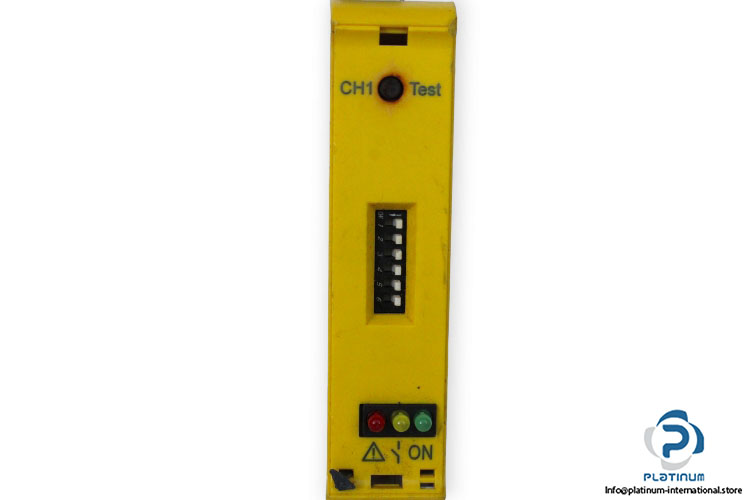

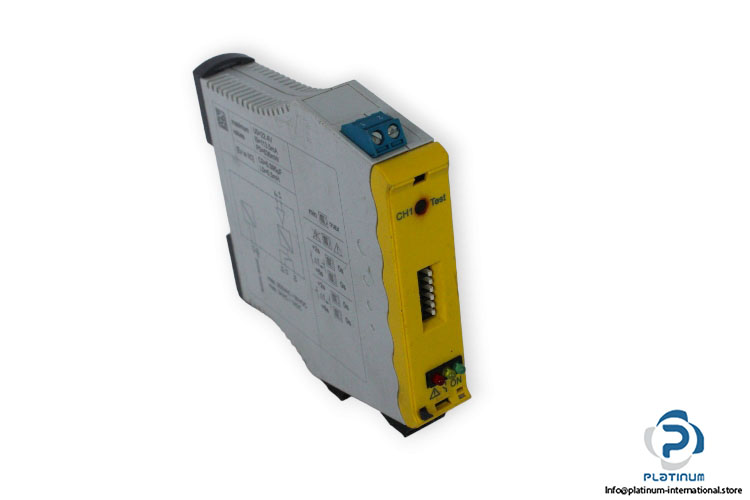

VEGA VEGATOR 121 Single Channel Controller
The VEGA VEGATOR 121 is a reliable single channel controller designed for industrial process monitoring and control. With a wide supply voltage range, low power consumption, and integrated explosion protection, it ensures safe and accurate operation in demanding environments.
Manufacturer: VEGA
Type: Single Channel Controller
Model: VEGATOR 121
| Supply Voltage | 24 / 230 V AC, 24 / 65 V DC |
| Power Consumption | 8 VA |
| Sensor Input | 8 mA / 16 mA |
| Protection Type | Protection of Explosion |
| Contact Configuration | 1 Changeover (CO) |
| Contact Voltage | 253 V AC / 50 V DC |
| Contact Current | 3 A AC, 1 A DC |

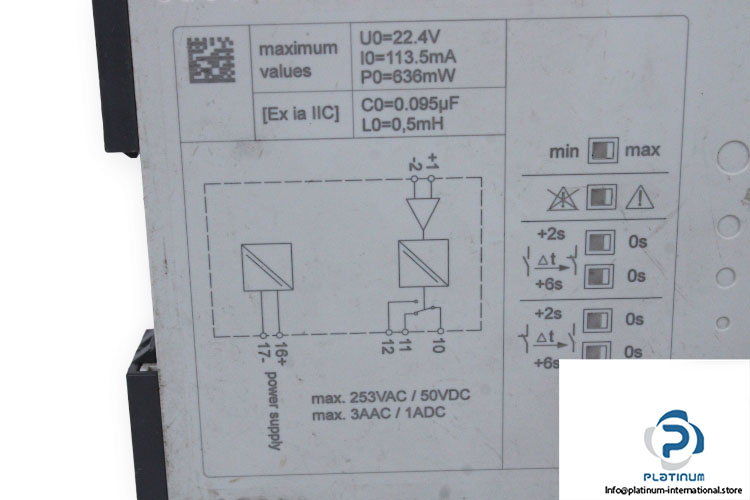

| Maximum Voltage | 22.4 V |
| Maximum Current | 113.5 mA |
| Maximum Power | 636 mW |
| Operating Temperature | -20 / 60 °C |
| Degree of Protection | IP20 |
