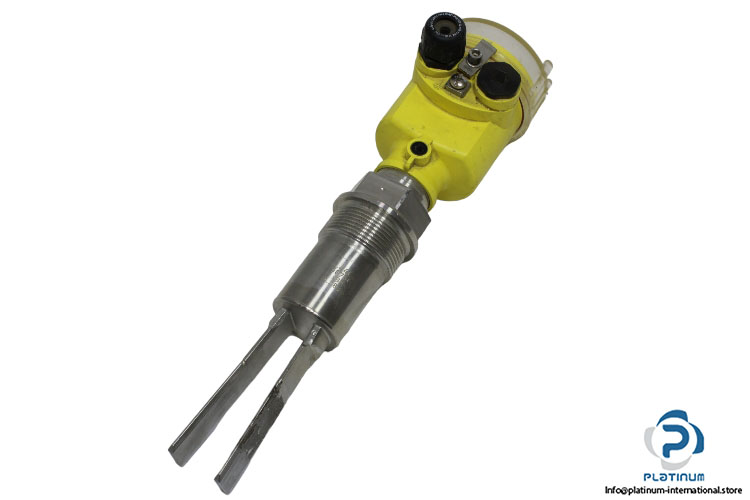

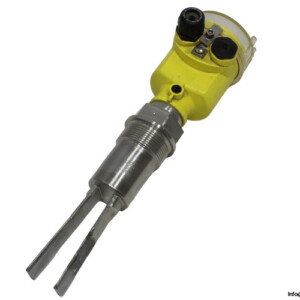

Vega Vegawave S61 WAVES61.EEJ2RA Vibrating Level Switch

Manufacturer: VEGA

Type: VIBRATING LEVEL SWITCH

Model: VEGAWAVE S 61

Order Code: WAVES61.EEJ2RA

Switching voltage: max. 55 V DC

Switching current: max. 400 mA

Reverse current: 0.1 mA

Process pressure: -1 … 16 bar

Power consumption: 1 … 8 VA (AC), approx. 1.3 W (DC

Process connection:  G 11/2″ A 1.4404

Protection: IP 66/IP 67

Output: Relay (DPDT)

Materials, wetted parts: stainless steel 316

Sensor length: 165 mm

Process temperature: -50 … +150 °C

Ambient temperature: -40 … +80 °C
