Vipa IM 053PN Profinet IO Device
Used
In stock1 unitReady to ship
IO Device
A PROFINET IO interface module for System SLIO, designed for modular automation systems requiring reliable Ethernet communication, flexible I/O expansion, and stable power handling.053PNAutomationCommunicationDeviceEthernetIIMIndustrialInterfaceIOModuleØPLCProfinetSlioSystemVipaYaskawa
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

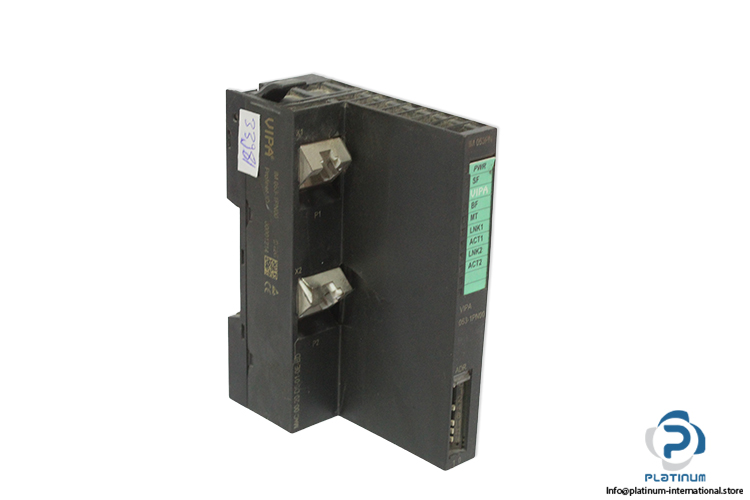

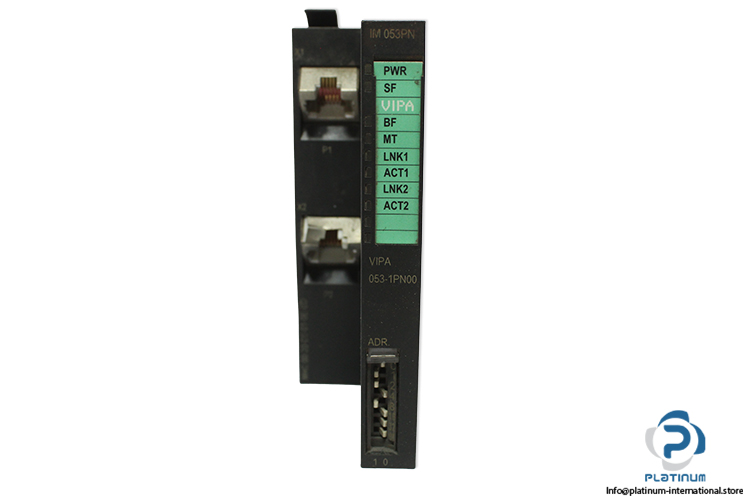

YASKAWA VIPA IM 053PN PROFINET IO Device
A high-performance PROFINET IO device designed for System SLIO, enabling reliable industrial communication and modular I/O expansion. This interface module ensures stable data exchange, flexible system configuration, and dependable operation in automation and control applications. Manufacturer: YASKAWA VIPA
Type: PROFINET IO Device for System SLIO

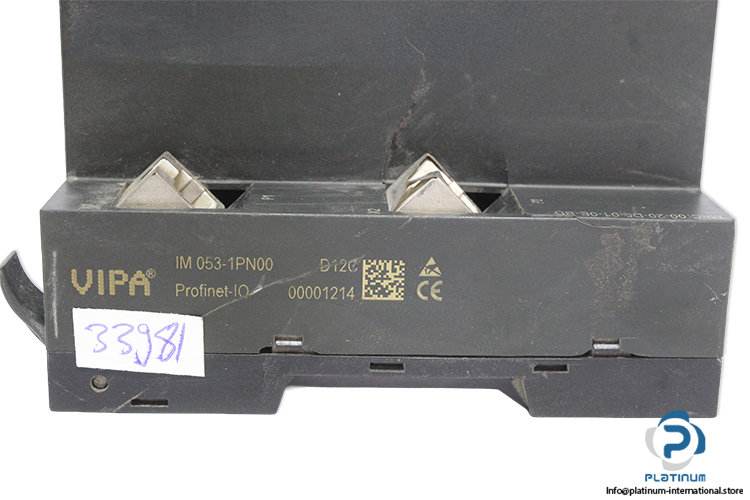

Model: IM 053PN
Order No.: 053-1PN00
MNR: IM 053-1PN00

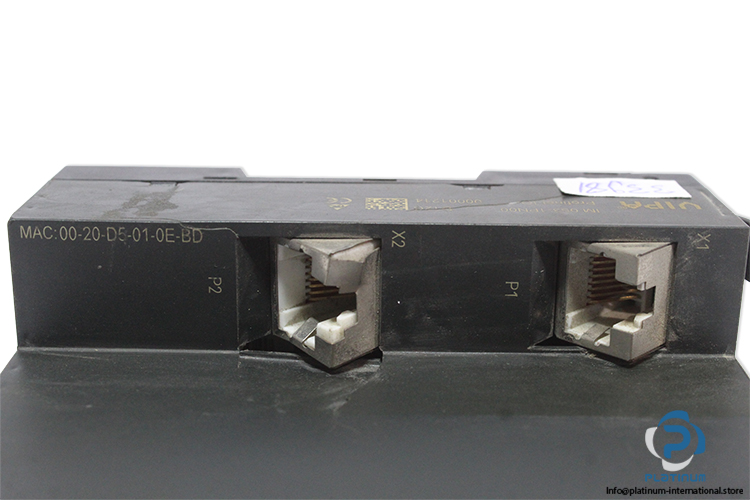

MAC Address: 00-20-DE-01-0E-BD
Code: 00001214
| Rated Power Supply | DC 24 V |
| Permitted Power Supply Range | DC 20.4 / 28.8 V |
| Current Consumption (No-Load) | 95 mA |
| Current Consumption (Rated) | 0.95 A |
| Inrush Current | 3.9 A |
| I²t | 0.14 A²s |
| Max. Current Drain (Backplane Bus) | 3 A |
| Max. Current Drain (Load Supply) | 10 A |
| Power Loss | 3 W |
| Max. Racks | 1 |
| Modules per Rack (Max.) | 64 |
| Digital Modules (Max.) | 64 |
| Analog Modules (Max.) | 64 |
| Fieldbus | PROFINET IO |
| Interface Type | Ethernet 100 MBit |
| Connector | 2 × RJ45 |
| Protection Class | IP20 |
| Operating Temperature | 0 °C to 60 °C |
| Storage / Transport Temperature | -25 °C to +70 °C (EN 60068-2-14) |
| Dimensions (W × H × D) | 48.5 mm × 109 mm × 76.5 mm |
