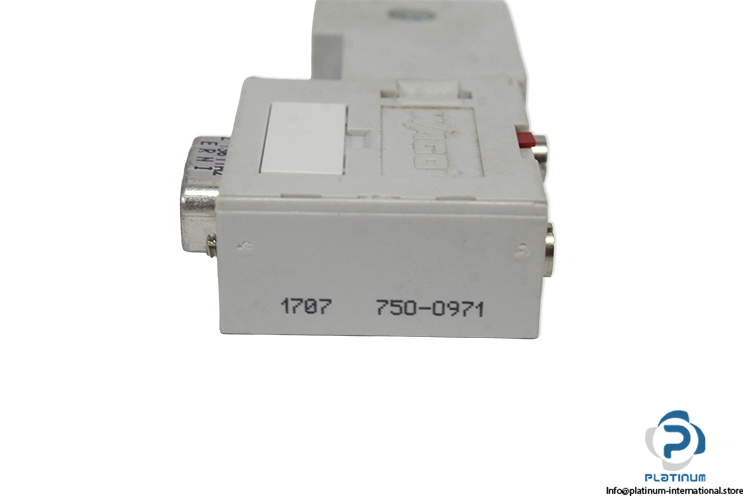

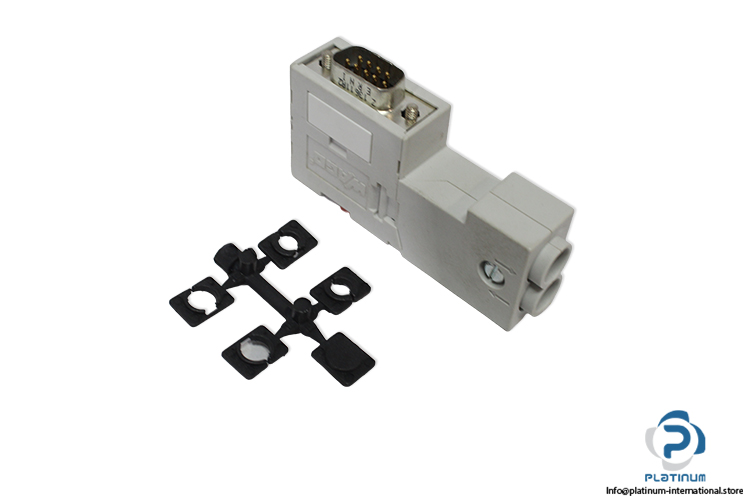

Wago 750-0971 Profibus Fieldbus Connector

In stock1 unitReady to ship

PROFIBUS Fieldbus Connector

WAGO 750-0971 PROFIBUS fieldbus connector with D-sub 9 plug, 12 Mbit/s transmission rate, CAGE CLAMP® terminals, and IP20 protection for industrial communication systems.

Manufacturer
WAGO
SKU
1095747
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Code1707 / 1X07500971
Additional Code02167075009710005553
Connection TypeD-sub 9 Plug
Pole Number9
Communication / FieldbusPROFIBUS
Transmission Rate12 Mbit/s (per PROFIBUS specification)
Supply Voltage4.75 / 5.25 VDC
Input Current5 mA
Connection TypeCAGE CLAMP® Terminal Strip With Locking Slide (218 Series)
Solid Conductor0.08 / 0.5 mm² / 28 / 20 AWG
Strip Length5 / 6 mm / 0.2 / 0.24 Inches
Width43.6 mm / 1.717 Inches
Height16.2 mm / 0.638 Inches
Depth72.8 mm / 2.866 Inches
Connectable Sheathed Cable Diameter8.5 mm
Cable Glands (Number)2
Housing MaterialPC-V0
Ambient Temperature (Operation)0 / +60 °C
Ambient Temperature (Storage)-25 / +85 °C
Protection TypeIP20
ConditionNew
Stock KeyJO-004
Wago 281-604 Terminal Block
New

WAGO

Wago 281-604 Terminal Block

SKU: 1093560

Qty: 1

Available through quotation
Wago 20-10 3 Conductors Splicing Connector
New

WAGO

Wago 20-10 3 Conductors Splicing Connector

SKU: 1098355

Qty: 1

Available through quotation
Wago 281-483 Jumper
New

WAGO

Wago 281-483 Jumper

SKU: 1092222

Qty: 1

Available through quotation
Wago 285-634 2-CONDUCTOR Through Terminal Block
New

WAGO

Wago 285-634 2-CONDUCTOR Through Terminal Block

SKU: 1092208

Qty: 14

9,99$
Wago 24-12 3 Conductors Splicing Connector
New

WAGO

Wago 24-12 3 Conductors Splicing Connector

SKU: 1098356

Qty: 1

Available through quotation

Related Products

Wago 750-400 2-CHANNEL Digital Input
Used

Wago 750-400 2-CHANNEL Digital Input

SKU: 965606

Qty: 4

30,00$
Allen-Bradley 1769-OB16 I/O Module
UsedAvailable on request

Allen-Bradley 1769-OB16 I/O Module

SKU: 984157

Available on request

120,00$
Siemens 6EP1 334-2BA00 Power Supply Module
New

SIEMENS

Siemens 6EP1 334-2BA00 Power Supply Module

SKU: 964115

Qty: 3

375,00$
Siemens PTM1.2Y10S-M Positioning Module With TWO Outputs AND Manual Operation
Used

SIEMENS

Siemens PTM1.2Y10S-M Positioning Module With TWO Outputs AND Manual Operation

SKU: 998350

Qty: 1

44,66$
Phoenix Contact Mini MCR-SL-PT100-UI-NC Temperature Signal Conditioner
New

PHOENIX CONTACT

Phoenix Contact Mini MCR-SL-PT100-UI-NC Temperature Signal Conditioner

SKU: 980468

Qty: 1

119,99$
Platinum International
Surplus, New & Used - Always Reliable
WAGO SKU: 1095747
Wago 750-0971 Profibus Fieldbus Connector
Wago 750-0971 Profibus Fieldbus Connector
PriceOn Request
Stock1 In stock
ManufacturerWAGO
CategoryCables & Connectors
ConditionNew
SKU1095747

PROFIBUS Fieldbus Connector

WAGO 750-0971 PROFIBUS fieldbus connector with D-sub 9 plug, 12 Mbit/s transmission rate, CAGE CLAMP® terminals, and IP20 protection for industrial communication systems.

Description
Code1707 / 1X07500971
Additional Code02167075009710005553
Connection TypeD-sub 9 Plug
Pole Number9
Communication / FieldbusPROFIBUS
Transmission Rate12 Mbit/s (per PROFIBUS specification)
Supply Voltage4.75 / 5.25 VDC
Input Current5 mA
Connection TypeCAGE CLAMP® Terminal Strip With Locking Slide (218 Series)
Solid Conductor0.08 / 0.5 mm² / 28 / 20 AWG
Strip Length5 / 6 mm / 0.2 / 0.24 Inches
Width43.6 mm / 1.717 Inches
Height16.2 mm / 0.638 Inches
Depth72.8 mm / 2.866 Inches
Connectable Sheathed Cable Diameter8.5 mm
Cable Glands (Number)2
Housing MaterialPC-V0
Ambient Temperature (Operation)0 / +60 °C
Ambient Temperature (Storage)-25 / +85 °C
Protection TypeIP20
ConditionNew
Stock KeyJO-004
Technical Specifications
Weight0,04 kg
ManufacturerWAGO
Type of ProductPROFIBUS FIELDBUS CONNECTOR
Model750-0971
Shelf No.260203
