Wago 750-474 2-CHANNEL Analog Input
New
Available on request
75,00$
2-Channel Analog Input Module
WAGO 750-474 analog input module with 2 current inputs, DC 4 / 20 mA signal range, 5 V supply, IP20 protection, and robust polycarbonate housing.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

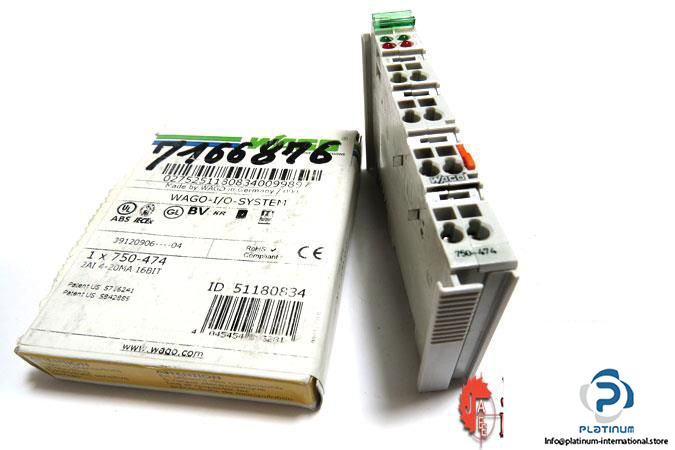

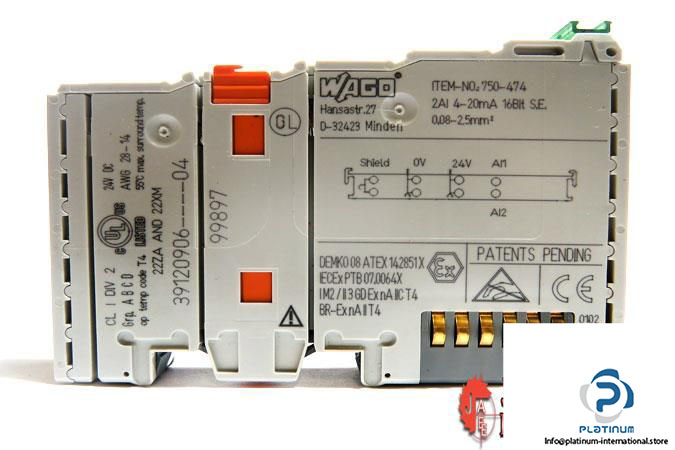

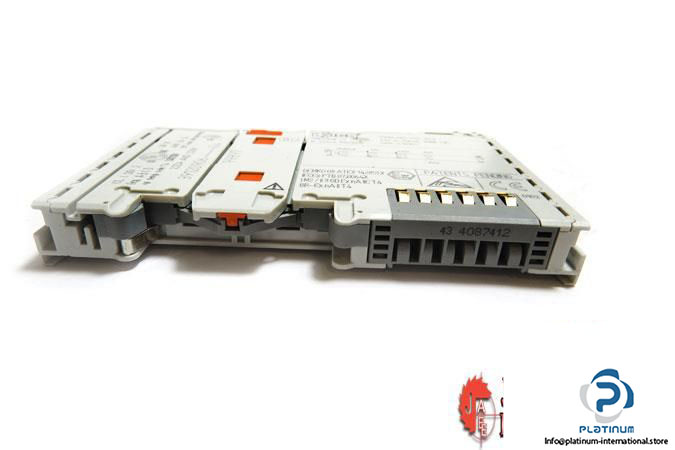

WAGO 750-474 2-Channel Analog Input Module
The WAGO 750-474 is a compact and reliable 2-channel analog input module designed for industrial automation systems. With high accuracy and robust protection features, it ensures safe and efficient signal processing for demanding applications.
Manufacturer: WAGO
Type: 2-Channel Analog Input
Model: 750-474
Ref No.: 39120906 04 /99897/CL I DIV 2
| No. of Analog Inputs | 2 |
| Conductor Connection | 2 to 4 |
| System Supply Voltage | DC 5 V; via data contacts |
| Current Consumption (System Supply 5 V) | 75 mA |
| Type of Signal | Current |
| Signal Current Range | DC 4 / 20 mA |
| Input Voltage | Max. 24 V |
| Input Resistance | Max. 220 Ω |
| Overvoltage Protection | 30 V with polarity reversal protection |
| Conversion Time | 80 ms |
| Isolation | 500 V system/supply |
| Operating Temperature | 0 / 55 °C |
| Protection | IP20 |
| Dimensions | 12 x 100 x 69 mm |
| Housing Material | Polycarbonate; Polyamide 6.6 |
