Wago 750-474 2-CHANNEL Analog Input
Used
In stock5 unitsReady to ship
Analog Input Module
WAGO 750-474 2-channel analog input module with DC 5 V supply, 4 / 20 mA signal range, 80 ms conversion time, IP20 protection, and compact housing for industrial automation.
New
Available on request 75,00$
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

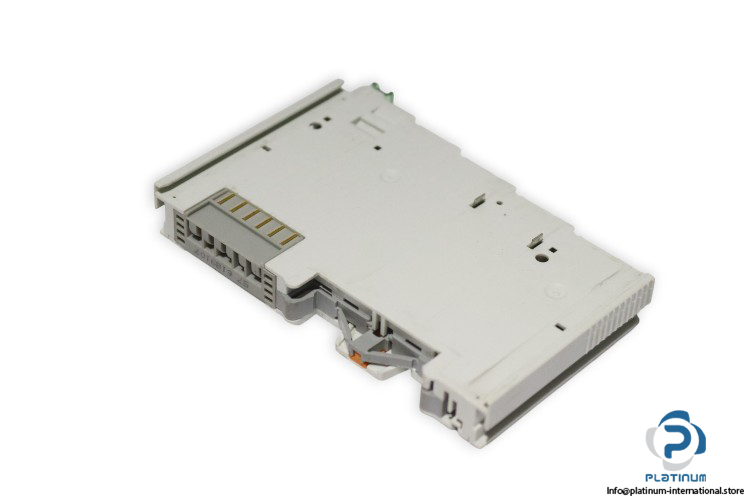

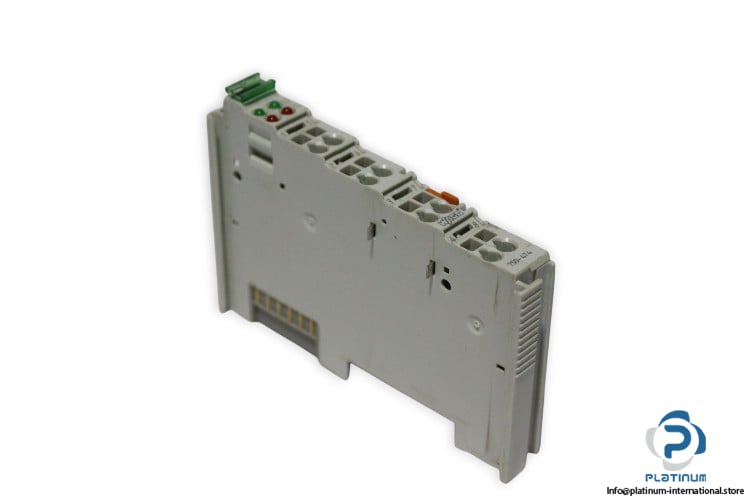

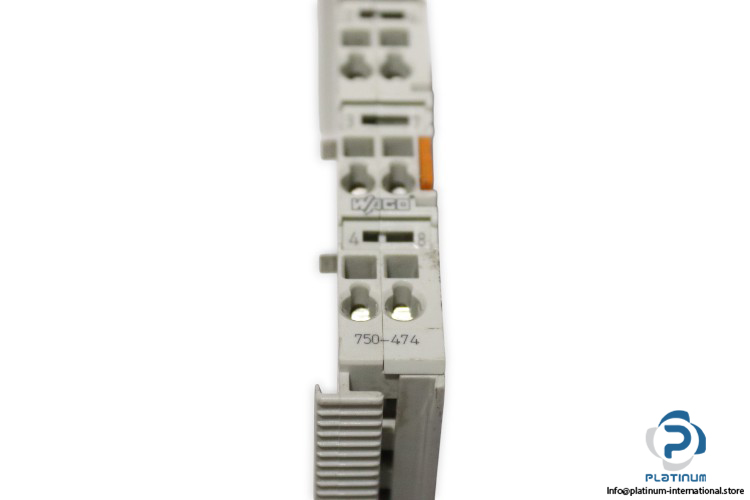

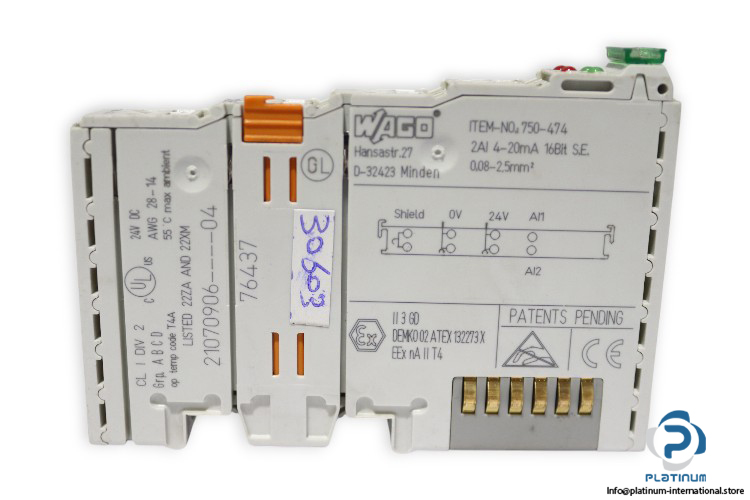

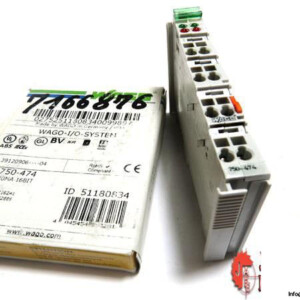

WAGO 750-474 2-Channel Analog Input
The WAGO 750-474 is a compact and reliable 2-channel analog input module designed for precise signal acquisition in industrial automation systems. Built with high-quality housing materials, it ensures accurate performance, safety, and durability under demanding operating conditions.
Manufacturer: WAGO
Type: 2-Channel Analog Input
Model: 750-474
Ref No.: 21070906 04 / 76437 / CL I DIV 2
| No. of Analog Input | 2 |
| Conductor Connection | 2 to 4 |
| System Supply Voltage | DC 5 V; via data contacts |
| Current Consumption, System Supply (5 V) | 75 mA |
| Type of Signal | Current |
| Type of Signal Current | DC 4 / 20 mA |
| Input Voltage | max. 24 V |
| Input Resistance | max. 220 Ω |
| Overvoltage Protection | 30 V polarity reversal protection |
| Conversion Time | 80 ms |
| Isolation | 500 V system/supply |
| Operating Temperature | 0 / 55 °C |
| Protection | IP20 |
| Dimensions | 12 x 100 x 69 mm |
| Housing Material | Polycarbonate; polyamide 6.6 |
