Wago 750-960 Profibus Fieldbus Connector
New
In stock24 unitsReady to ship
PROFIBUS Fieldbus Connector
Wago 750-960 PROFIBUS fieldbus connector with 9 poles, CAGE CLAMP® connection, 4.75“5.25 V DC supply, and IP20 protection for industrial automation systems.750-9609AutomationCageClampCommunicationComponentConnectorFieldbusIndustrialNetworkPoleProfibusterminalWago
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

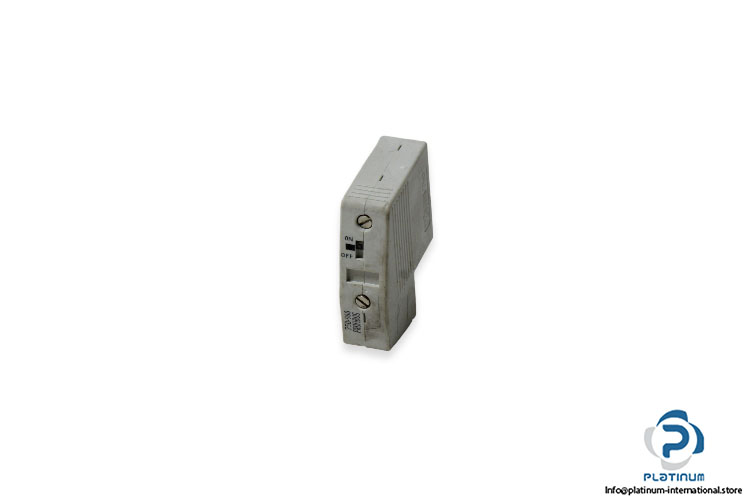

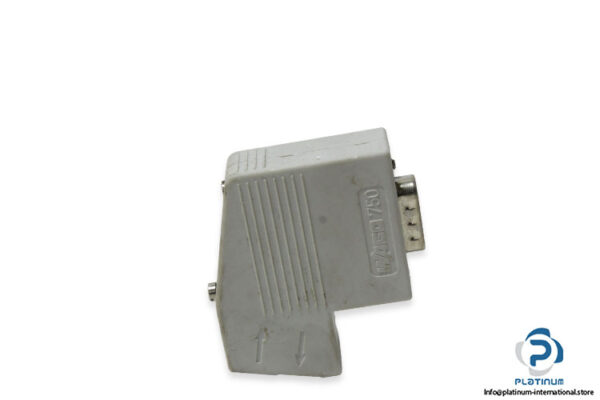

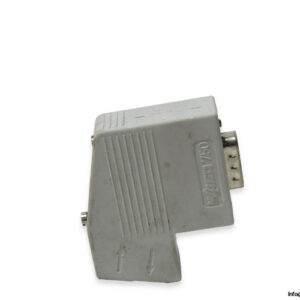

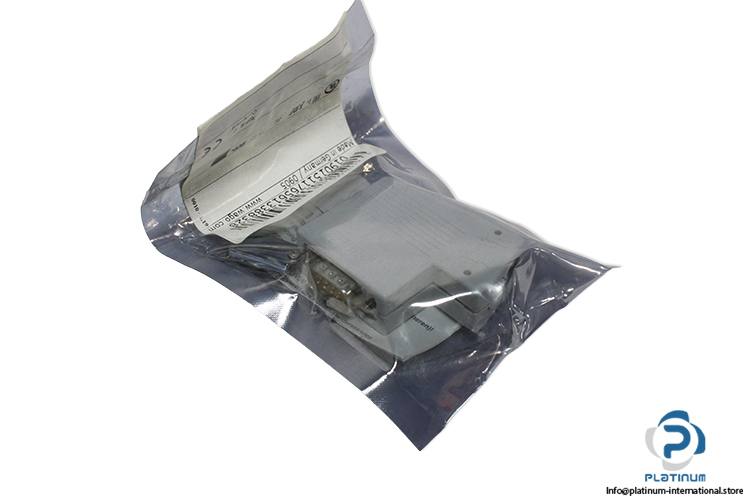

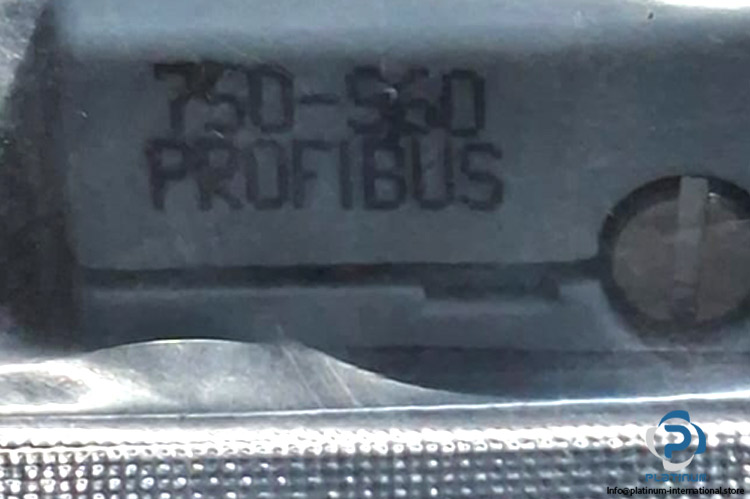

Wago 750-960 PROFIBUS Fieldbus Connector
The Wago 750-960 PROFIBUS Fieldbus Connector is designed for reliable and secure fieldbus communication in industrial automation systems. It ensures stable data transmission, easy installation, and robust performance in control and networking applications.
Manufacturer: Wago
Type: PROFIBUS Fieldbus Connector
Model: 750-960

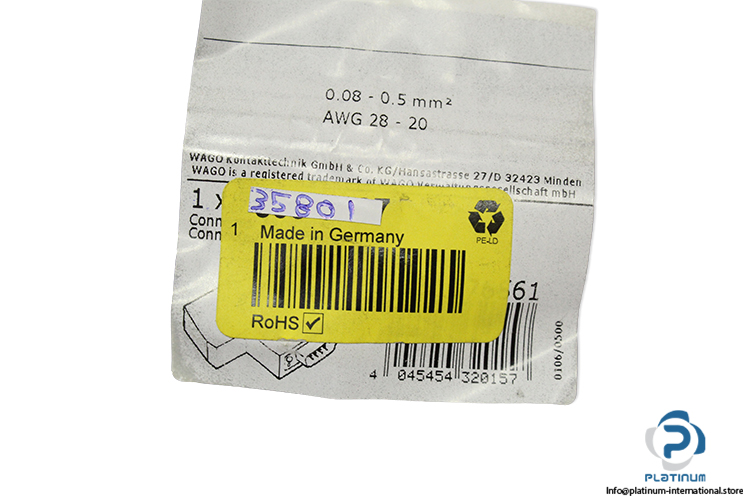

Serial Number: 4 045454320157

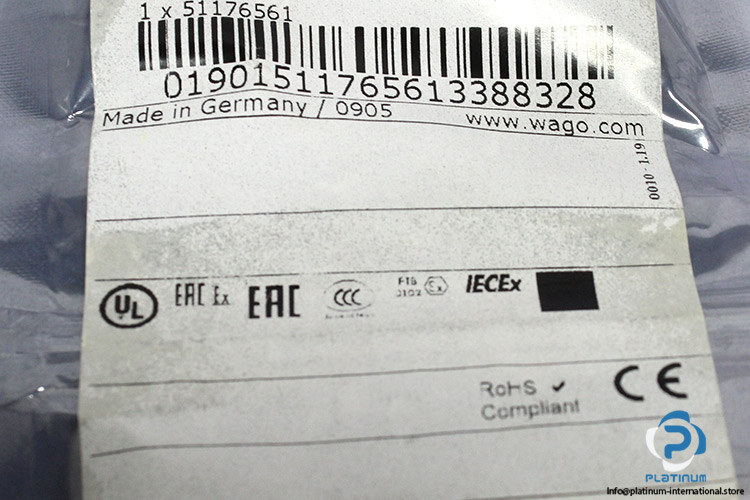

Code: 1x51176561 / 01901511765613388328
| Power Supply | 4.75 V / 5.25 V DC |
| Number of Poles | 9 Poles |
| Max. Current Consumption (Internal) | 5 mA |
| Fixing Screw | UNC-2 A 4-40 |
| Max. Tightening Torque | 0.4 Nm |
| Housing Material | PA66-105-V2 |
| Wire Connection | CAGE CLAMP® Terminal Strips With Locking |
| Operating Temperature | 0°C / +60°C |
| Degree Of Protection | IP20 |
| Dimensions | 54 x 45 mm |
