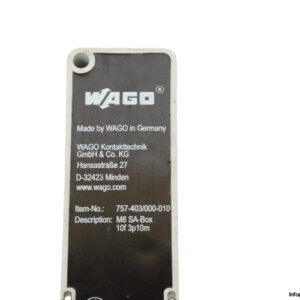

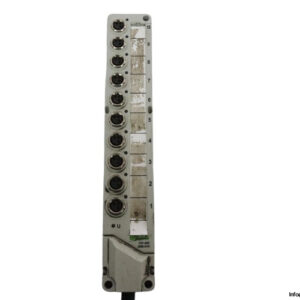

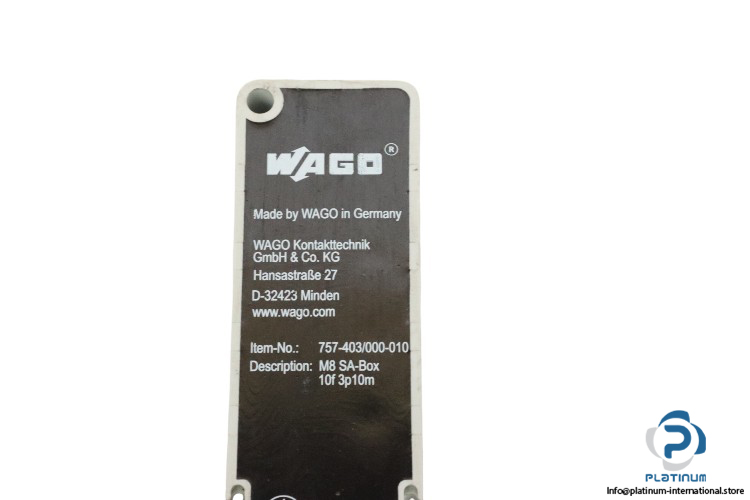

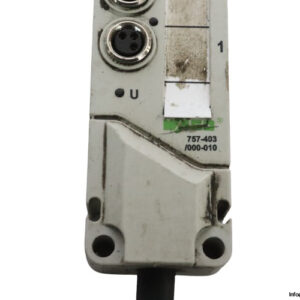

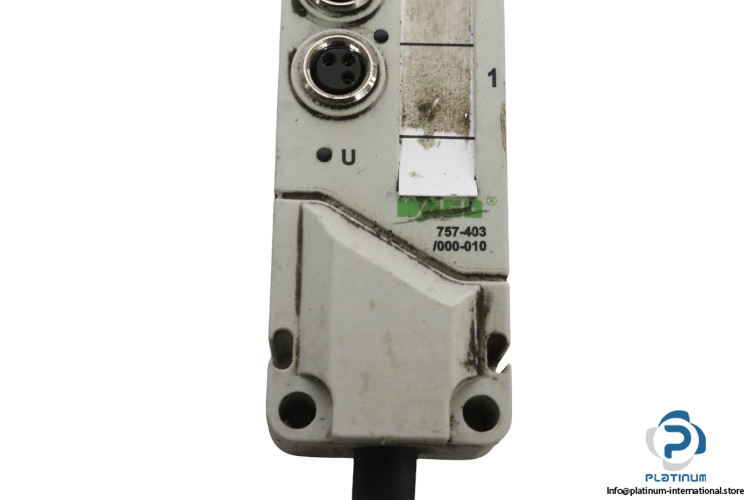

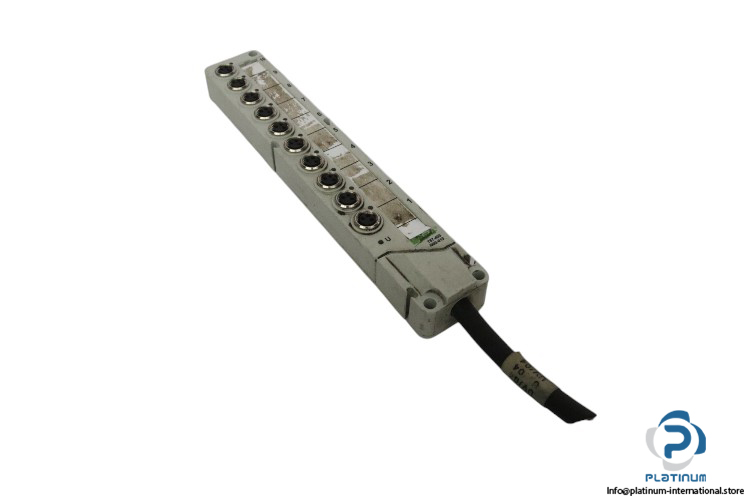

Wago 757-403/000-010 Sensor/Actuator BOX
The WAGO 757-403/000-010 Sensor/Actuator Box offers reliable sensor/actuator connection with 10 x M8 socket inputs, IP68 protection, 500V electrical isolation, and a 10m cable for industrial automation applications.

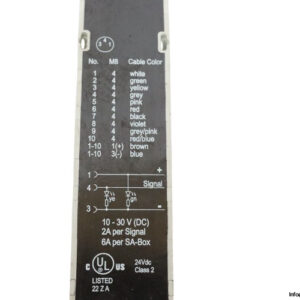

WAGO 757-403/000-010 Sensor/Actuator Box
The WAGO 757-403/000-010 Sensor/Actuator Box is a high-performance industrial component designed to facilitate the connection and communication between sensors and actuators. This versatile box offers excellent durability and functionality, making it ideal for use in harsh industrial environments with its robust construction and high protection class.
- Manufacturer: WAGO
- Type: Sensor/Actuator Box
- Model: 757-403/000-010
Technical Specifications:
- Contact Resistance (max.): 0.01Ω
- Supply Voltage: 10 / 30 VDC; Rated voltage: 32 V ~ rms
- Current Carrying Capacity (Signal Connections): 2A
- Current Carrying Capacity (Supply Connections): 6A
- Rated Value of Electrical Isolation: 500V
- Insulation Resistance: 109 Ω
- Signal Characteristics: PNP
- Indicators: LED yellow: Signal status (1 x per contact); LED (U) green: Sensor/actuator box status

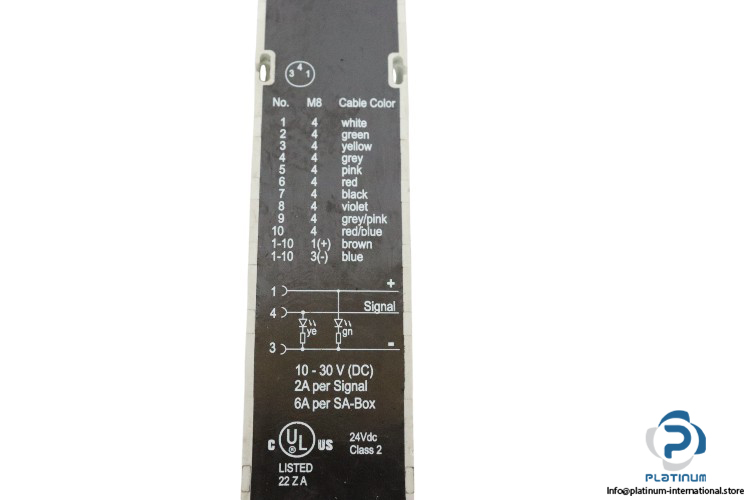

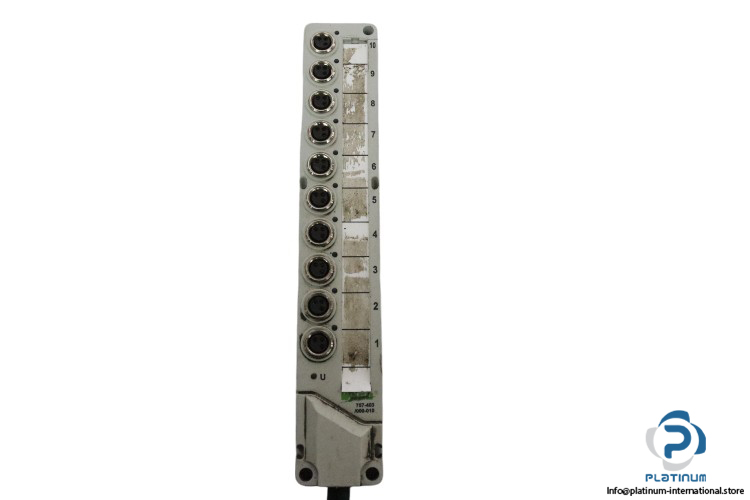

- Connection Technology: Inputs/Outputs: 10 x M8 socket; 3-pole
- Connection Technology (Trunk Cable): 1 x Fixed connecting cable
- Length of Connection Cable: 10m
- Cable Design: Wire Cross-section: 0.34 mm²; Wire Cross-section: 0.75 mm²
- Mounting Type: Screw mounting
- Degree of Protection: IP68
- Housing Material: PA 66 (UL 94 V0); RAL 7035; Silicon and Halogen free
- Ambient Temperature (Operation): -25 / +80 °C
- Dimensions (HXWXD): 20 x 30 x 175 mm
The WAGO 757-403/000-010 Sensor/Actuator Box offers an excellent combination of high performance, reliability, and rugged construction, making it a perfect choice for industrial automation and control applications. Its IP68 rating ensures that it is dust-tight and waterproof, providing continuous protection even in extreme environments.
