Wago 787-712 Power Supply
Used
In stock1 unitReady to ship
Power Supply
WAGO 787-712 EPSITRON ECO Power single-phase power supply with 24 VDC output, 60 W capacity, 2.5 A current, wide input voltage range, and compact industrial design.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

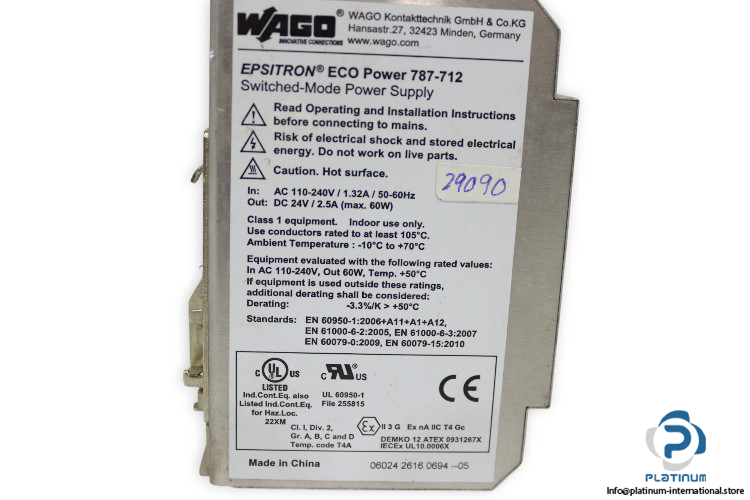

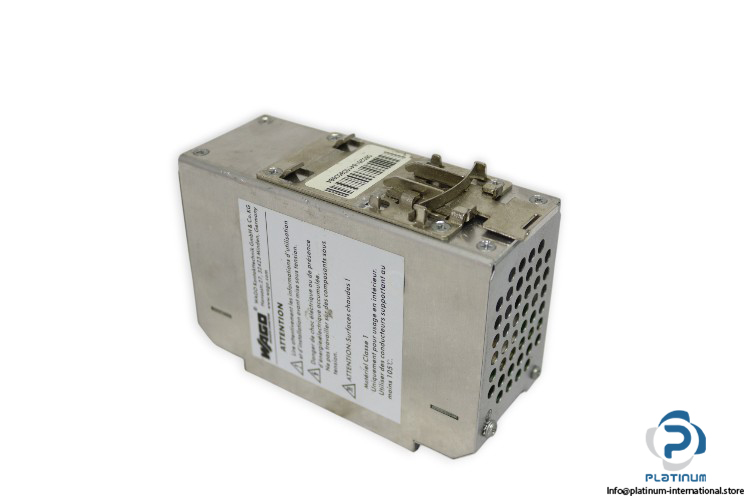

WAGO 787-712 Power Supply
The WAGO 787-712 from the EPSITRON ECO Power series is a compact and efficient single-phase power supply designed for reliable industrial applications. It provides stable 24 VDC output with adjustable voltage range, ensuring dependable performance across varying load conditions.
Manufacturer: WAGO
Type: Power Supply
Model: 787-712
Series: EPSITRON ECO Power
| Phases | 1 |
| Nominal Input Voltage (Ui nom) | 1 x 100 / 240 VAC / 1 x AC 110 / 240 V |
| Input Voltage Range | 1 x 90 / 264 VAC; 90 / 373 VDC |
| Nominal Mains Frequency Range | 50 / 60 Hz |
| Input Current (Ii) | 1.32 A |
| Inrush Current | 30 A |
| Power Factor | 0.5 (230 VAC) |
| Power Factor Correction (PFC) | Passive |
| Mains Failure Hold-up Time | 20 ms (230 VAC) |
| Nominal Output Voltage (Uo nom) | 24 VDC (SELV) |
| Output Voltage Range | 22 / 28 VDC (adjustable) |
| Default Setting | DC 24 V |
| Nominal Output Current (Io nom) | 2.5 A (24 VDC) |
| Nominal Output Power | 60 W |
| Deviation | 1 % |
| Residual Ripple | 100 mV (peak-to-peak) |
| Internal Fuse | F 2.5 A / 250 VAC |
| Pre-fuse (Required) | External DC fuse for DC input voltage |
| Backup Fuse (Recommended) | Circuit breaker 10 A / 16 A; Tripping characteristic: B or C |
| Ambient Temperature | -10 °C to +70 °C |
