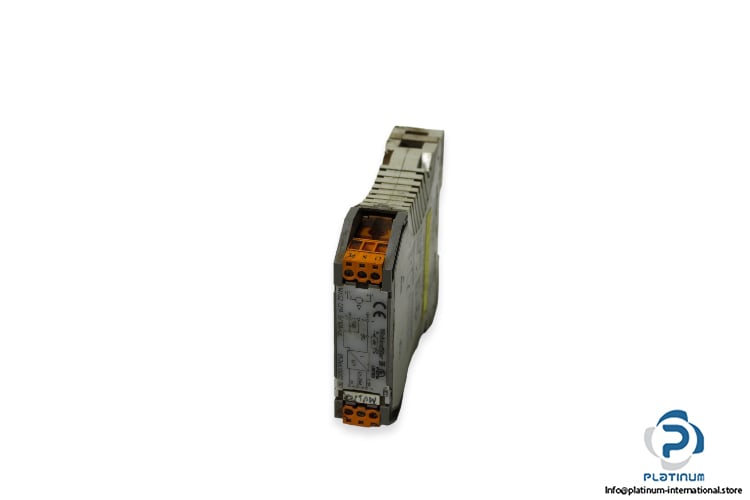

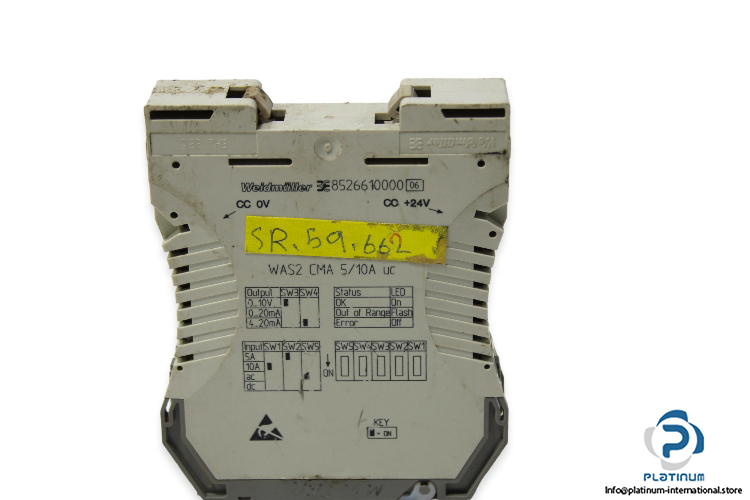

WEIDMULLER WAS2 CMA 5/10A UC Current monitoring

Manufacturer: Weidmuller

Type: Current monitoring

Model: WAS2 CMA 5/10A UC

Art No.: 8526610000

Supply voltage: 24 V DC ± 10 %

Current consumption: 50 mA @ IOUT = 20 mA

Number of inputs: 1

Input current: 0 … 5 A AC/DC, 0 … 10 A AC/DC

Diameter of cable feed-through: 8 mm

Number of outputs: 1

Output voltage: 0 … 10 V

Output current: 4 … 20 mA

Type of connection: Screw connection

Galvanic isolation: 2-way isolator

Operating Temperature: 0 °C … +50 °C

Dimensions: 92.4 x 22.5 x 112.4 mm
