Weidmuller WPE 10 Terminal Block
New
In stock10 unitsReady to ship
Terminal Block
WEIDMULLER WPE 10 protective earth terminal block with screw connection technology, Wemid insulation material, and TS 35 DIN rail mounting for reliable industrial grounding applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

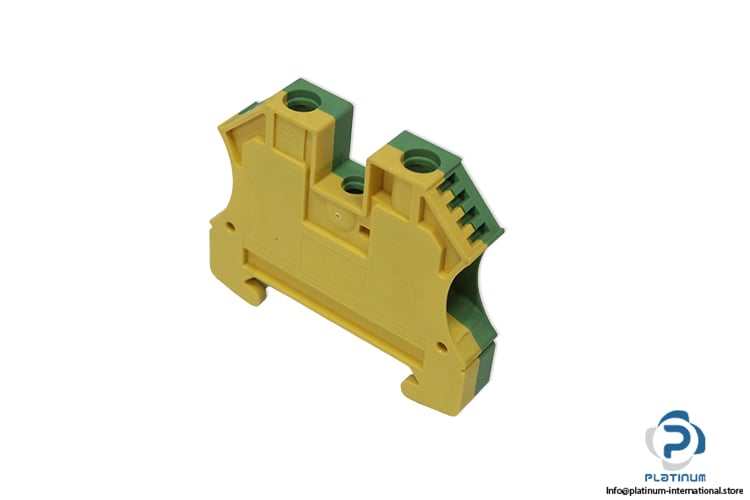

WEIDMULLER WPE 10 Terminal Block
The WEIDMULLER WPE 10 is a protective earth (PE) terminal block designed for secure grounding connections in industrial electrical installations. It features screw connection technology, Wemid insulation material, and compatibility with TS 35 DIN mounting rails.
Manufacturer: WEIDMULLER
Type: Terminal Block

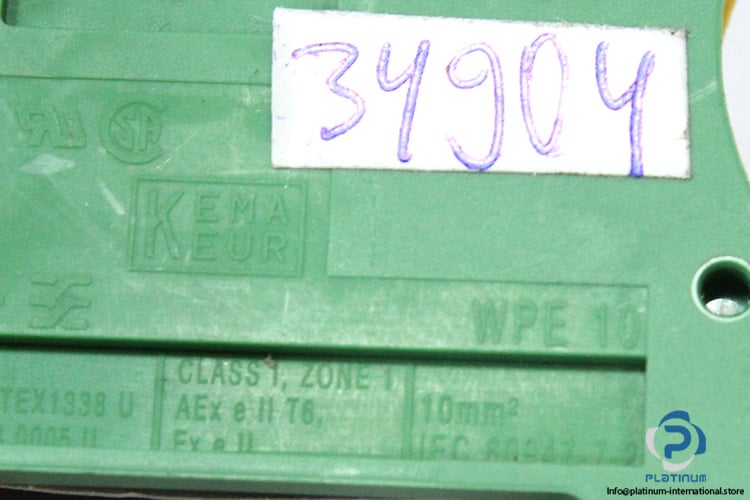

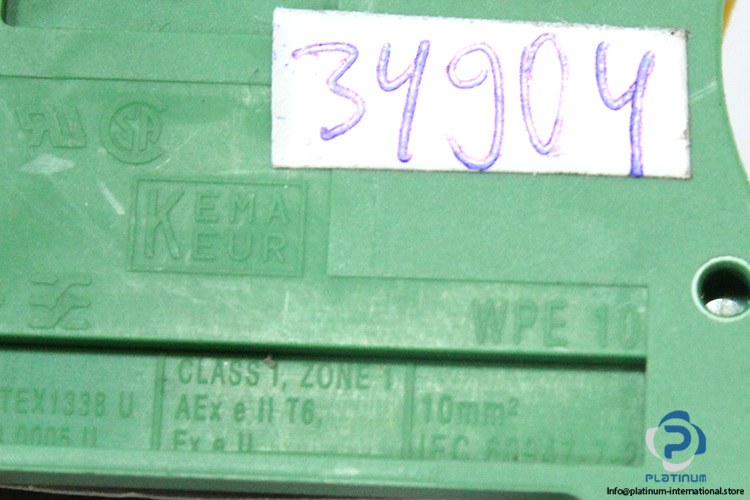

Model: WPE 10
Order No.: 1010300000
Class: 1
| Version | PE terminal, Screw connection, Green/yellow, 10 mm², 800 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid |
| Basic Material | Wemid |
| Colour | Green/yellow |
| UL 94 Flammability Rating | V-0 |
| Number Of Potentials | 1 |
| Number Of Levels | 1 |
| Number Of Clamping Points Per Level | 2 |
| Number Of Potentials Per Tier | 1 |
| Blade Size | 1.0 x 5.5 mm |
| Clamping Range, Max. | 16 mm² |
| Clamping Range, Min. | 1.31 mm² |
| Clamping Screw | M 4 |
| TS 35 Offset | 32 mm |
| Standards | IEC 60947-7-2 |
| Wire Connection Cross Section AWG, Max. | AWG 6 |
| Wire Connection Cross Section AWG, Min. | AWG 16 |

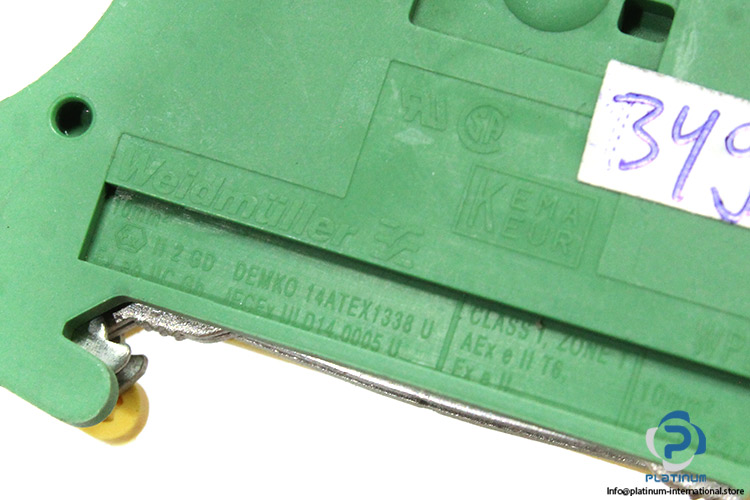

| Certificate No. (ATEX) | DEMKO14ATEX1338U |
| Certificate No. (IECEX) | IECEXULD14.0005U |
| Wire Cross Section Max. (ATEX) | 10 mm² |
| Wire Cross Section Max. (IECEX) | 10 mm² |
| Marking EN 60079-7 | Ex eb II C Gb |
| Ex 2014/34/EU Label | II 2 G D |
| Depth | 46.5 mm |
| Height | 56 mm |
| Width | 9.9 mm |
| Ambient Temperature | -5 °C / 40 °C |
