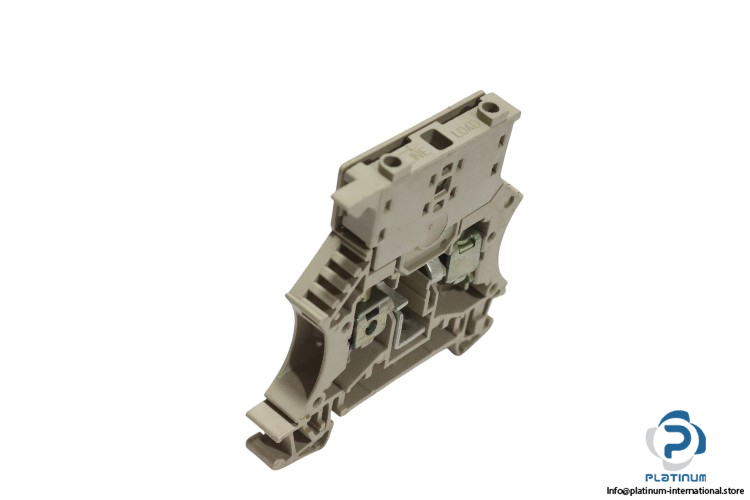

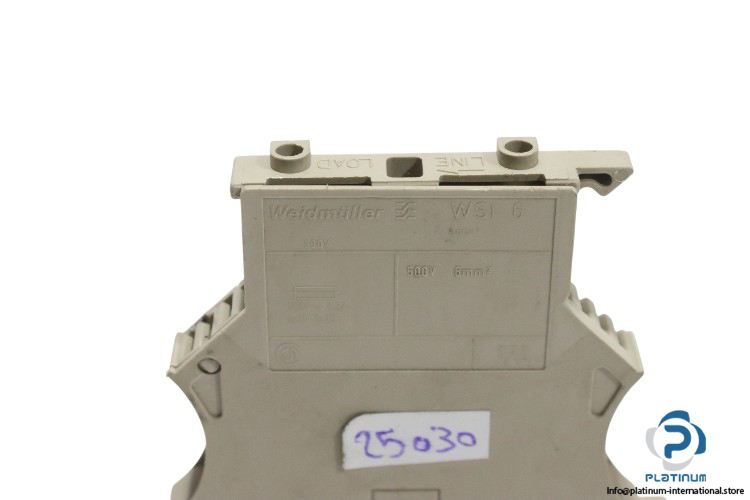

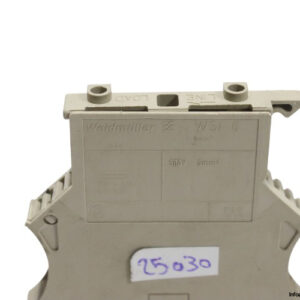

Weidmuller WSI 6 Fuse Terminal Block

Weidmuller WSI 6 Fuse Terminal Block

The Weidmuller WSI 6 is a robust fuse terminal block designed for secure and efficient circuit protection in industrial applications. This version features a screw connection and fuse isolator configuration, making it ideal for panel installations requiring manual fuse access and safety. It supports a rated voltage of 500V and current of up to 6.3A, with snap-on mounting for quick and reliable installation.

• Manufacturer: Weidmuller
• Type: Fuse Terminal Block
• Model: WSI 6

Technical Specifications:

• Version: Screw connection, fuse isolator, for screwable cross-connection, one end without connector
• Rated Voltage: 500 V
• Rated Current: 6.3 A
• Rated Impulse Withstand Voltage: 6 kV
• Power Loss: 1.31 W
• Number of Similar Terminals: 1
• Open Sides: Right
• Type of Mounting: Snap-on
• Clamping Screw: M 3.5
• Material: Wemid
• Color: Dark beige
• Ambient Temperature: -5 to 40 °C
• Dimensions (HxWxD): 60 x 7.9 x 61 mm

Applications:

• Control panel protection
• Industrial electrical distribution
• Fuse-based circuit isolation
