Wenglor CP35MHT80 Laser Distance Sensor
New
In stock1 unitReady to ship
Laser Distance Sensor The Wenglor CP35MHT80 is a laser distance sensor with a 50–350 mm working range, designed for precise non-contact measurement in industrial automation applications.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Working Range | 50 ... 350 mm |
| Measuring Range | 300 mm |
| Light Source | Laser (red) |
| Wavelength | 660 nm |
| Supply Voltage | 18 ... 30 V DC |
| Current Consumption (Ub = 24 V) | 80 mA |
| Measuring Rate | 800 /s |
| Temperature Range | -25 ... 50 °C |
| Analog Output | 0-10 v or 4.20 mA |
| Load Current Voltage Output | 1 mA |
| Current Output Load Resistance | 500 Ohm |
| Interface | RS-232 |
| Housing Material | Plastic, ABS / Plastic, PC |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP67 |

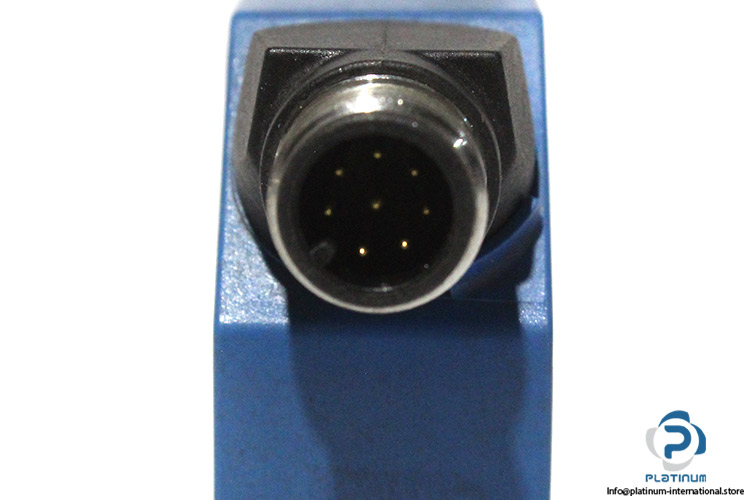

| Connection | M12 ; 8-pin |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101046 |
| Weight | 0,04 |
