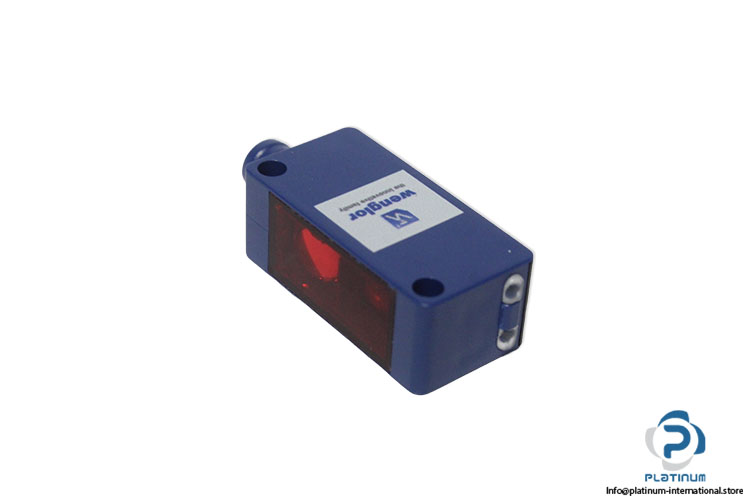

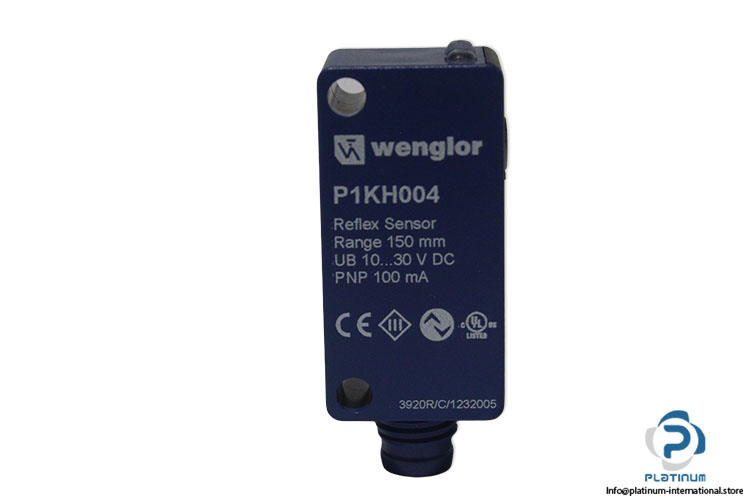

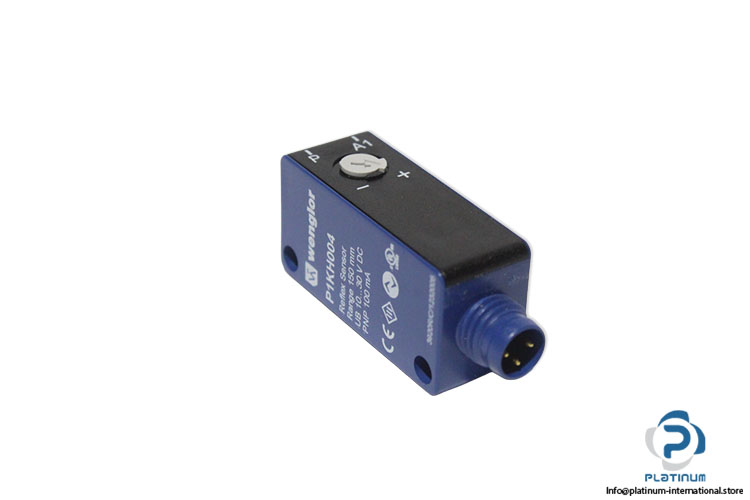

Wenglor P1KH004 Reflex Sensor
New
In stock1 unitReady to ship
Reflex Sensor with Background Suppression The WENGLOR P1KH004 is a compact reflex sensor with a 150 mm sensing range, PNP output, IO-Link communication, and IP67/IP68 protection for reliable industrial object detection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 2476262 |
| Ref No | 266767, 180936-23-000 |
| Range | 150 mm |
| Adjustable Range | 30 ... 150 mm |
| Switching Hysteresis | < 10 % |
| Light Source | Red Light |
| Supply Voltage | 10 ... 30 V DC |
| Supply Voltage with IO-Link | 18 ... 30 V DC |
| Switching Frequency | 1,000 Hz |
| Response Time | 0.5 ms |
| Temperature Drift | < 5 % |
| Temperature Range | -40 ... 60 °C |
| Switching Output Voltage Drop | < 2 V |
| Switching Output/Switching Current | 100 mA |
| Residual Current Switching Output | < 50 µA |
| Interface | IO-Link V1.1 |
| Protection Class | III |
| Housing Material | Plastic |
| Degree of Protection | IP67/IP68 |

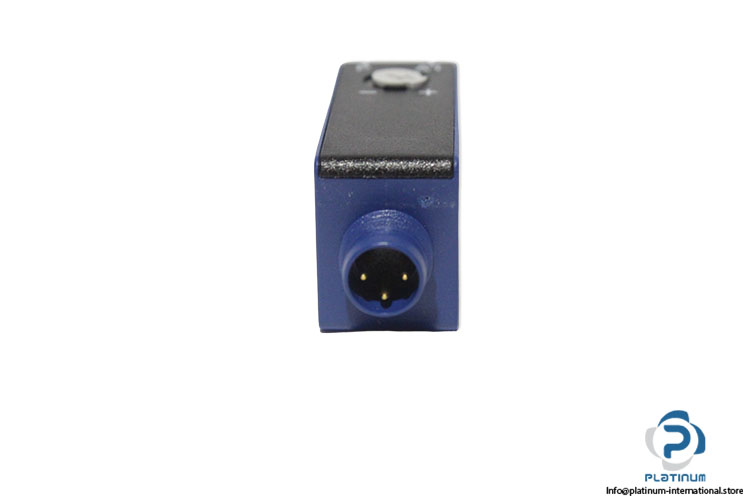

| Connection | M8 × 1; 3-pin |
| Switching Output | PNP configuration, rated up to 100 mA |
| Optic Cover | PMMA |

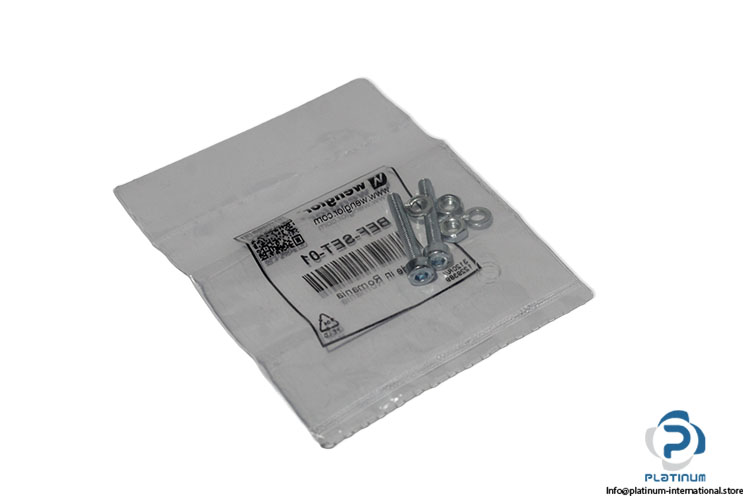

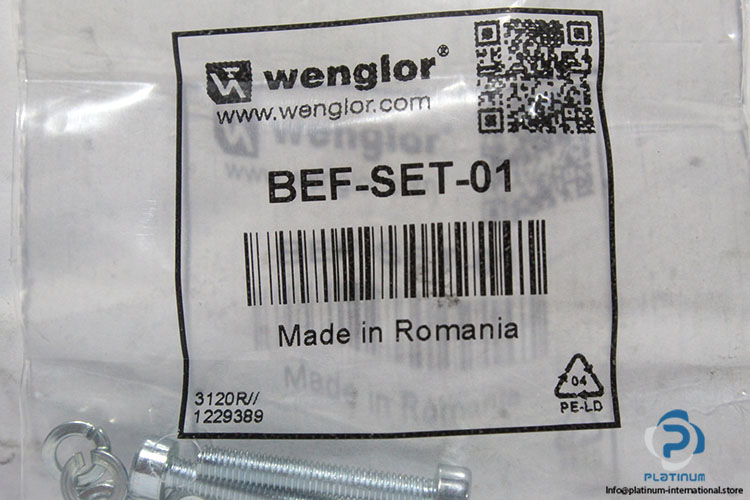

| Attached with | wenglor BEF-SET-01 spring washer |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101018 |
| Weight | 0,02 |
