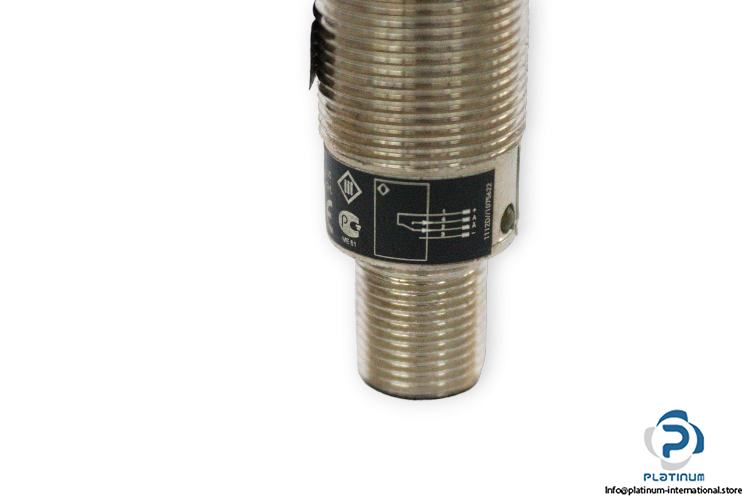

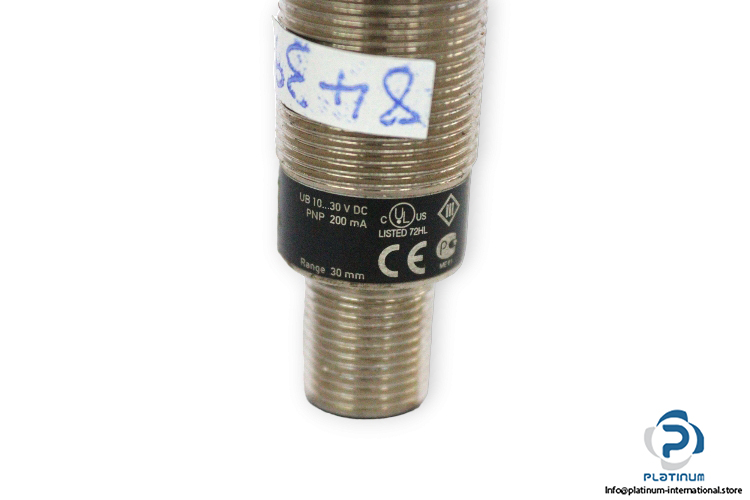

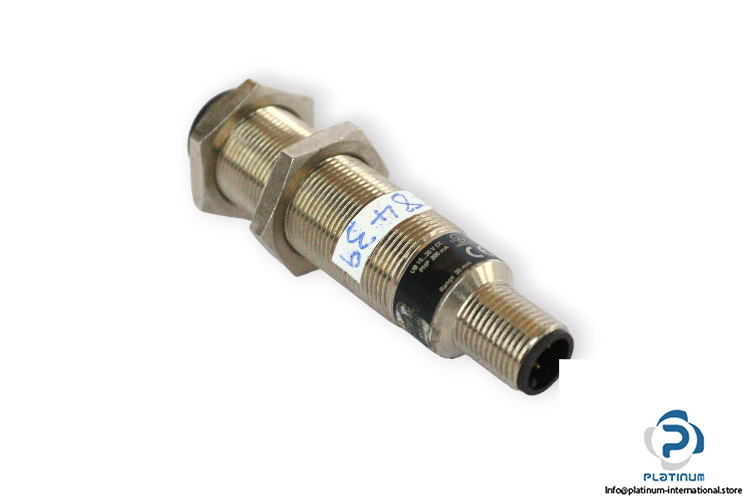

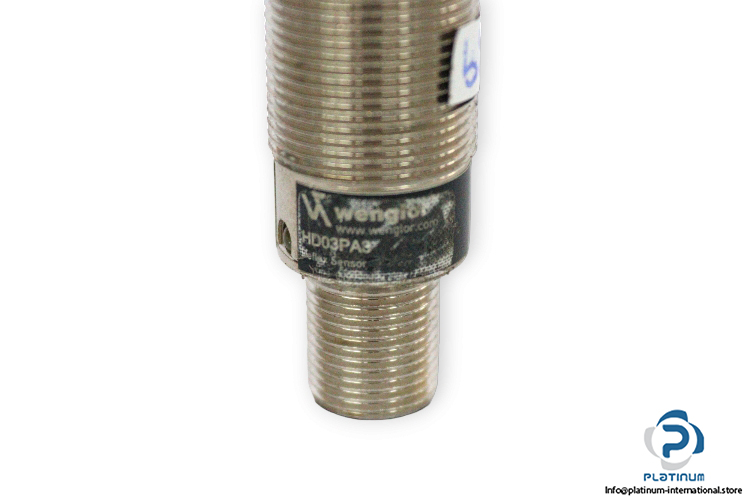

Wenglor HD03PA3 Photoelectric Reflex Sensor
Manufacturer: WENGLOR
Type: Photoelectric Reflex Sensor, Background Suppression
Model: HD03PA3
This sensor detects distance by measuring angles, and particularly good at recognizing objects in front of any background
Sensing Range: 120 mm
Detection range: 60 … 120 mm
Operating Voltage: 10 … 30 V DC
Electrical Design: PNP
Switching Output: Normally open/Normally closed
Current Rating: 200 mA
Connector type: M12, 4-pin
Dimensions: M12,72 mm
Housing Material: Stainless Steel
Operating Temperature: -25 … 65°C
