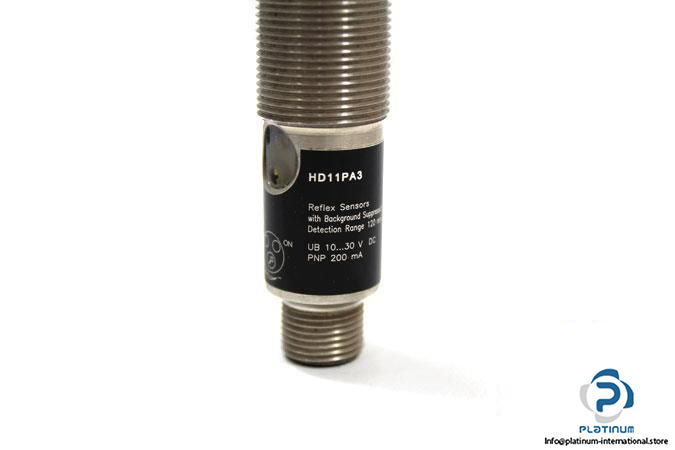

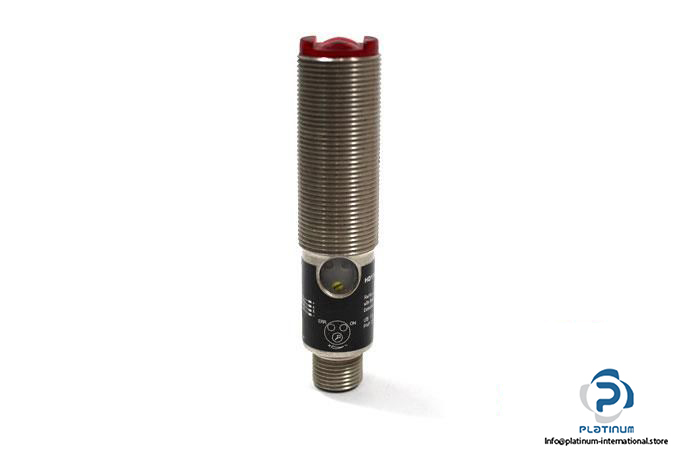

Wenglor HD11PA3 Photoelectric Reflex Sensor

Manufacturer: WENGLOR
Type: Photoelectric Reflex Sensor, Background Suppression
Part Nr.: HD11PA3

This sensor detects distance by measuring angles, and particularly
good at recognizing objects in front of any background
Sensing range: 120 mm
Detection range: 60 … 120 mm
Response time: 833 µs
Operating Voltage: 10 … 30 V DC
Current consumption (24 V): < 30 mA
Output current: 200 mA
Switching frequency: 600 Hz
Electrical design: PNP
Switching output: Normally open/Normally closed
Light source: Red light
Light spot diameter: 2.5 … 5 mm
Adjustment: Potentiometer

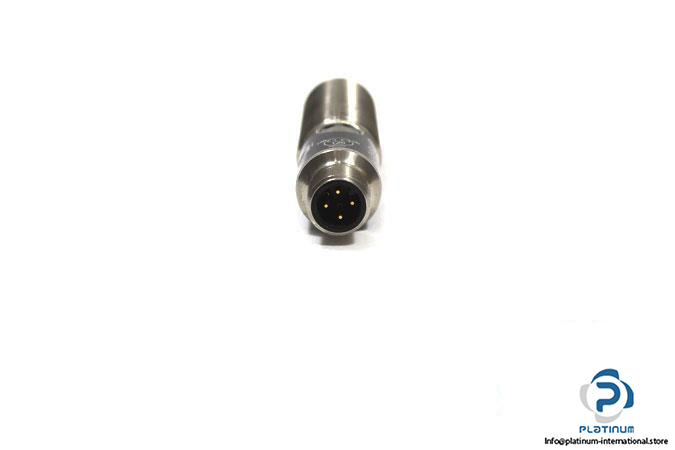

Connector type: M12, 4-pin
Protection class: III
Enclosure rating: IP67
Ambient Operating temperature: -25 … 60°C
Diameter, housing length: 18, 72 mm
Housing: Threaded type
Housing material: Stainless steel

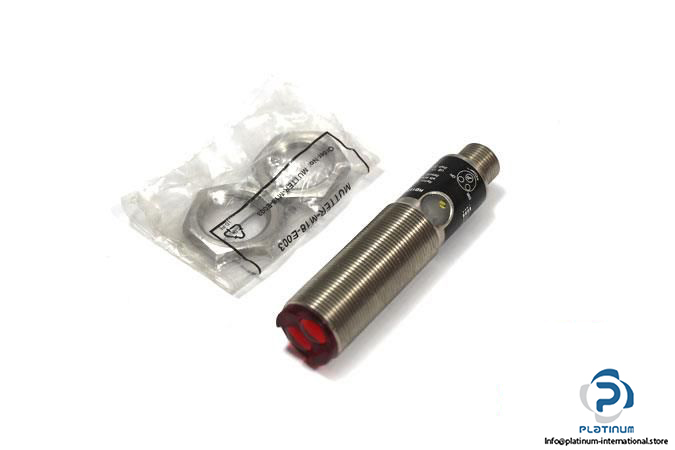

Supplied items: 2 lock nuts
