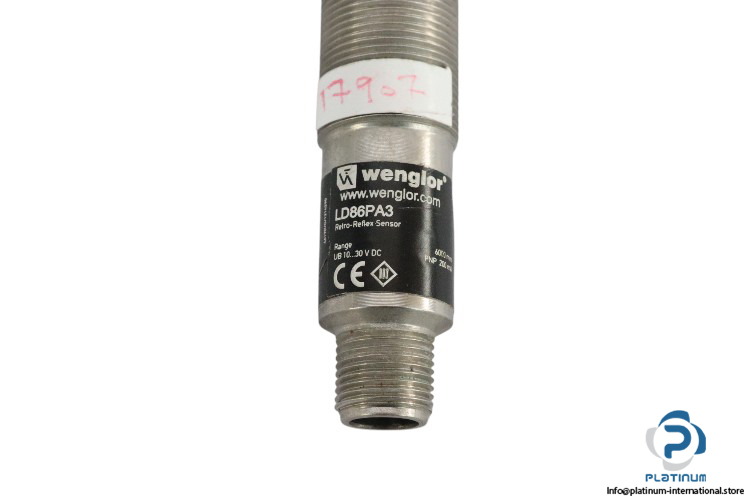

Wenglor LD86PA3 Retro-Reflex Sensor
The Wenglor LD86PA3 Retro-Reflex Sensor offers a 6000 mm range, 1 kHz switching frequency, and IP67 protection, providing high-speed and reliable object detection for industrial applications.
Wenglor LD86PA3 Retro-Reflex Sensor
The Wenglor LD86PA3 Retro-Reflex Sensor is a highly efficient retro-reflex sensor designed for precise object detection over long distances. With a sensing range of up to 6000 mm, this sensor is ideal for industrial applications that require fast and accurate measurements. The sensor features a red light source, PNP output configuration, and a response time of 500 μs, ensuring high-speed detection. Its IP67 protection class guarantees reliability even in harsh environments, while the stainless steel housing ensures durability in demanding conditions.
- Manufacturer: Wenglor
- Type: Retro-Reflex Sensor
- Model: LD86PA3
Technical Specifications:
- Supply Voltage: 10…30 V DC
- Current Consumption: 40 mA
- Output Configuration: PNP
- Switching Output: Normally open (NO) / Normally closed (NC)
- Switching Frequency: 1 kHz
- Response Time: 500 μs
- Switching Output Voltage Drop: 25 V
- PNP Switching Output/Switching Current: 200 mA
- Range: 6000 mm
- Light Source: Red Light
- Protection Class: IP67
- Setting Method: Potentiometer
- Housing Material: Stainless Steel
- Connection: M12x1, 4 pin
- Temperature Range: 10…60 °C
The Wenglor LD86PA3 Retro-Reflex Sensor is an ideal solution for applications requiring high-speed and long-range detection. With its durable stainless steel housing, high switching frequency, and excellent environmental protection, this sensor ensures reliable and accurate detection in challenging industrial environments.
