WIB 3001 Angular Contact Ball Bearing
New
In stock1 unitReady to ship

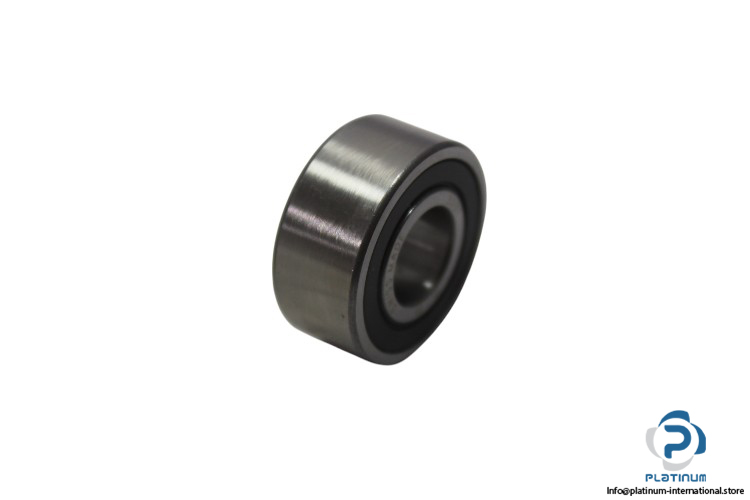

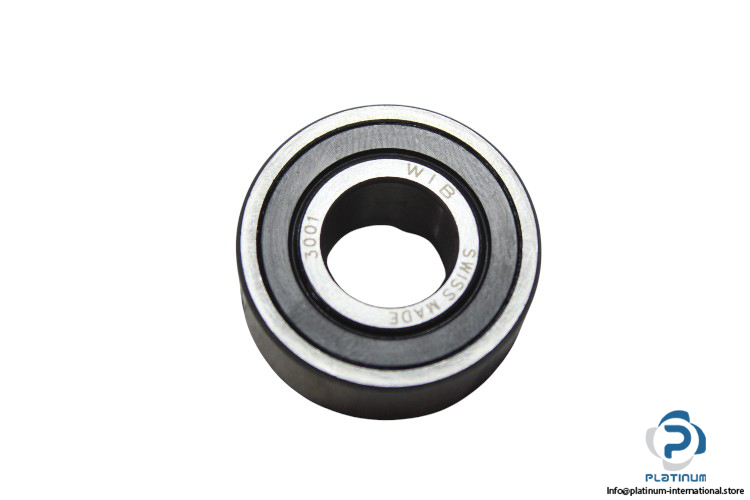

Angular Contact Ball Bearing
WIB 3001 Angular Contact Ball Bearing features a 12 mm bore diameter, 28 mm outer diameter, and 12 mm width. Designed for high precision with a dynamic load rating of 6.54 kN and a limiting speed of 32,000 rpm with oil lubrication.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
WIB Angular Contact Ball Bearing 3001
The WIB Angular Contact Ball Bearing 3001 is designed to handle both radial and axial loads, ensuring smooth operation with high precision in various applications.
Manufacturer: WIB
Type: Angular Contact Ball Bearing
Model: 3001
| Bore Diameter (d) | 12 mm |
| Outer Diameter (D) | 28 mm |
| Width (B) | 12 mm |
| Angle | 25 degrees |
| Dynamic Load Rating (Cr) | 6.54 kN |
| Static Load Rating (C0r) | 4.21 kN |
| Limiting Speed (Oil, Grease) | 32,000 rpm, 26,000 rpm |
