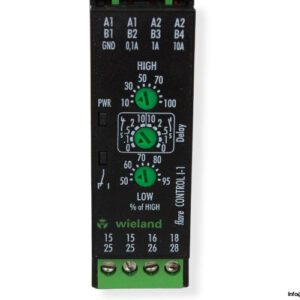

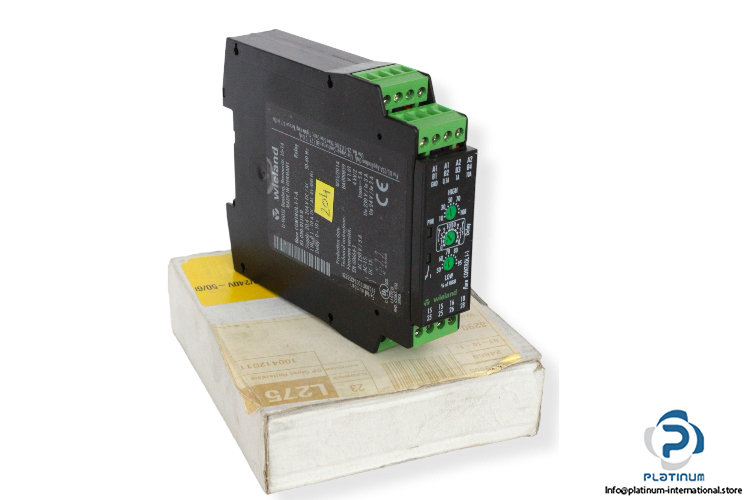

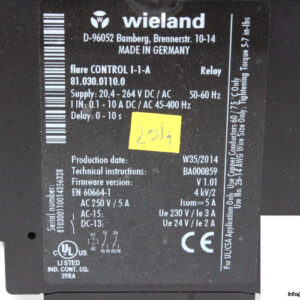

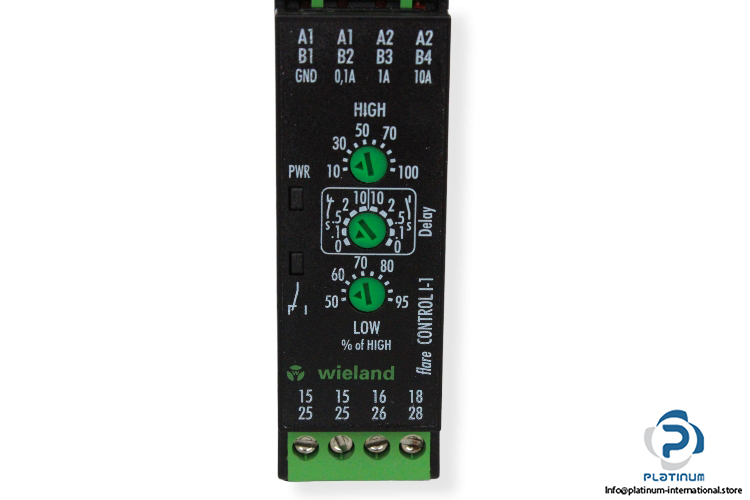

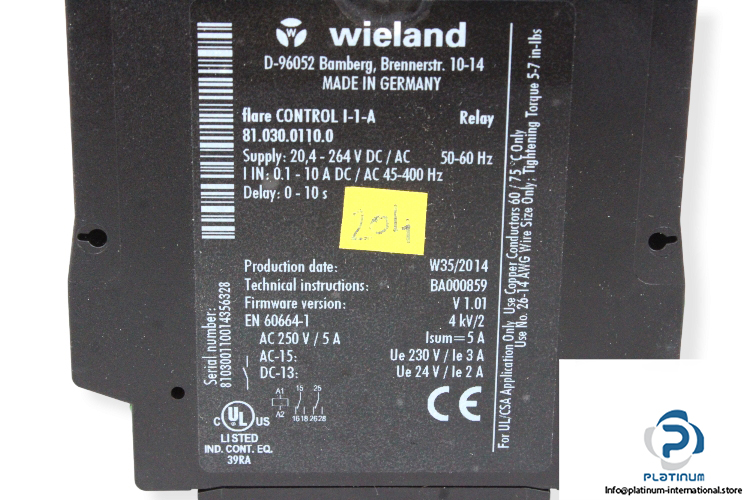

Wieland 81.030.0110.0 Monitoring Relay Flare Control I-1-A

Manufacturer: Wieland

Type: Monitoring Relay Flare Control I-1-A

Model: 81.030.0110.0



Supply voltage: 20.4 … 264 V DC/AC

Rated frequency: 50 … 60 Hz

Rated consumption power: 4 VA, 2 W

Input current range: 0.1 … 10 A

Current Sum: 5 A

Rated frequency range of the measured value: 45 … 400 Hz

Isolation voltage: 2 KV

Time delay range: 0 … 10s

connection type: screw connection

mounting method: DIN rail

Output

number of change-over contacts: 2

Contact current: 5 A

Contact voltage: 250 V AC

AC-15: 230 V AC, 3 A

DC-13: 24 V DC, 2 A



Protection class: IP20

Operation temperature: -20 … +55°C

Dimension: 114 x 22.5 x 96.5 mm
