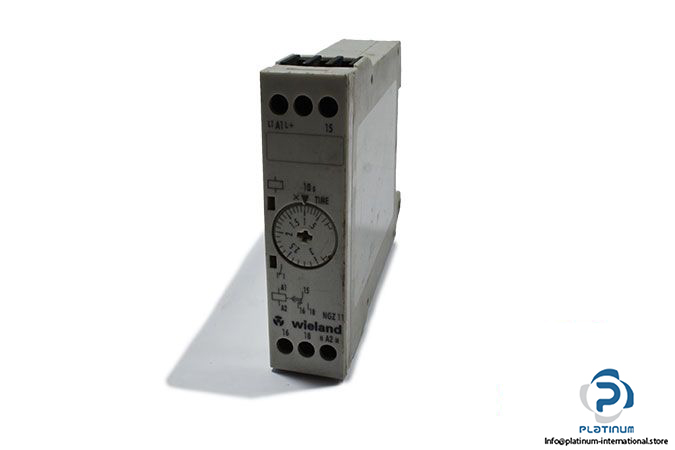

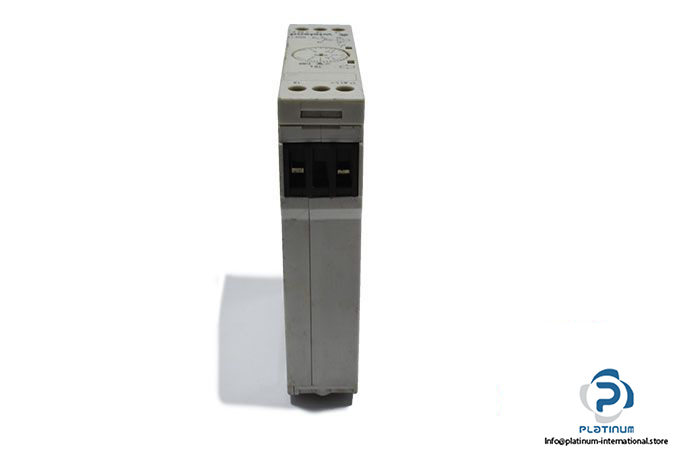

Wieland NGZ 11 Timer AND Switching Relay

Manufacturer: WIELAND

Type: Timer and Switching Relay

Model: NGZ 11

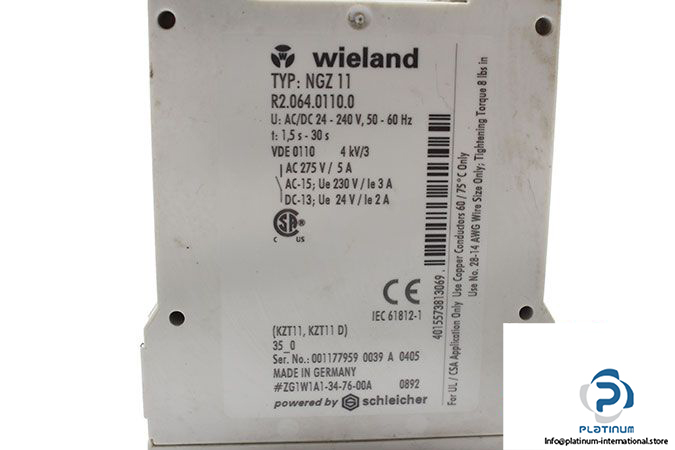

Part No.: R2.064.0110.0

Input Circuit:

Rated Voltage: 24 … 240 V AC/DC

Rated Consumption AC: 3.5 VA / 1.7 W

Rated Consumption DC: 1.6 W

Rated Frequency: 50 … 60 Hz

Rated Current: 1 mA

Output Circuit:

Contact Assignment: 1 Change-over contacts

Rated Operating Voltage: 24 … 240 V AC/DC

Rated Value for Limiting Continuous Current: 5 A

Min. Contact Load: ≥ 5 V AC/DC / ≥ 10 mA

Protection Degree Housing / Terminals: IP 40 / IP 20

ON-Delay Time: 1.5 … 30 s

Ambient Temperature: –25 … +60 °C

Dimensions: 22.5 X 98 X 83 mm

Weight: 0.1 Kg
