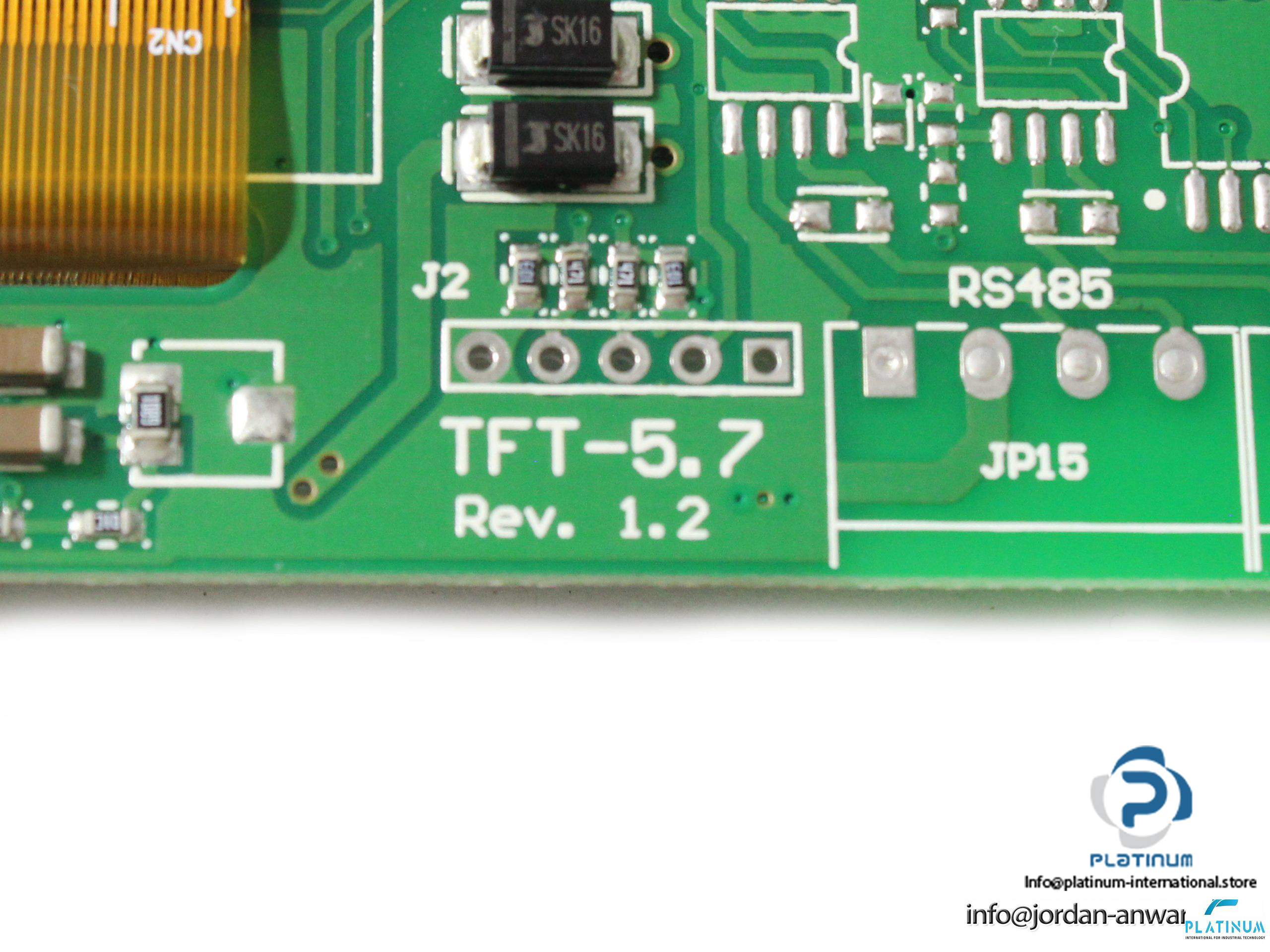

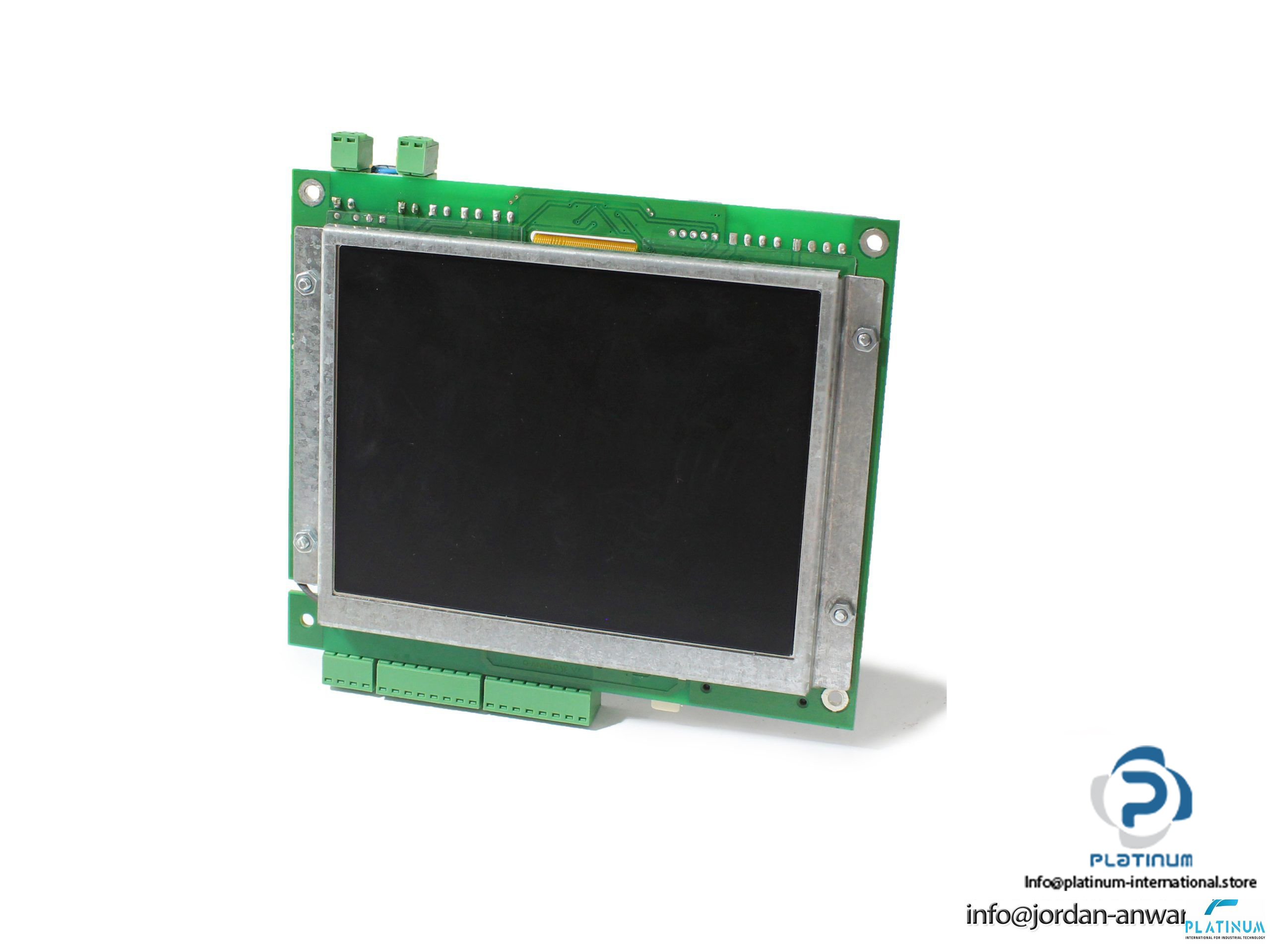

Winstar TFT-5.7 LCD Display

Manufacturer: WINSTAR

Type: Lcd Display

Model: TFT-5.7



Size: 5.7 inch

Dot Matrix: 320 × RGB × 240 (TFT) dots

Module Dimension: 160.0 X 109.0 X 15.0 mm

Active Area: 115.20 X 86.40 mm

Dot Pitch: 0.12 X 0.36 mm

LCD Type: TFT, Normally White, Transmissive

View Direction: 12 o’clock

Gray Scale Inversion Direction: 6 o’clock

Aspect Ratio: 4:3

Backlight Type: LED, Normally White

Touch Panel: Without touch panel

Surface: Glare

Operating Temperature: 0 … 70 ℃

Weight: 0.26 Kg
