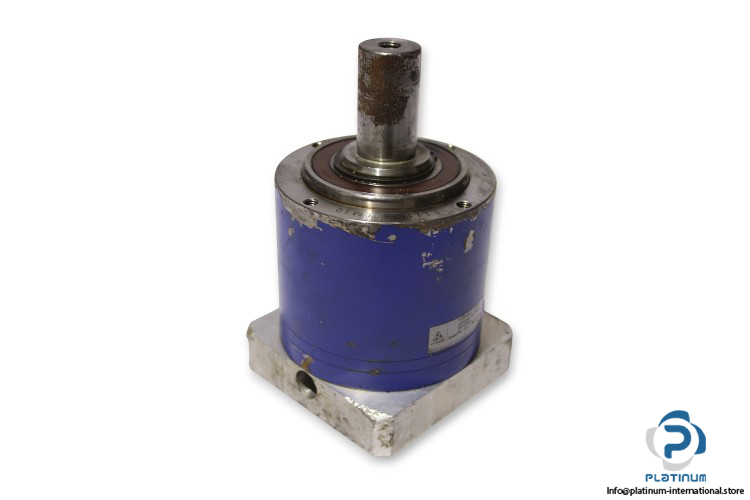

Wittenstein Alpha LP 120-M01-7-110-000 Planetary Gearbox
699,99$
Precision Planetary Gearbox
Wittenstein Alpha LP120 precision planetary gearbox with 7:1 ratio, high torque capacity, flange mounting, and IP64 protection for advanced motion control systems. Perfect for servo motor applications and precision industrial automation systems.Wittenstein Alpha LP120-M01-7-110-000 Precision Planetary Gearbox
The Wittenstein Alpha LP120-M01-7-110-000 precision planetary gearbox from the LP series is engineered for high-performance motion control applications requiring compact design, high torque density, and reliable positioning accuracy.
Manufacturer: Wittenstein Alpha / Artisan
Type: Precision Planetary Gearbox

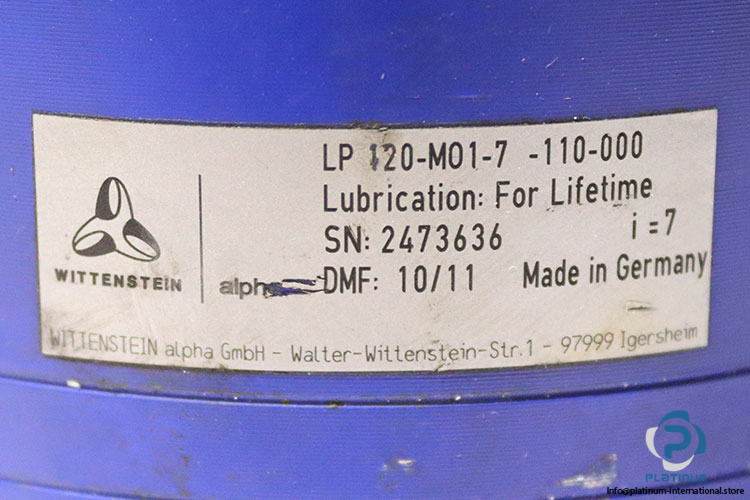

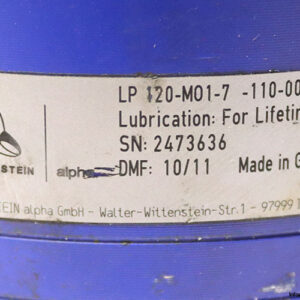

Model: LP120-M01-7-110-000
Serial No.: 2473636
Series: LP
Ideal for servo motor integration, CNC machinery, robotics, packaging systems, and high-precision automation equipment requiring stable torque transmission and compact installation.
Please contact us via Ask for assistance with any inquiries.

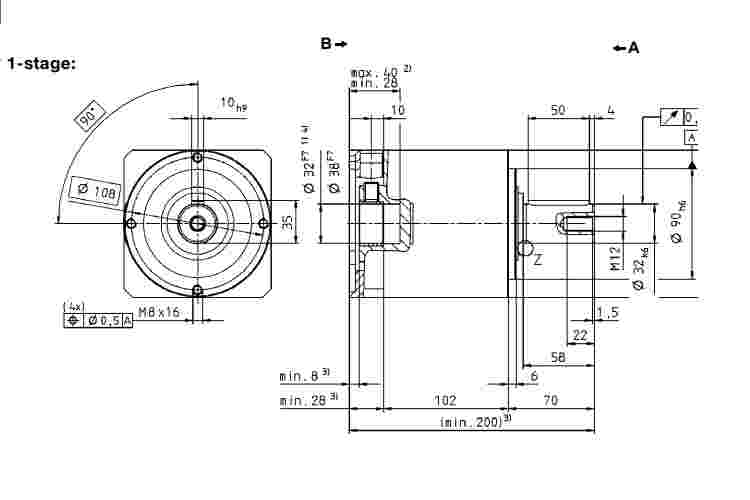

| Size | 120 |
| Ratio [i] | 7:1 |
| No. of Stage | 1 |
| Shaft | 32 mm |
| Hollow Shaft | 19 mm |
| Flange Diameter | 120 mm |
| Max. Acceleration Torque (T2B) | 250 Nm |
| Nominal Output Torque (T2N) | 125 Nm |
| Emergency Stop Torque | 480 Nm |
| Nominal Input Speed | 2600 rpm |
| Max. Input Speed | 4800 rpm |
| Max. Axial Force | 4000 N |
| Ambient Temperature | -15 to 40 °C |
| Output Type | Solid Shaft with Keyway |
| Lubrication | Lubricated for Life |
| Direction of Rotation | Motor and Gearhead Same Direction |
| Mounting Type | Flange Mount |
| Protection Class | IP64 |
