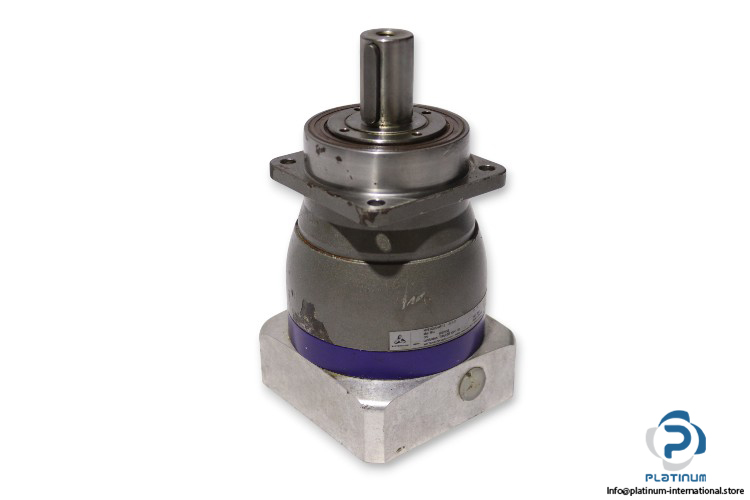

Wittenstein Alpha NPS 025S-MF1-5-1E1-1S Planetary Gearbox
333,33$
Precision Planetary Gearbox
High-performance planetary gearbox with 25 mm frame, 5:1 ratio, and 160 Nm torque capacity. Compact flange-mounted design with IP65 protection and lifetime lubrication for reliable motion control and automation systems.Wittenstein Alpha NPS025S-MF1-5-1E1-1S Precision Planetary Gearbox
The Wittenstein Alpha NPS025S-MF1-5-1E1-1S Precision Planetary Gearbox is engineered for outstanding accuracy, efficiency, and durability in high-performance motion control systems. Designed with a 25 mm frame size and a 5:1 gear ratio, this gearbox delivers exceptional torque transmission and minimal backlash, ensuring precise positioning and smooth operation even under demanding industrial conditions.
Its compact, flange-mounted design with solid shaft output provides reliable power transfer and long service life. The NPS series is widely used in robotics, packaging machines, automation systems, and servo drive applications that require superior precision and repeatable performance.
Manufacturer: Wittenstein Alpha / artisantg
Type: Precision Planetary Gearbox

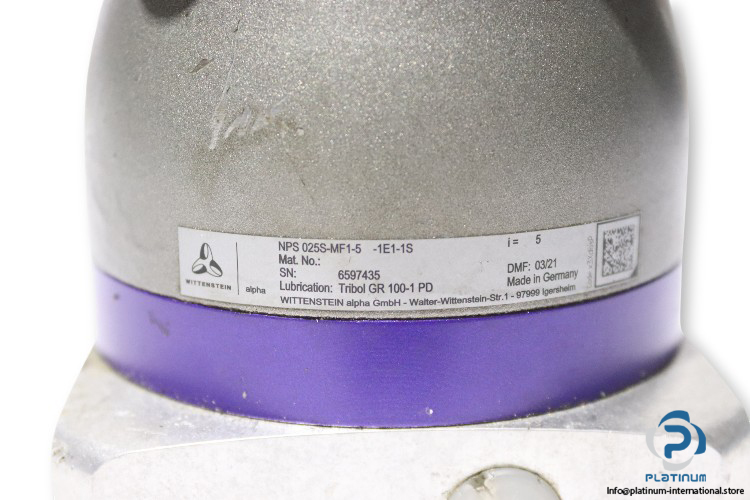

Model: NPS025S-MF1-5-1E1-1S
Serial No.: 6597435
Series: NPS

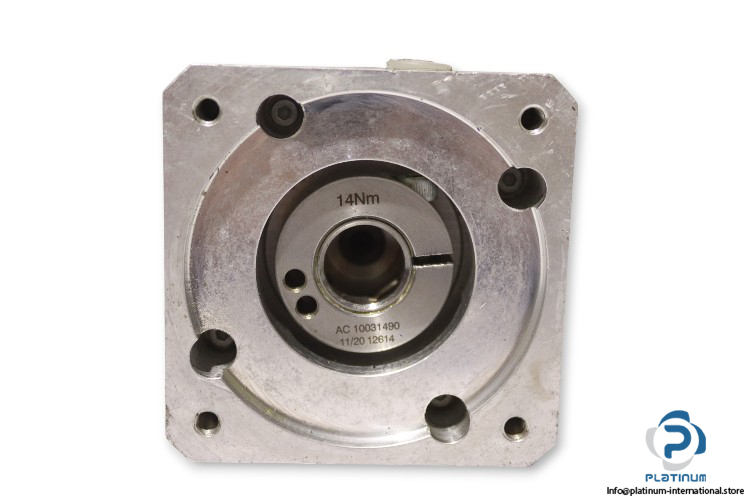

Flange Part No.: AC 10031490
Code: 11/20 12614
Built with German precision and long-life lubrication, the NPS025S-MF1-5-1E1-1S gearbox offers minimal maintenance and maximum uptime. Its IP65 protection ensures resistance to dust and moisture, making it suitable for challenging environments. Ideal for engineers seeking high torque density and reliability in compact designs.
| Frame Size | 25 mm |
| Ratio [i] | 5:1 |
| No. of Stage | 1 |
| Shaft | 22 mm |
| Hollow Shaft | 19 mm |
| Flange Diameter | 90 mm |
| Max. Torque T2a | 160 Nm |
| Max. Acceleration Torque T2B | 100 Nm |
| Adapter Flange Torque | 14 Nm |
| Emergency Stop Torque | 190 Nm |
| Permitted Average Input Speed | 3000 rpm |
| Max. Input Speed | 7000 rpm |
| Max. Axial Force | 3350 N |
| Max. Lateral Force | 4200 N |
| Ambient Temperature | -15 to 40 °C |
| Output Type | Solid Shaft with Keyway |
| Lubrication | Tribol GR 100-1 PD (Lubricated for life) |
| Direction of Rotation | In- and output same direction |
| Mounting Type | Flange Mount |
| Protection Class | IP65 |
