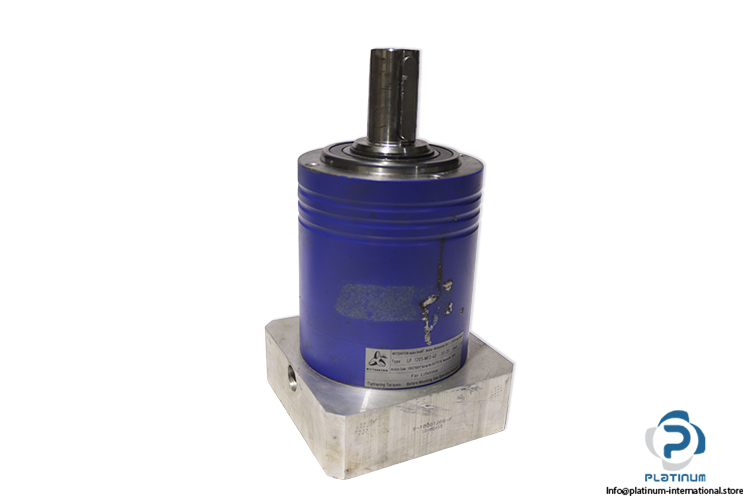

Wittenstein Alpha LP 120S-MF2-40-1I1-3S Planetary Gearbox
Planetary Gearbox
Wittenstein Alpha / Artisan LP 120S-MF2-40-1I1-3S two-stage planetary gearbox with 40:1 ratio, high torque capacity, flange mounting, and lifetime lubrication for precision automation systems. Recommended for servo motor-driven machinery and high-precision motion control applications.Wittenstein Alpha / Artisan LP 120S-MF2-40-1I1-3S Planetary Gearbox
The LP 120S-MF2-40-1I1-3S planetary gearbox from Wittenstein Alpha / Artisan is engineered for high precision motion control and heavy-duty industrial drive applications. Designed with a two-stage configuration and optimized torque performance, this gearbox ensures reliable power transmission and long service life.
Manufacturer: Wittenstein Alpha / Artisan
Type: Planetary Gearbox
Model: LP 120S-MF2-40-1I1-3S
Series: LP

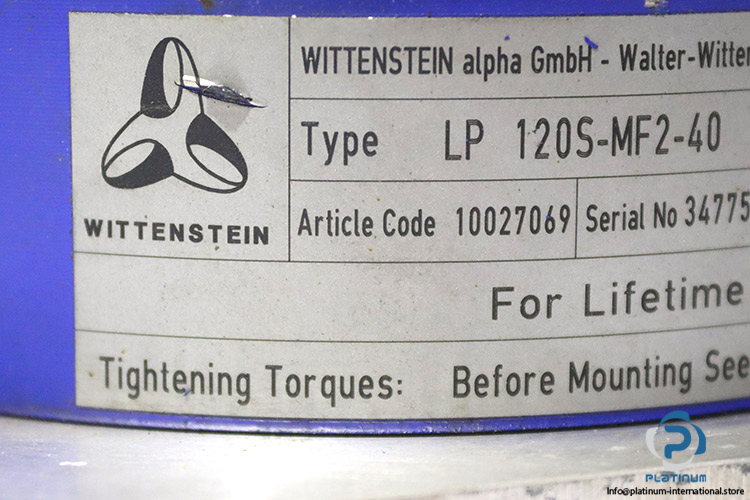

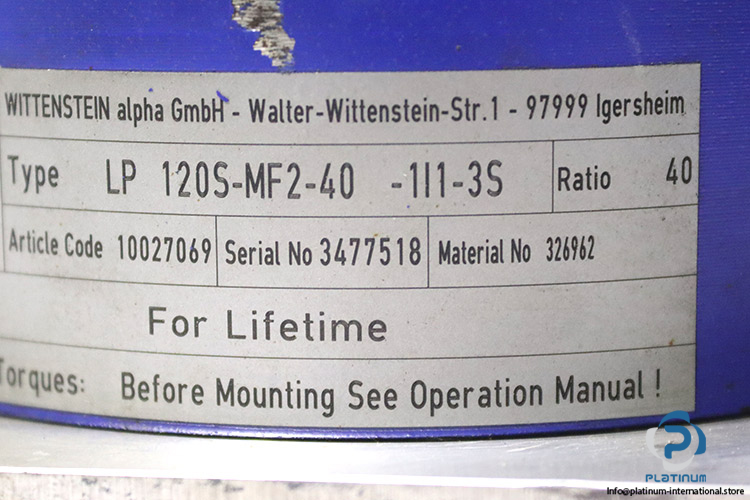

Article Code: 10027069
Serial Number: 3477518
Material No.: 326962

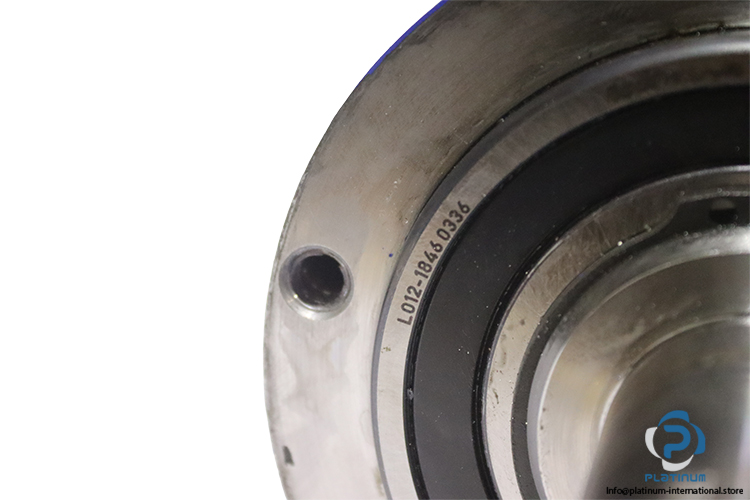

Marking on Bearing: L012-18460336

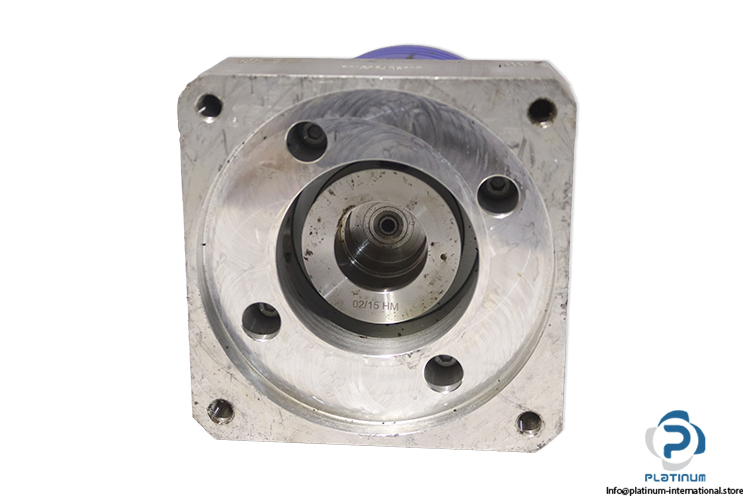

Additional Marking: 02/15 HM
Ideal for servo motor integration, CNC machinery, robotics, and precision automation systems.
Please contact us via Ask for assistance with any inquiries.
| Size | 120 |
| No. of Stage | 2 |
| Ratio i | 40:1 |
| Shaft Diameter | 32 mm |
| Hollow Shaft | 36 mm |
| Flange Diameter | 140 mm |
| Max. Acceleration Torque (T2B) | 305 Nm |
| Nominal Output Torque (T2N) | 155 Nm |
| Emergency Stop Torque | 480 Nm |
| Nominal Input Speed | 2600 rpm |
| Max. Input Speed | 4800 rpm |
| Max. Axial Force | 4000 N |
| Mounting Style | Flange mounting (square flange) |
| Output Shaft | Solid shaft |
| Lubrication | œFor Lifetime (factory lubricated, maintenance-free) |
| Direction of Rotation | Motor and gearhead same direction |
| Ambient Temperature | -15 to 40 °C |
| Protection Degree | IP64 |
